560 (126-560-100) - Cub Cadet Walk-Behind Mower (1986) Hi-Wheel Self-Propelled Mower Part 2 Parts Diagram

Walk-Behind Mower

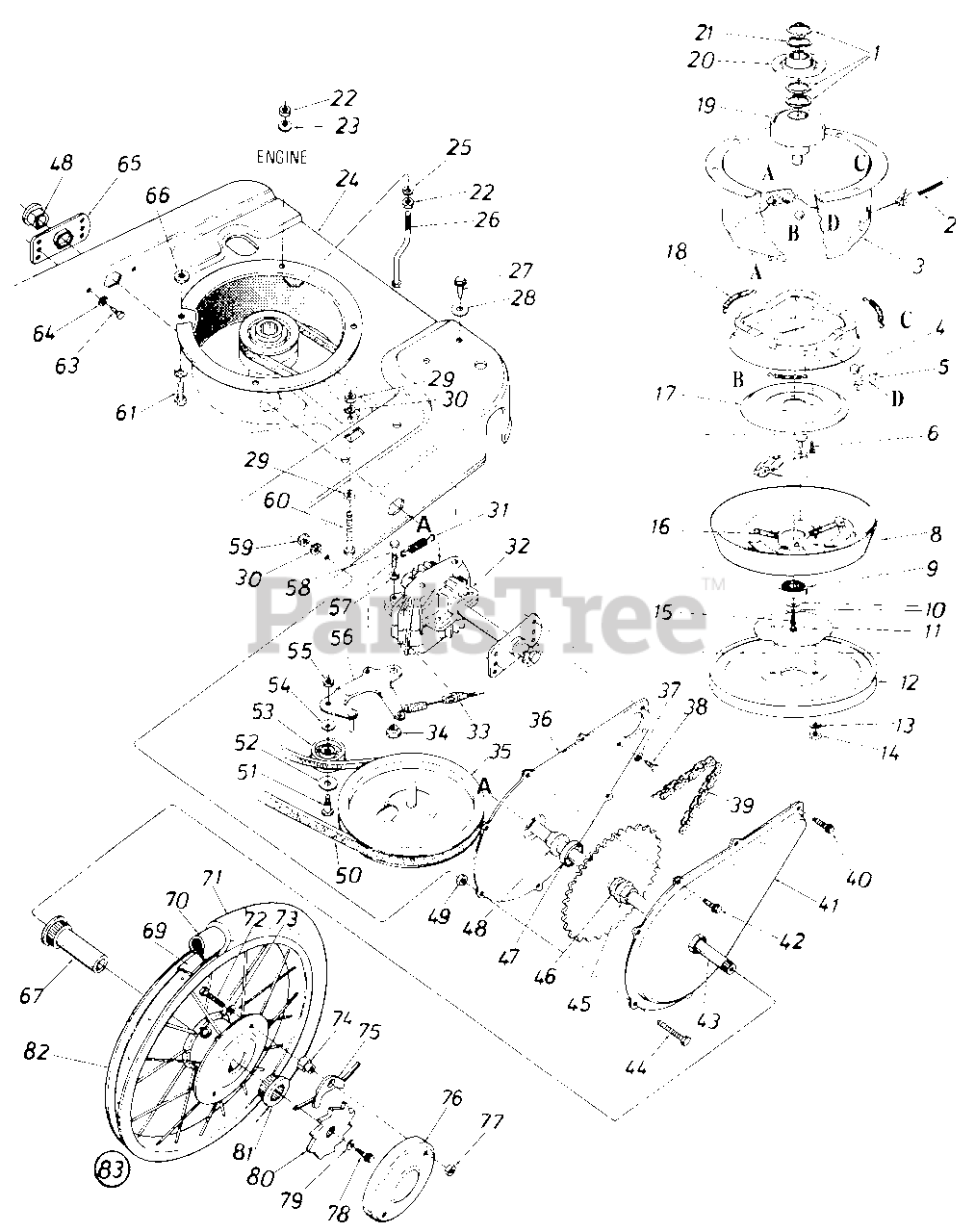

Hi-Wheel Self-Propelled Mower Part 2 Parts Diagram

  • Title

1

Cub Cadet 736-0405

WASHER

$

$

Not available

2

Cub Cadet 746-0400

CABLE-CLUTCH

$

$

Not available

3

Cub Cadet 16509

HOUSING-CLUTCH

$

$

Not available

4

Cub Cadet 741-0326

BALL-STEEL

$

$

Not available

5

Cub Cadet 731-0520

BALL-BLOCK

$

$

Not available

6

Cub Cadet 710-0875

SCREW-HEX WASH 1/4-20X.75

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 16508

HOUSING ASSY-W/FPA

$

$

Currently unavailable

9

Cub Cadet 741-0124

BEARING-BALL
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 14302

HOUSING ASSY-W/FPA

$

$

Currently unavailable

12

Cub Cadet 756-0483

PULLEY-5/8-V

$

$

Not available

13

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0328

NUT-HEX 3/8-24
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

15

Cub Cadet 710-0818

SCREW-HEX 3/8-24 X 2.00

$6.99

$

In Stock, only 1 left!

0

16

Cub Cadet 732-0527

SPRING-COMPRESSION

$

$

Not available

17

Cub Cadet 14305

CONE-BRAKE CUP

$

$

Currently unavailable

18

Cub Cadet 732-0545

SPRING-EXTENSION
(Superseded to 932-0545)

$

$

Not available

19

Cub Cadet 756-0482

ADAPTER-FIXED PULLEY

$

$

Not available

20

Cub Cadet 756-0481

PULLEY HALF
(Superseded to 956-0481A)

$

$

Not available

21

Cub Cadet 736-0408

WASHER-WAVE
(Superseded to 936-0447)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 16505

FRAME-HI WHEEL

Note: Color Code 499

$

$

Currently unavailable

25

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0973

GUARD-BELT-5/16 BOLT

$

$

Not available

27

Cub Cadet 710-0603

SCREW-HEX WASH HD 5/16-18X1/2

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

30

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

31

Cub Cadet 732-0357

SPRING-EXTENSION
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

32

Note: See Transmission Breakdown

$

$

Not available

33

Cub Cadet 746-0463

CABLE-CLUTCH

$

$

Not available

34

Cub Cadet 738-0440

SPACER-SHLD

$5.99

$

In Stock, only 4 left!

0

35

Cub Cadet 756-0330

PULLEY
(Superseded to 756-0330A)

$

$

Not available

36

Cub Cadet 16504

COVER-CHAIN-45T

$

$

Not available

37

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

38

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 713-0257

#48 CHAIN 1/2 PITCH X 51 LINKS

$

$

Not available

40

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 16503

CASE-CHAIN-45T

$

$

Not available

42

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 713-0402

AXLE ASSY-RR

$

$

Not available

44

Cub Cadet 710-0281

SCREW-HEX 1/4-28 X .88

$6.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 741-0481

BEARING-HEX FLANGE

$

$

Currently unavailable

46

Cub Cadet 736-0256

WASHER-FL-.640 ID X .94 OD
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 748-0313

SPACER-.630 X 1.250 OD

$3.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 741-0413

BEARING-HEX FLANGE

$9.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 712-0314

NUT-HEX JAM 1/4-28

$3.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 754-0327

BELT-V- 3/8 X 28
(Superseded to 954-0327)

$

$

Not available

51

Cub Cadet 738-0691

SCREW-SHLD
(Superseded to 938-0691)

$

$

Not available

52

Cub Cadet 736-0344

WASHER-FL .995 X .032

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 741-0482

BEARING-NEEDLE
(Superseded to 741-0875)

$

$

Not available

Cub Cadet 756-0447

KIT-PULLEY
(Superseded to 753-0518)

$27.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

56

Cub Cadet 16501

BRACKET ASSY-IDLER

$

$

Not available

57

Cub Cadet 736-0722

WASHER-LOCK-#10

$6.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-0106

SCREW-HEX 1/4-20 X 1.25

$3.99

$

In Stock, Qty 12

0

59

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 710-0501

SCREW-HEX 1/4-20 X 2.00

$7.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 710-0654

SCREW-HEX R
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

65

Cub Cadet 16500

BEARING-CUP HEX
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 736-0185

WASHER-FL-.406 ID X .74 OD X .063

$3.99

$

In Stock, Qty 20+

0

67

Cub Cadet 741-0485

BEARING-FLANGE

$

$

Not available

69

Cub Cadet 734-1400

RIM STRIP

$

$

Not available

70

Cub Cadet 734-1397

TUBE-16 X 2.12

$

$

Not available

71

Cub Cadet 734-1396

TIRE-16 X 2.125

$

$

Not available

72

Cub Cadet 710-0376

SCREW-HEX 5/16-18 X 1.00

$3.99

$

In Stock, Qty 20+

0

73

Cub Cadet 736-0104

WASHER-INTERN L 5/16
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 712-0329

NUT-HEX 5/16-18 SPEC

$

$

Not available

75

Cub Cadet 748-0315

PAWL

$15.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 14967

COVER-WHEEL

$

$

Not available

77

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 710-0642

SCREW-HEX HD TAP 1/4-20 X 7.5

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

80

Cub Cadet 748-0312

RACHET-WHEEL

$

$

Not available

81

Cub Cadet 741-0483

BEARING-FLANGE

$

$

Not available

82

Cub Cadet 734-1399

WHEEL RIM 16.0 X 2.1

Note: ]

$

$

Not available

83

Cub Cadet 734-1398

WHEEL ASSY W/TIRE 16 X 2.12

$

$

Not available
