56 SRQ (954055011-D) - Husqvarna Walk-Behind Mower (1992-01) 22" Rotary Lawn Mower (View B) Parts Diagram

Walk-Behind Mower

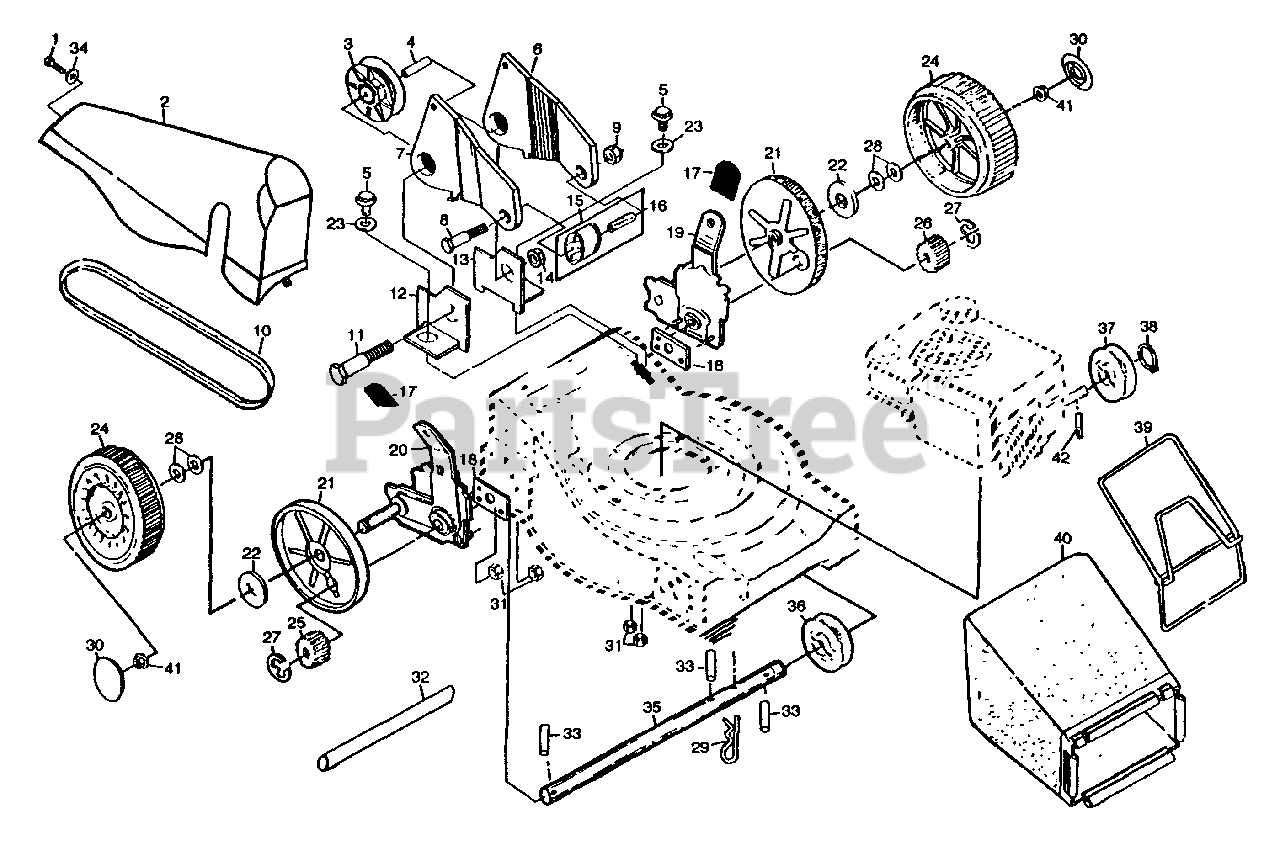

22" Rotary Lawn Mower (View B) Parts Diagram

  • Title

1

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

2

Husqvarna 532850833

Drive Cover

$

$

Not available

3

Husqvarna 532128829

Idler Pulley
(Superseded to 532088516)

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532850037

Pulley Spacer

$

$

Not available

5

Husqvarna 532086779

Hex Head Machine Screw 1 /4-20 x 3/4

$

$

Not available

6

Husqvarna 532125226

Idler Bracket (Left)

$

$

Not available

7

Husqvarna 532125227

Idler Bracket (Right)
(Superseded to 532138853)

$

$

Not available

8

Husqvarna 874350424

Hex Head Screw 1/4-20 x 1-1/2
(Superseded to 874780424)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532050962

Locknut 1/4-20

$

$

Not available

10

Husqvarna 532134109

Drive Belt

$28.99

$

Usually ships in 3-10 days

0

11

Husqvarna 874760524

Hex Head Bolt 5/16-18 x 1-1/2
(Superseded to 874780524)

$

$

Not available

12

Husqvarna 532138862

Pivot Bracket (Right)

$

$

Not available

13

Husqvarna 532138861

Pivot Bracket (Left)

$

$

Not available

14

Husqvarna 532063124

Locknut 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532129275

Idler Assembly Kit

Note: (Includes Key No. 16)

$

$

Not available

16

Husqvarna 532088576

Idler Spacer

$8.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532087877

Selector Knob

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 532125230

Spacer Plate

$

$

Not available

19

Husqvarna 532128700

Selector Assembly (Right)

$

$

Not available

20

Husqvarna 532128701

Selector Assembly (Left)

$

$

Not available

21

Husqvarna 532088080

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

22

Husqvarna 532067725

Washer

$7.49

$

In Stock, Qty 20+

0

23

Husqvarna 532070543

Flat Washer

$

$

Not available

24

Husqvarna 532800334

Wheel & Tire Assembly 9.0 x 2.0
(Superseded to 532193139)

$66.99

$

In Stock, Qty 5

0

25

Husqvarna 532850016

Drive Pinion (Right)
(Superseded to 532165096)

$

$

Not available

26

Husqvarna 532850017

Drive Pinion (Left)
(Superseded to 532165097)

$12.99

$

Usually ships in 3-10 days

0

27

Husqvarna 812000003

E-Ring

$

$

Not available

28

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

29

Husqvarna 532085179

Retainer Clip

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532850845

Hubcap

$

$

Not available

31

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

32

Husqvarna 532850373

Drive Shaft Cover

$

$

Not available

33

Husqvarna 532851980

Drive Pawl
(Superseded to 532164795)

$

$

Not available

34

Husqvarna 532004802

Washer

$2.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532128488

Drive Shaft

$

$

Not available

36

Husqvarna 532088082

Driven Pulley

$

$

Not available

37

Husqvarna 532850027

Drive Pulley

$

$

Not available

38

Husqvarna 812000030

Retaining Ring

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532800393

Catcher Frame Assembly
(Superseded to 532088614)

$54.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532800386

Grass Bag Assembly
(Superseded to 532134048)

$

$

Not available

41

Husqvarna 532083923

Flange Hex Locknut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

UNKNOWN

$

$

Not available

Husqvarna 532850209

Decal "Clean Under"

$

$

Not available
