56 SRQ (954055011-C) - Husqvarna Walk-Behind Mower (1992-01) 22" Rotary Lawn Mower (View A) Parts Diagram

Walk-Behind Mower

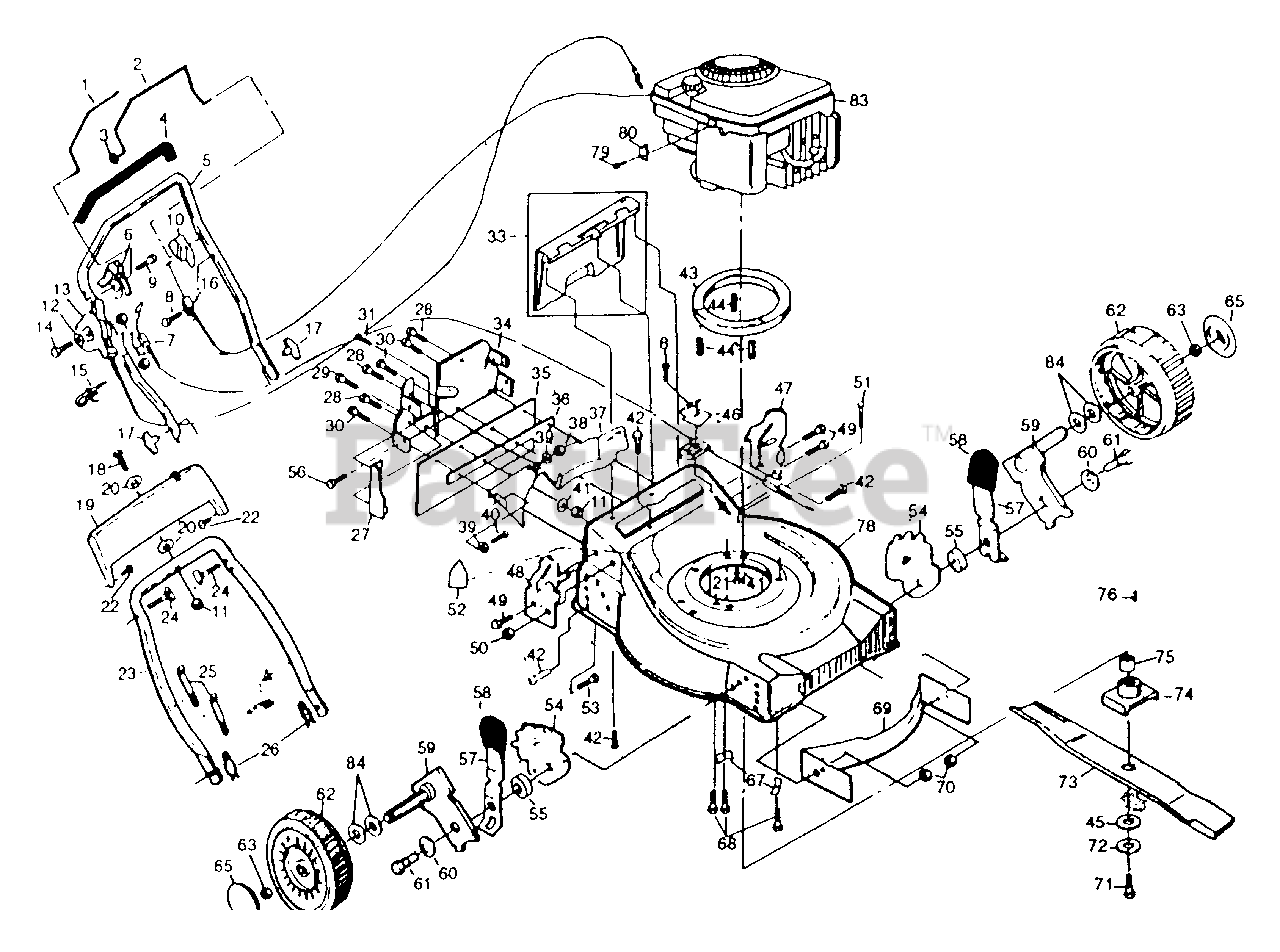

22" Rotary Lawn Mower (View A) Parts Diagram

  • Title

1

Husqvarna 532850839

Drive Bar
(Superseded to 532850040)

$14.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532131100

Engine Control Bar
(Superseded to 532131098)

$

$

Not available

3

Husqvarna 532050806

Flat Washer
(Superseded to 819101216)

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

5

Husqvarna 532125295

Upper Handle
(Superseded to 532166268)

$

$

Not available

6

Husqvarna 532850042

Drive Control Actuator

$

$

Not available

7

Husqvarna 532136428

Drive Cable Assembly

$

$

Not available

8

Husqvarna 532085768

Thread Rolling Screw # 10-24 x 3/4

$

$

Not available

9

Husqvarna 532851552

Self-tapping Screw # 10-24 x 5/8

$

$

Not available

10

Husqvarna 532850041

Zone Control Actuator

$

$

Not available

11

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 532085723

Washer

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532132536

Throttle Control
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532085692

Machine Screw 1/4-20 x 2-1/8
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

16

Husqvarna 532851706

Engine Zone Control Cable

$

$

Not available

17

Husqvarna 532063688

Handle Knob
(Superseded to 532183724)

$

$

Not available

18

Husqvarna 532085436

Hex Washer Head Machine 1/4-20 x 1-1/2
(Superseded to 874760424)

$

$

Not available

19

Husqvarna 532800547

Trim Plate Asm

$

$

Not available

20

Husqvarna 532053847

Flat Washer 1/4
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

22

Husqvarna 532036953

Self-tapping Screw # 10-24 x 5/8

$

$

Not available

23

Husqvarna 532125293

Lower Handle
(Superseded to 532157081)

$

$

Not available

24

Husqvarna 532131959

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

25

Husqvarna 532066426

Wire Ties
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532125397

Side Baffle

$

$

Not available

28

Husqvarna 532128415

Pop Rivet .156 x .415

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532086779

Hex Head Screw 1/4-20 x 3/4

$

$

Not available

30

Husqvarna 532054583

Hex Tapping Screw 1/4-20 x 1/2

$

$

Not available

31

Husqvarna 532081276

Hex Washer Head Machine Screw # 10-24 x 9/16
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

33

Husqvarna 532801097

Rear Door Kit

$

$

Not available

34

Husqvarna 532125223

Back Plate

$

$

Not available

35

Husqvarna 532130444

Rear Skirt

$

$

Not available

36

Husqvarna 532125224

Backing Strip
(Superseded to 532088367)

$

$

Not available

37

Husqvarna 532850061

Rear Baffle

$

$

Not available

38

Husqvarna 532074189

Locknut

$

$

Not available

39

Husqvarna 532085723

Flat Washer

$2.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532076399

Hex Washer Head Tapping Screw x 10-24 x 1/2

$

$

Not available

41

Husqvarna 532085723

Washer

$2.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532054583

Hex Tapping Screw 1/4-20 x 1/2

$

$

Not available

43

Husqvarna 532850988

Engine Spacer

$

$

Not available

44

Husqvarna 532850987

Engine Bushing
(Superseded to 532850988)

$

$

Not available

45

Husqvarna 532851074

Washer

$4.99

$

In Stock, only 4 left!

0

46

Husqvarna 532088615

Bracket Cover
(Superseded to 532750346)

$

$

Not available

47

Husqvarna 532125186

Handle Bracket Assembly (Left)

$

$

Not available

48

Husqvarna 532125187

Handle Bracket Assembly (Right)

$

$

Not available

49

Husqvarna 532055187

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

50

Husqvarna 532063124

Locknut 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 872070404

Carriage Bolt 1/4-20 x 1/2

$2.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 872070505

Carriage Bolt 5/16-18 x 5/8

$

$

Not available

54

Husqvarna 532850904

Wheel Adjusting Bracket
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

56

Husqvarna 532751584

Screw #6

$2.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532125168

Selector Spring
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

58

Husqvarna 532087877

Selector Knob

$6.49

$

In Stock, only 1 left!

0

59

Husqvarna 532125169

Axle Arm Assembly
(Superseded to 532750610)

$

$

Not available

60

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532084921

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

62

Husqvarna 532800333

Wheel & Tire Assembly 8.0 x 2.0
(Superseded to 532435276)

$

$

Not available

63

Husqvarna 532083923

Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

65

Husqvarna 532850645

Hubcap

$

$

Currently unavailable

67

Husqvarna 532125078

Engine Washer

$5.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532850999

Hex Head Thread Rolling Screw 3/8-16 x 2

$7.49

$

In Stock, only 2 left!

0

69

Husqvarna 532125238

Front Baffle
(Superseded to 532170557)

$34.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532850859

Hex Head Machine Screw Gr.8

$

$

Not available

72

Husqvarna 532850263

Helical Washer 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

73

Husqvarna 532103524

22" Blade

$

$

Not available

74

Husqvarna 532125375

Blade Adapter

$

$

Not available

75

Husqvarna 532103113

Spacer

$

$

Not available

76

Husqvarna 532111546

Square Key #HP-505

$

$

Not available

78

Husqvarna 532801105

Lawn Mower Housing

Note: (Includes Key No. 52)

$

$

Not available

79

Husqvarna 532083816

Thread Rolling Screw # 10-32 x 5/8

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

83

Engine - Briggs & Stratton

Note: Model No. 124782

$

$

Not available

84

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

Husqvarna 532132496

Operator's Manual (English)

$

$

Not available

Husqvarna 532133929

Operator's Manual (French)

$

$

Not available

Husqvarna 532800569

Decal (Engine)

$

$

Not available

Husqvarna 532801632

Decal (Housing)

$

$

Not available

Husqvarna 532850788

Decal (Trim Plate)

$

$

Not available
