56 SFE (954072401-F) - Husqvarna Walk-Behind Mower (1995-03) Rotary Lawn Mower - Model No. 56dhs (H56dhsb) - View A Parts Diagram

Walk-Behind Mower

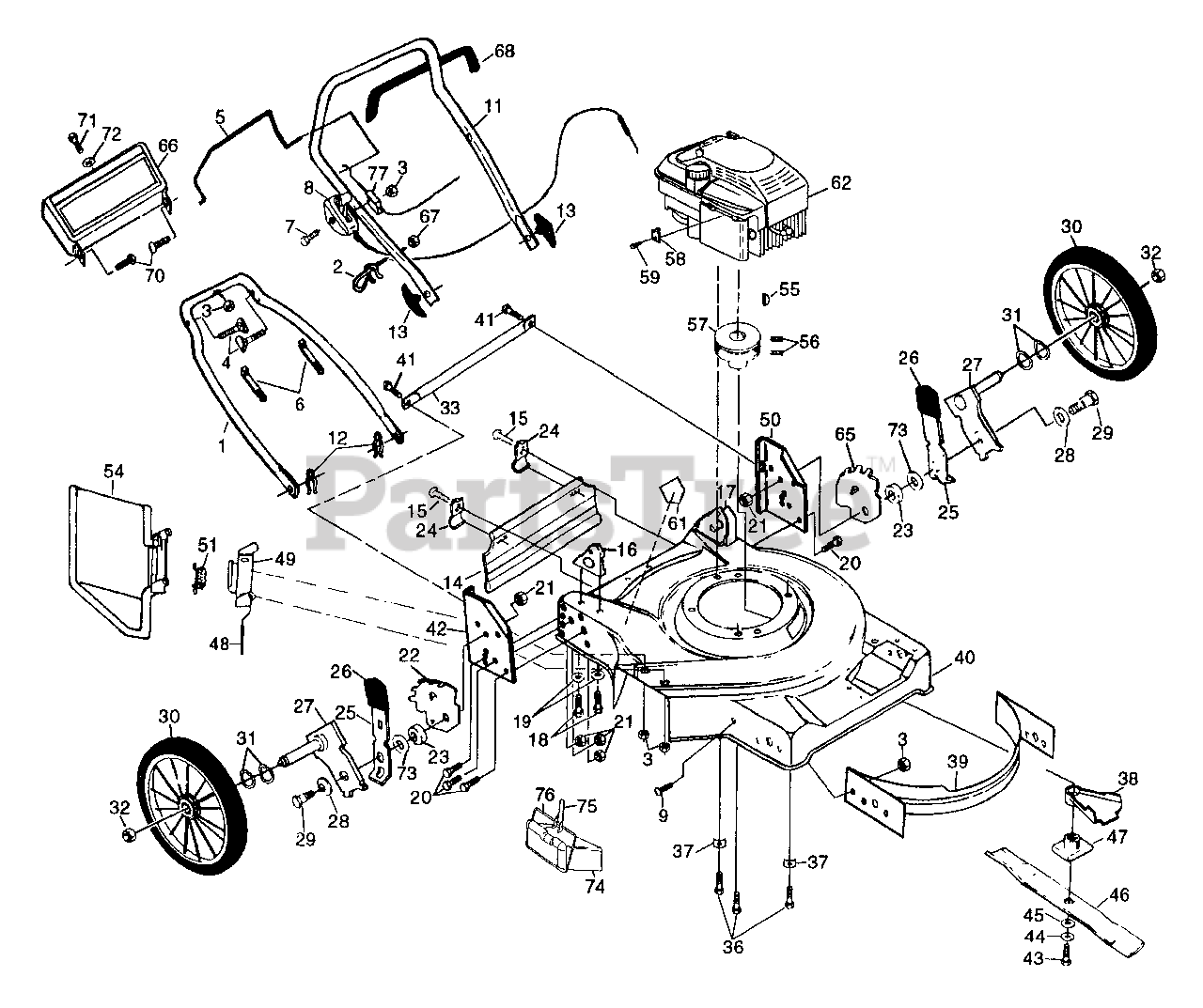

Rotary Lawn Mower - Model No. 56dhs (H56dhsb) - View A Parts Diagram

  • Title

1

Husqvarna 532125293

Lower Handle
(Superseded to 532157081)

$

$

Not available

2

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

3

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

5

Husqvarna 532851512

Control Bar

$

$

Not available

6

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532144929

Hex Head Screw 1/4-20 x 2.12
(Superseded to 532158755)

$

$

Not available

8

Husqvarna 532700417

Throttle Control

$24.99

$

Usually ships in 3-10 days

0

9

Husqvarna 874100412

Screw 1/4-20 x 3/4

$

$

Not available

10

Husqvarna 532851552

Screw Pan

$

$

Not available

11

Husqvarna 532125295

Upper Handle
(Superseded to 532166268)

$

$

Not available

12

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

14

Husqvarna 532140539

Rear Skirt

$

$

Not available

15

Husqvarna 532750097

Hex Head Screw
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

16

Husqvarna 532140465

Handle Bracket Assembly (Right)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532140466

Handle Bracket Assembly (Left)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532055187

Screw 5/16-18 x 3/4
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

19

Husqvarna 532059289

Washer

$4.99

$

In Stock, only 3 left!

0

20

Husqvarna 874760612

Bolt, Hex Head 3/8-16 x 3/4

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 532751592

Locknut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532800368

Wheel Adjusting Bracket (R.R.)

$

$

Not available

23

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

24

Husqvarna 532125207

Skirt Bracket
(Superseded to 532192301)

$

$

Not available

25

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 532701037

Selector Knob

$5.99

$

In Stock, only 4 left!

0

27

Husqvarna 532125323

Axle Arm Assembly
(Superseded to 532751333)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532061651

Rear Spring Washer
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

29

Husqvarna 532142748

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

30

Husqvarna 532088017

Wheel & Tire Assembly (Rear) 14 x 2
(Superseded to 532752063)

$84.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

32

Husqvarna 532083923

Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532850709

Rod Support

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532850998

Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532125078

Engine Washer

$5.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532134612

Debris Shield
(Superseded to 532048283)

$

$

Not available

39

Husqvarna 532125337

Front Baffle
(Superseded to 532165549)

$

$

Not available

40

Husqvarna 532700708

Mower Housing Kit

Note: (Includes Key No. 61)

$

$

Not available

41

Husqvarna 532054583

Screw

$

$

Not available

42

Husqvarna 532125321

Wheel Support Bracket R.H.

$

$

Not available

43

Husqvarna 532851084

Hex Head crew 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532850263

Helical Washer 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

45

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

46

Husqvarna 532141114

22" Blade

$28.99

$

In Stock, only 1 left!

0

47

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

48

Husqvarna 532147286

Hinge Rod

$8.99

$

In Stock, Qty 9

0

49

Husqvarna 532147775

Housing Bracket

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532125322

Wheel Support Bracket L.H.

$

$

Not available

51

Husqvarna 532145286

Torsion Spring
(Superseded to 532152186)

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532148311

Discharge Guard

$8.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532087677

Hi-Pro Key

$

$

Not available

56

Husqvarna 532059708

Set Screw

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532084596

Engine Pulley

$34.99

$

In Stock, only 2 left!

0

58

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

Note: These Parts must be purchased through an authorized Briggs & Stratton Dealer.

$5.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532083816

Screw #10 x 5/8

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

62

Engine - Briggs & Stratton Model No. 128802

Note: These Parts must be purchased through an authorized Briggs & Stratton Dealer.

$

$

Not available

65

Husqvarna 532800370

Wheel Adjusting Bracket (L.R.)
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532800546

Trim Plate Handle Asm.

$

$

Not available

67

Husqvarna 873510400

Keps Locknut 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

68

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

70

Husqvarna 532036953

Self Tapping Screw 10-24 x .625

$

$

Not available

71

Husqvarna 532085436

Hex Hd. Wash. Screw 1/4-20 x 1-1/2
(Superseded to 874760424)

$

$

Not available

72

Husqvarna 532085723

Flat Washer 28 x .62 x .06

$2.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532088348

Flat Washer 3/8

$7.49

$

In Stock, Qty 6

0

74

Husqvarna 532146345

Mulcher Plug

$

$

Currently unavailable

75

Husqvarna 532149168

Plug Latch

$

$

Currently unavailable

76

Husqvarna 532146365

Mulcher Bail

$

$

Currently unavailable

77

Husqvarna 532130861

Zone Control Cable

$

$

Not available

Husqvarna 532125033

Rear Baffle

Note: (Not Shown)

$

$

Not available

Husqvarna 532700621

Logo Decal (Housing)

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 532149955

Owner's Manual

Note: (English/French)

$

$

Currently unavailable

Husqvarna 532850788

Trim Plate Decal

$

$

Not available
