56 SFE (954065401-A) - Husqvarna Walk-Behind Mower (1994-01) Drive Assembly Parts Diagram

Walk-Behind Mower

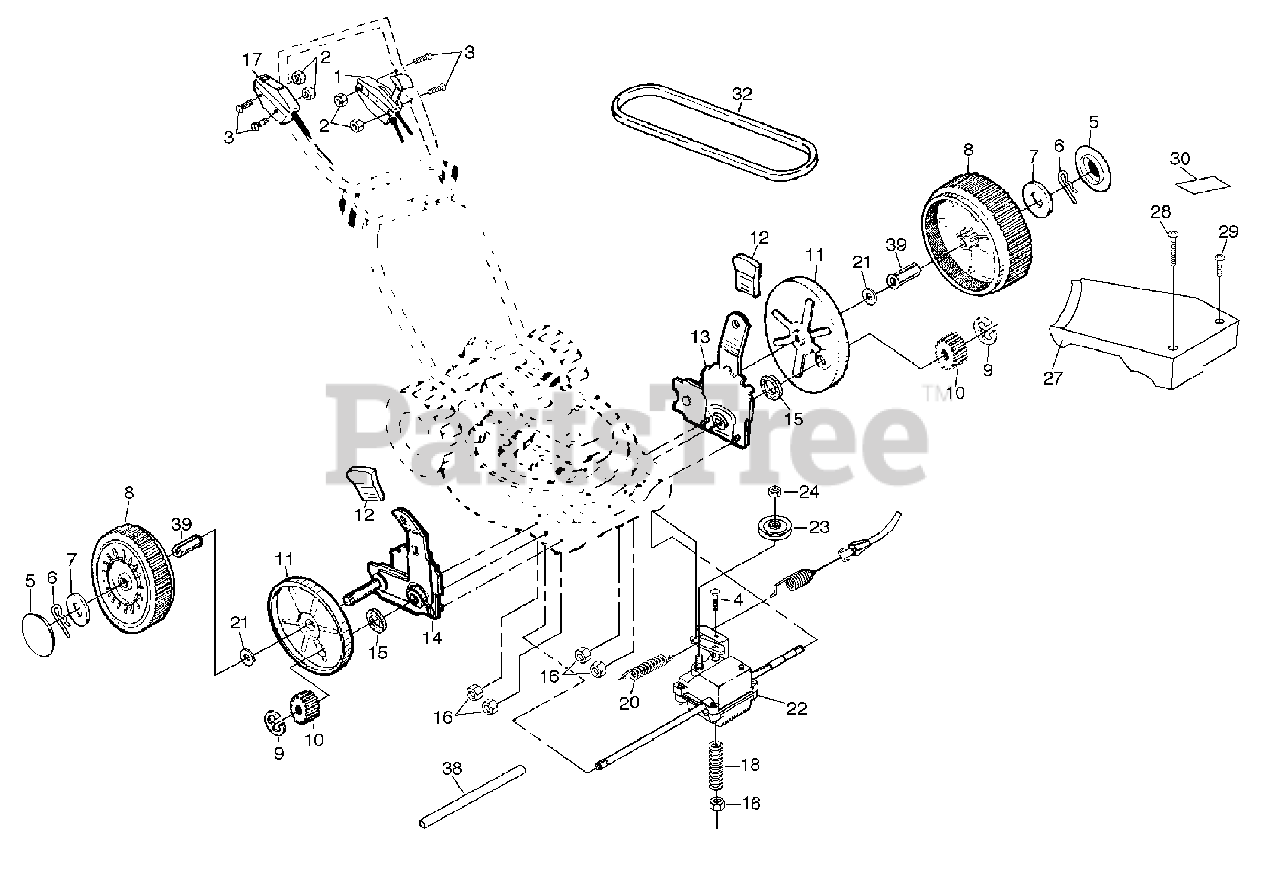

Drive Assembly Parts Diagram

  • Title
1

Husqvarna 532700616

Drive Control
(Superseded to 532142098)

$

$

Not available

2

Husqvarna 532063601

Locknut #10-24
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 532144929

Hex Head Screw 1/4-20 x 1-1/8
(Superseded to 532158755)

$

$

Not available

4

Husqvarna 532700875

Carriage Bolt 1/4-20 x 2

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

6

Husqvarna 532085179

Retainer Clip

$7.49

$

Usually ships in 3-10 days

0

$

$

Not available

8

Husqvarna 532700953

Wheel & Tire Assembly
(Superseded to 532193144)

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532088080

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 1 left!

0

12

Husqvarna 532132800

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

13

Husqvarna 532142150

Wheel Adjuster Assembly (Left)
(Superseded to 532151009)

$21.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532142151

Wheel Adjuster Assembly (Right)
(Superseded to 532151010)

$31.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532088118

Felt Washer

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532063601

Locknut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 532143975

Engine Zone Control Cable

$

$

Not available

$6.49

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 532702511

Gear Case Assembly
(Superseded to 532187211)

$109.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532137052

Drive Pulley
(Superseded to 532194126)

$

$

Not available

24

Husqvarna 532132010

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532700479

Drive Cover

$

$

Not available

28

Husqvarna 532087866

Pan Head Machine Screw #10-24 x 2-3/4

$

$

Not available

29

Husqvarna 532136797

Pan Head Machine Screw #10-24 x 1-3/4
(Superseded to 532149746)

$7.49

$

In Stock, only 1 left!

0

30

Husqvarna 532142072

Drive Cover Decal

$

$

Not available

32

Husqvarna 532137078

V-Belt
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

38

Husqvarna 532086012

Drive Shaft Cover

$

$

Not available

39

Husqvarna 532086960

Wheel Bushing

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532750320

Decal RH (Height Adjuster)

$

$

Not available

Husqvarna 532750319

Decal LH (Height Adjuster)

$

$

Not available
