56 SFE (954050901-B) - Husqvarna Walk-Behind Mower (1999-12) 22" Rotary Lawn Mower (Part 1) Parts Diagram

Walk-Behind Mower

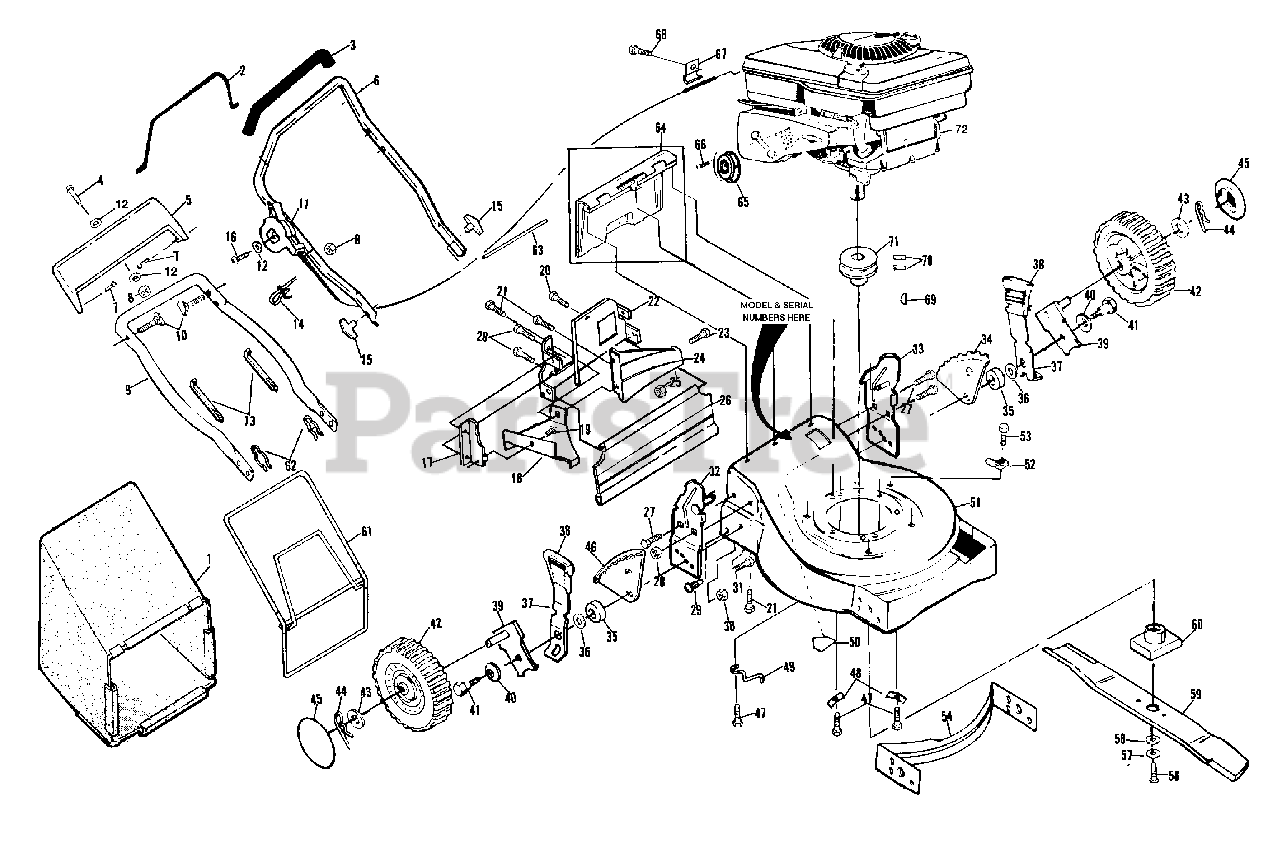

22" Rotary Lawn Mower (Part 1) Parts Diagram

  • Title

1

Husqvarna 532800386

Grass Bag Assembly
(Superseded to 532134048)

$

$

Not available

2

Husqvarna 532800746

Control Bar

$

$

Not available

3

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

4

Husqvarna 532085436

Hex Washer Head Machine Screw 1/4-20 x 1-1/2
(Superseded to 874760424)

$

$

Not available

5

Husqvarna 532800547

Trim Plate

$

$

Not available

6

Husqvarna 532125071

Upper Handle
(Superseded to 532167122)

$

$

Not available

7

Husqvarna 532036953

Self-tapping Screw #10-24 x 5/8

$

$

Not available

8

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 532125173

Lower Handle
(Superseded to 532157081)

$

$

Not available

10

Husqvarna 532058714

Handle Bolt
(Superseded to 532183724)

$

$

Not available

11

Husqvarna 532851464

Throttle Control
(Superseded to 532851461)

$

$

Not available

12

Husqvarna 532085723

Washer

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532800357

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

15

Husqvarna 532063688

Handle Knob
(Superseded to 532183724)

$

$

Not available

16

Husqvarna 532851185

Round Head Screw 1/4-20 x 2-3/4
(Superseded to 532128889)

$

$

Not available

17

Husqvarna 532125076

Side Baffle

$

$

Currently unavailable

18

Husqvarna 532125075

Discharge Baffle

$

$

Currently unavailable

19

Husqvarna 532086344

Hex Head Screw #10-24 x 1/2

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532081283

Self-tapping Screw #10-24 x 3/8

$

$

Not available

21

Husqvarna 532054583

Hex Tapping Screw 1/4-20 x 1/2

$

$

Not available

22

Husqvarna 532125219

Back Plate

$

$

Currently unavailable

23

Husqvarna 532041945

Thread Screw #10-24 x 1/2
(Superseded to 874191008)

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532125073

Rear Baffle

$

$

Currently unavailable

25

Husqvarna 532069180

Locknut

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532751083

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532055187

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

28

Husqvarna 532063124

Locknut
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 532074400

Locknut
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532066238

Carriage Bolt
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 532125038

Handle Bracket Assembly (Right)

$

$

Currently unavailable

33

Husqvarna 532125040

Handle Bracket Assembly (Left)

$

$

Currently unavailable

34

Husqvarna 532800370

Wheel Adjusting Bracket (LR)
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

36

Husqvarna 532088348

Washer

$7.49

$

In Stock, Qty 6

0

37

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

38

Husqvarna 532077865

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

39

Husqvarna 532125079

Axle Arm Assembly

$

$

Not available

40

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532084921

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

42

Husqvarna 532086943

Wheel & Tire Assembly 9.0 x 2.0
(Superseded to 532150341)

$37.99

$

In Stock, only 1 left!

0

43

Husqvarna 532052160

Washer

$

$

Not available

44

Husqvarna 532085179

Retainer Clip

$7.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532850845

Hubcap

$

$

Not available

46

Husqvarna 532800368

Wheel Adjusting Bracket (RR)

$

$

Not available

47

Husqvarna 532850998

Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532125078

Engine Washer

$5.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532851000

Belt Snubber

$

$

Not available

50

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532801014

Lawn Mower Housing

Note: (Includes Key No. 50)

$

$

Not available

52

Husqvarna 532087930

Guide Clip (Housing)

$5.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

54

Husqvarna 532125081

Front Baffle

$

$

Currently unavailable

56

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

58

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

59

Husqvarna 532850973

22" Blade
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

60

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

61

Husqvarna 532800393

Catcher Frame Assembly
(Superseded to 532088614)

$54.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532750328

Hinge Rod

$2.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532125080

Rear Door

$

$

Currently unavailable

65

Husqvarna 532103251

Muffler Deflector

$

$

Not available

66

Husqvarna 532093705

Screw #8-32 x 3/8
(Superseded to 532069485)

$

$

Not available

67

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532107488

Thread Rolling Screw #10-32 x 5/8

$

$

Not available

69

Husqvarna 532087677

Hi-Pro Key

$

$

Not available

70

Husqvarna 532059708

Set Screw 1/4-20 x 5/16

$6.49

$

Usually ships in 3-10 days

0

71

Husqvarna 532084596

Engine Pulley

$34.99

$

In Stock, only 2 left!

0

72

Engine - Briggs & Stratton Model No. 124707 Type No. 3120-01

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

Husqvarna 532801679

Operator's Manual (English)

$

$

Not available

Husqvarna 532128435

Operator's Manual (French)

$

$

Currently unavailable

Husqvarna 532800569

Decal (Engine)

$

$

Not available

Husqvarna 532850795

Stripe Decal (Housing)

$

$

Not available

Husqvarna 532850788

Decal (Trim Plate)

$

$

Not available
