56 SF (H56SFH) - Husqvarna Walk-Behind Mower (1996-02) Drive Assembly Parts Diagram

Walk-Behind Mower

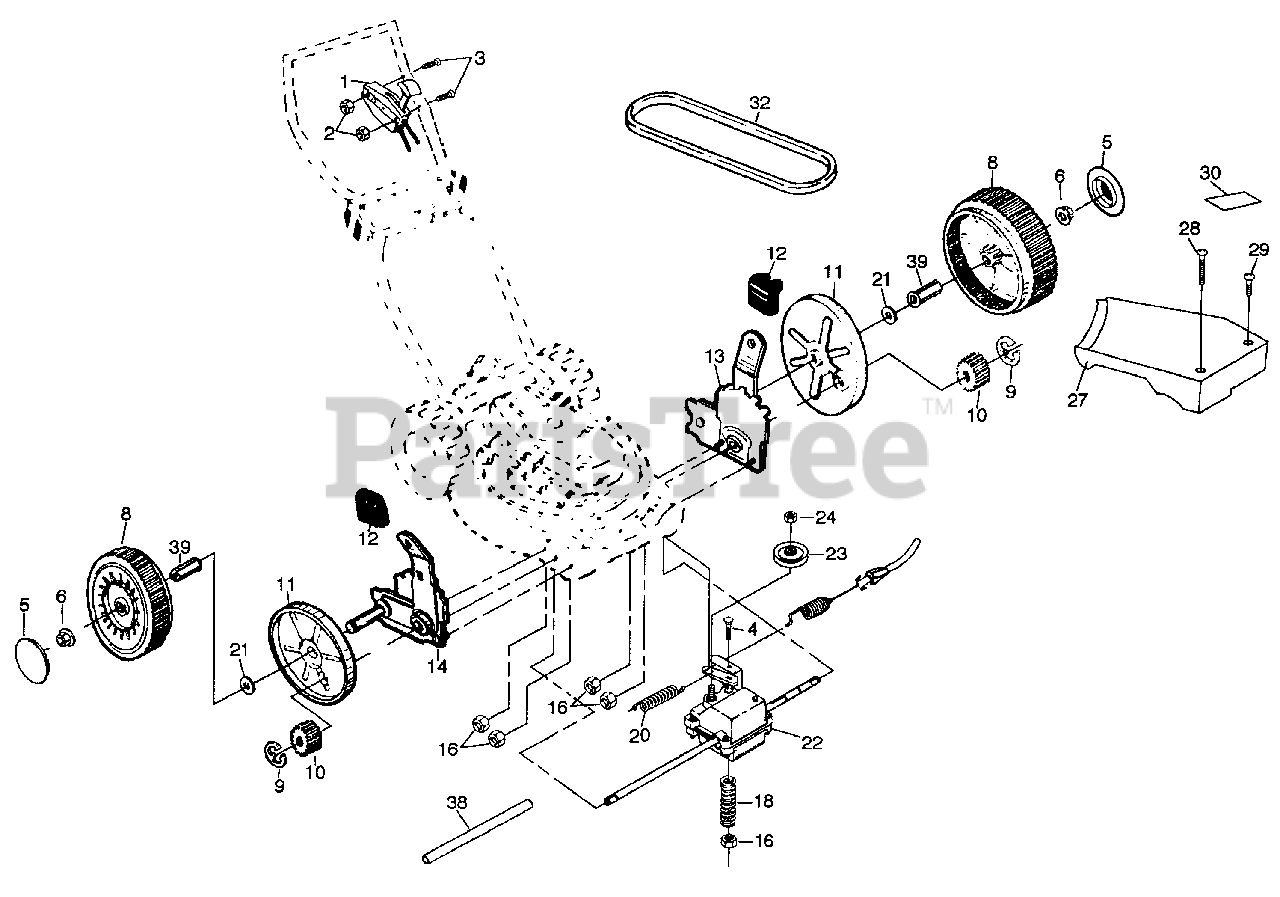

Drive Assembly Parts Diagram

  • Title
1

Husqvarna 532142103

Drive Control

$61.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532063601

Locknut #10-24
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2.12
(Superseded to 532158755)

$

$

Not available

4

Husqvarna 532700875

Carriage Bolt 1/4-20 x 2

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

6

Husqvarna 532145212

Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532700953

Wheel & Tire Assembly
(Superseded to 532193144)

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532088080

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

12

Husqvarna 532701037

Selector Knob

$5.99

$

In Stock, only 4 left!

0

13

Husqvarna 532151009

Wheel Adjuster Assembly (Left)

$21.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532151010

Wheel Adjuster Assembly (Right

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532063601

Locknut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 532702511

Gear Case Assembly
(Superseded to 532187211)

$109.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532137052

Drive Pulley
(Superseded to 532194126)

$

$

Not available

24

Husqvarna 532132010

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532700479

Drive Cover

$

$

Not available

28

Husqvarna 532146072

Pan Head Machine Screw #10-24 x 2-3/4

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532149746

Pan Head Machine Screw #10-24 x 1-3/4

$7.49

$

In Stock, only 1 left!

0

30

Husqvarna 532131841

Drive Cover Decal

$

$

Not available

32

Husqvarna 532137078

V-Belt
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

38

Husqvarna 532086012

Drive Shaft Cover

$

$

Not available

39

Husqvarna 532086960

Wheel Bushing

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532750320

Decal RH (Height Adjuster)

$

$

Not available

Husqvarna 532750319

Decal LH (Height Adjuster)

$

$

Not available
