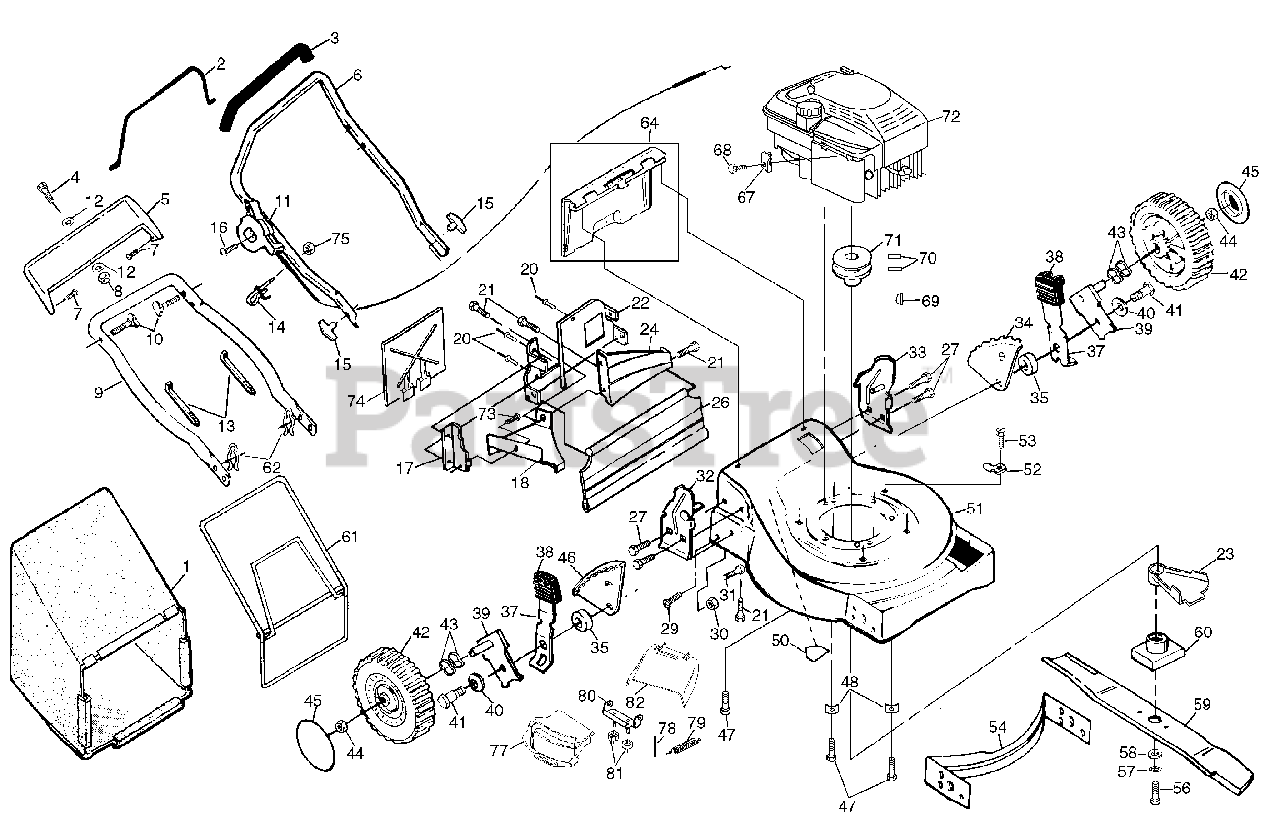

56 SF (954077101-A) - Husqvarna Walk-Behind Mower (1995-10) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Husqvarna 532800386

Grass Bag Assembly
(Superseded to 532134048)

$

$

Not available

2

Husqvarna 532131094

Control Bar

$

$

Not available

3

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

4

Husqvarna 532085436

Hex Washer Head Machine Screw 1/4-20 x 1-1/2
(Superseded to 874760424)

$

$

Not available

5

Husqvarna 532800547

Trim Plate

$

$

Not available

6

Husqvarna 532800327

Upper Handle
(Superseded to 532167122)

$

$

Not available

7

Husqvarna 532036953

Self-tapping Screw #10-24 x 5/8

$

$

Not available

8

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 532125293

Lower Handle
(Superseded to 532157081)

$

$

Not available

10

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

11

Husqvarna 532700654

Throttle Control

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532085723

Washer

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

15

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

16

Husqvarna 532059935

Round Head Screw 1/4-20 x 2-3/4

$

$

Not available

17

Husqvarna 532138860

Side Baffle

$

$

Not available

18

Husqvarna 532125376

Discharge Baffle
(Superseded to 532133190)

$

$

Not available

20

Husqvarna 532128415

Rivet

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532054583

Hex Tapping Screw 1/4-20 x 1/2

$

$

Not available

22

Husqvarna 532139734

Back Plate
(Superseded to 532700360)

$8.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532134612

Debris Shield
(Superseded to 532048283)

$

$

Not available

24

Husqvarna 532125348

Rear Baffle
(Superseded to 532133040)

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532140540

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532150078

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 532751592

Locknut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

UNKNOWN

$

$

Not available

32

Husqvarna 532142007

Handle Bracket Assembly (Right)
(Superseded to 532700915)

$

$

Not available

33

Husqvarna 532142008

Handle Bracket Assembly (Left)
(Superseded to 532700913)

$

$

Not available

34

Husqvarna 532142842

Wheel Adjusting Bracket (LR)

$

$

Not available

35

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

37

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

38

Husqvarna 532701037

Selector Knob

$5.99

$

In Stock, only 4 left!

0

39

Husqvarna 532151254

Axle Arm Assembly
(Superseded to 532145937)

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532142748

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

42

Husqvarna 532800333

Wheel & Tire Assembly
(Superseded to 532435276)

$

$

Not available

43

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

44

Husqvarna 532083923

Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532850845

Hubcap

$

$

Not available

46

Husqvarna 532142843

Wheel Adjusting Bracket (RR)

$

$

Not available

47

Husqvarna 532150406

Thread Rolling Screw 3/8-16 x 1

$7.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532125078

Engine Washer

$5.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532151008

Lawn Mower Housing
(Superseded to 532170573)

Note: (Includes Key No. 50)

$

$

Not available

52

Husqvarna 532087930

Guide Clip (Housing)

$5.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

54

Husqvarna 532125345

Front Baffle
(Superseded to 532170557)

$34.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

58

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 2 left!

0

59

Husqvarna 532141114

22" Blade

$28.99

$

In Stock, only 1 left!

0

60

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

61

Husqvarna 532088614

Catcher Frame Assembly

$54.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532147612

Rear Door Assembly

$

$

Not available

67

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

Note: This part must be ordered through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532083816

Thread Rolling Screw #10-32 x 5/8

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532087677

Hi-Pro Key

$

$

Not available

70

Husqvarna 532059708

Set Screw 1/4-20 x 5/16

$6.49

$

Usually ships in 3-10 days

0

71

Husqvarna 532084596

Engine Pulley

$34.99

$

In Stock, only 2 left!

0

72

Engine - Briggs & Stratton - Model No. 128802

Note: This part must be ordered through an authorized Briggs & Stratton dealer.

$

$

Not available

73

Husqvarna 532150050

Screw

$4.99

$

In Stock, only 1 left!

0

74

Husqvarna 532125368

Mulcher Plate
(Superseded to 532166649)

$

$

Not available

75

Husqvarna 873510400

Keps Locknut
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

77

Husqvarna 532150654

Mulcher Door

$14.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532147286

Hinge Rod

$8.99

$

In Stock, Qty 9

0

79

Husqvarna 532145286

Hinge Spring
(Superseded to 532152186)

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532147775

Hinge Bracket

$3.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532063601

Nut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

82

Husqvarna 532150653

Clip-on Discharge Guard
(Superseded to 532145285)

$

$

Not available

Husqvarna 532151020

Owner's Manual (English/French)

$

$

Not available

Husqvarna 532150321

Decal (Trim Plate)

$

$

Not available
