56 SF (954050821-C) - Husqvarna Walk-Behind Mower (1992-01) Gear Case Assembly Parts Diagram

Walk-Behind Mower

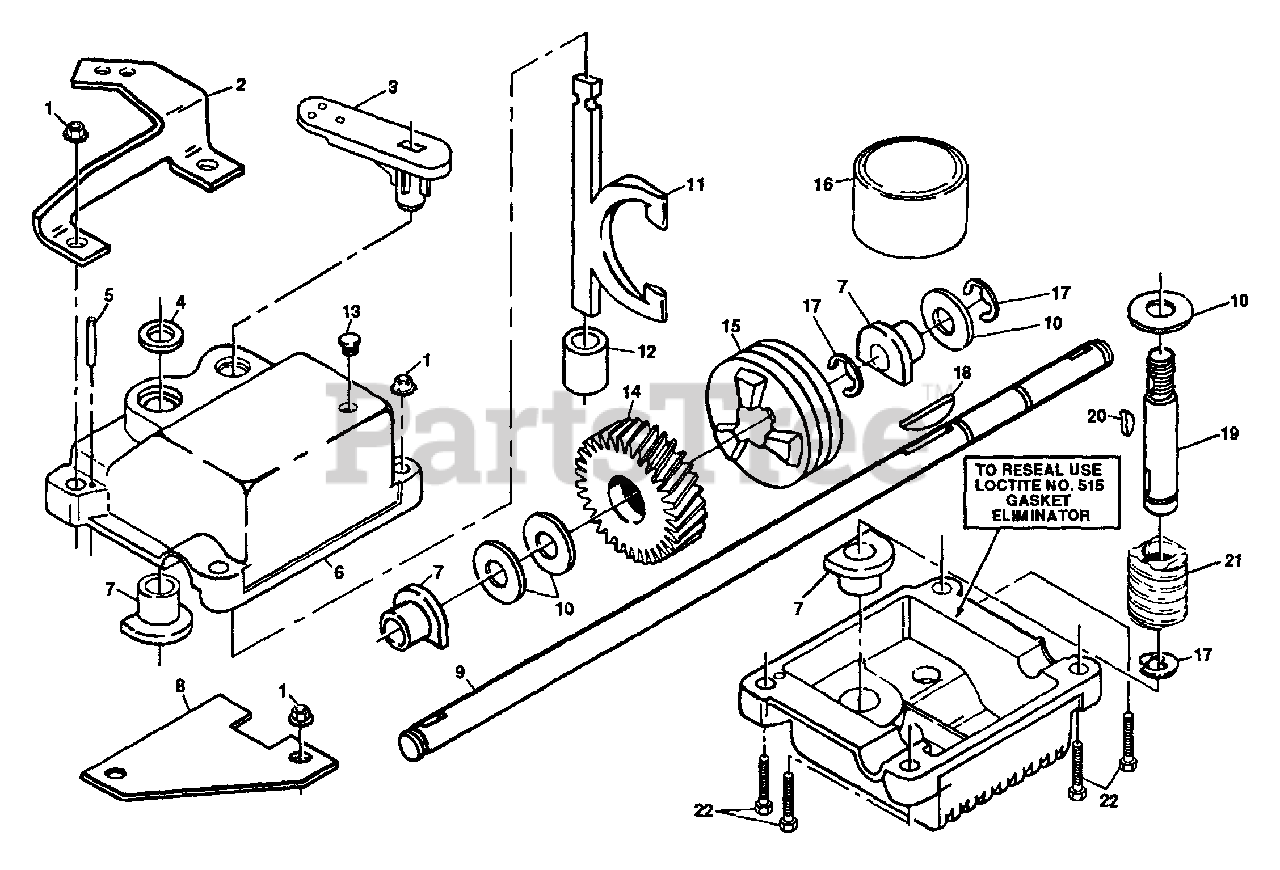

Gear Case Assembly Parts Diagram

  • Title

1

Husqvarna 53838

Locknut, Keps 1/4-20

$

$

Currently unavailable

2

Husqvarna 85178

Bracket, Adjusting

$

$

Currently unavailable

3

Husqvarna 131483

Shifter

$

$

Not available

4

Husqvarna 57072

Seal
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 57388

Pin, Grooved 1/8 x 1/2

$

$

Not available

6

Husqvarna 48032

Gear Case Halves, Upper and Lower

Note: (Includes Key #4, 5 and 7)

$

$

Not available

7

Husqvarna 77881

Bearing
(Superseded to 532077881)

$30.99

$

Usually ships in 3-10 days

0

8

Husqvarna 77039

Bracket, Spring

$

$

Currently unavailable

9

Husqvarna 750430

Drive Shaft
(Superseded to 532750430)

$

$

Not available

10

Husqvarna 57079

Washer, Hardened
(Superseded to 532057079)

$6.49

$

In Stock, Qty 11

0

11

Husqvarna 131484

Yoke, Clutch
(Superseded to 532131484)

$

$

Not available

12

Husqvarna 131485

Bushing

$

$

Not available

13

Husqvarna 86447

Plug
(Superseded to 532086447)

$

$

Not available

14

Husqvarna 133804

Gear, Helical

$

$

Not available

15

Husqvarna 750436

Jaw, Clutch

$

$

Not available

16

Husqvarna 750369

Grease

$

$

Not available

17

Husqvarna STD581050

E-Ring

$

$

Currently unavailable

18

Husqvarna 850848

Key, Hi-Pro
(Superseded to 532850848)

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 131481

Shaft, Worm

$

$

Not available

20

Husqvarna 65692

Key, Woodruff, #3

$

$

Not available

21

Husqvarna 83680

Worm

$

$

Not available

22

Husqvarna STD522512

Screw, Hex Head 1/4-20 x 1-1/4

$

$

Not available
