56 SF (954050821-C) - Husqvarna Walk-Behind Mower (1992-01) 22" Rotary Lawn Mower (View B) Parts Diagram

Walk-Behind Mower

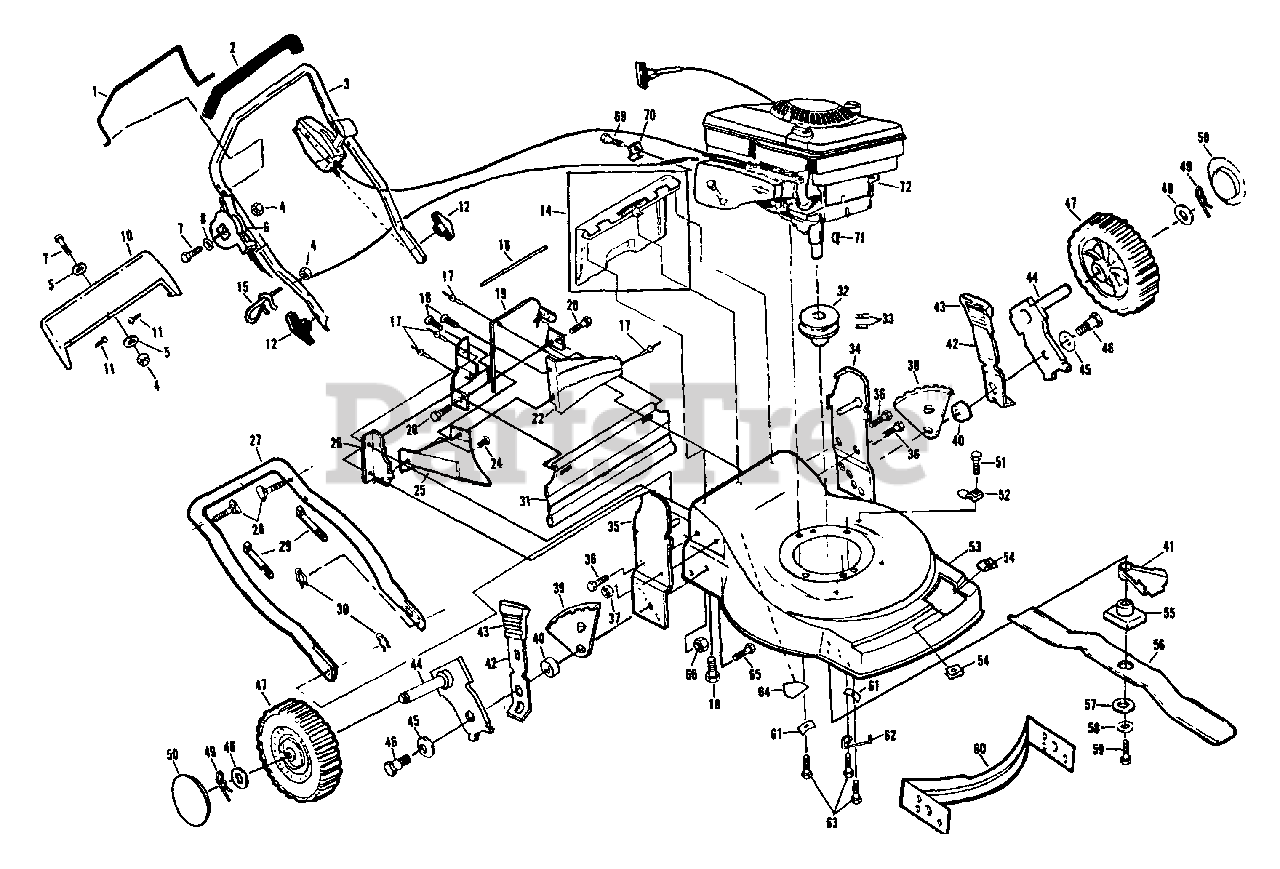

22" Rotary Lawn Mower (View B) Parts Diagram

  • Title

1

Husqvarna 532131095

Control Bar
(Superseded to 532131094)

$

$

Not available

2

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

3

Husqvarna 532125294

Upper Handle
(Superseded to 532800327)

$

$

Not available

4

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532053847

Washer
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532132536

Throttle Control
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532085436

Machine Screw 1/4-20 x 1
(Superseded to 874760424)

$

$

Not available

8

Husqvarna 532085723

Flat Washer

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532800547

Trim Plate

$

$

Not available

11

Husqvarna 532036953

Self-tapping Screw #10-24 x 5/8

$

$

Not available

12

Husqvarna 532063688

Handle Knob
(Superseded to 532183724)

$

$

Not available

14

Husqvarna 532129460

Rear Door Asm.

Note: (Includes Key. No. 16)

$

$

Not available

15

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

16

Husqvarna 532750328

Hinge Rod

$2.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532054583

Hex Tapping Screw 1/4-20 x 1/2

$

$

Not available

19

Husqvarna 532125362

Back Plate

$

$

Not available

20

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

22

Husqvarna 532125348

Rear Baffle
(Superseded to 532133040)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532086344

Hex Head Screw #10-24 x 1/2

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532125346

Discharge Baffle

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532125347

Side Baffle

$

$

Not available

27

Husqvarna 532125293

Lower Handle
(Superseded to 532157081)

$

$

Not available

28

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

29

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532128796

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532084596

Engine Pulley

$34.99

$

In Stock, only 2 left!

0

33

Husqvarna 532059708

Set Screw 1 /4-20 x 5/16

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532125186

Handle Bracket Assembly (Left)

$

$

Not available

35

Husqvarna 532125187

Handle Bracket Assembly (Right)

$

$

Not available

36

Husqvarna 532055187

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

37

Husqvarna 532063124

Locknut 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532800370

Wheel Adjusting Bracket (Left Rear)
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532800368

Wheel Adjusting Bracket (Right Rear)

$

$

Not available

40

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

41

Husqvarna 532134612

Shield Debris
(Superseded to 532048283)

$

$

Not available

42

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

43

Husqvarna 532132800

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

44

Husqvarna 532125061

Axle Arm Assembly
(Superseded to 532800754)

$

$

Not available

45

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532084921

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

47

Husqvarna 532850847

Wheel & Tire Assembly 9.0 x 2.0

$

$

Not available

48

Husqvarna 532052160

Washer

$

$

Not available

49

Husqvarna 532085179

Retainer Clip

$7.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532850845

Hubcap

$

$

Not available

51

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

52

Husqvarna 532087930

Guide Clip

$5.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532135294

Lawn Mower Housing

Note: (Includes Key No. 64)

$

$

Not available

54

Husqvarna 532075449

Speed Nut, U Type

$

$

Not available

55

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

56

Husqvarna 532850973

22" Blade
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

57

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

58

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

59

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 532125345

Front Baffle
(Superseded to 532170557)

$34.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532125078

Engine Washer

$5.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532135030

Retainer Ring Debris Shield

$

$

Not available

63

Husqvarna 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

65

Husqvarna 872070505

Carriage Bolt 5/16-18 x 5/8

$

$

Not available

66

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532083816

Thread Rolling Screw #10-32 x 5/8

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532087677

Hi-Pro Key #HP-505

$

$

Not available

72

Engine

Note: Briggs & Stratton, Model No. 124702. This part must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

Husqvarna 532135268

Operator's Manual (English)

$

$

Currently unavailable

Husqvarna 532135269

Operator's Manual (French)

$

$

Currently unavailable

Husqvarna 532800569

Decal (Engine)

$

$

Not available

Husqvarna 532850795

Stripe Decal (Housing)

$

$

Not available

Husqvarna 532850788

Decal (Trim Plate)

$

$

Not available
