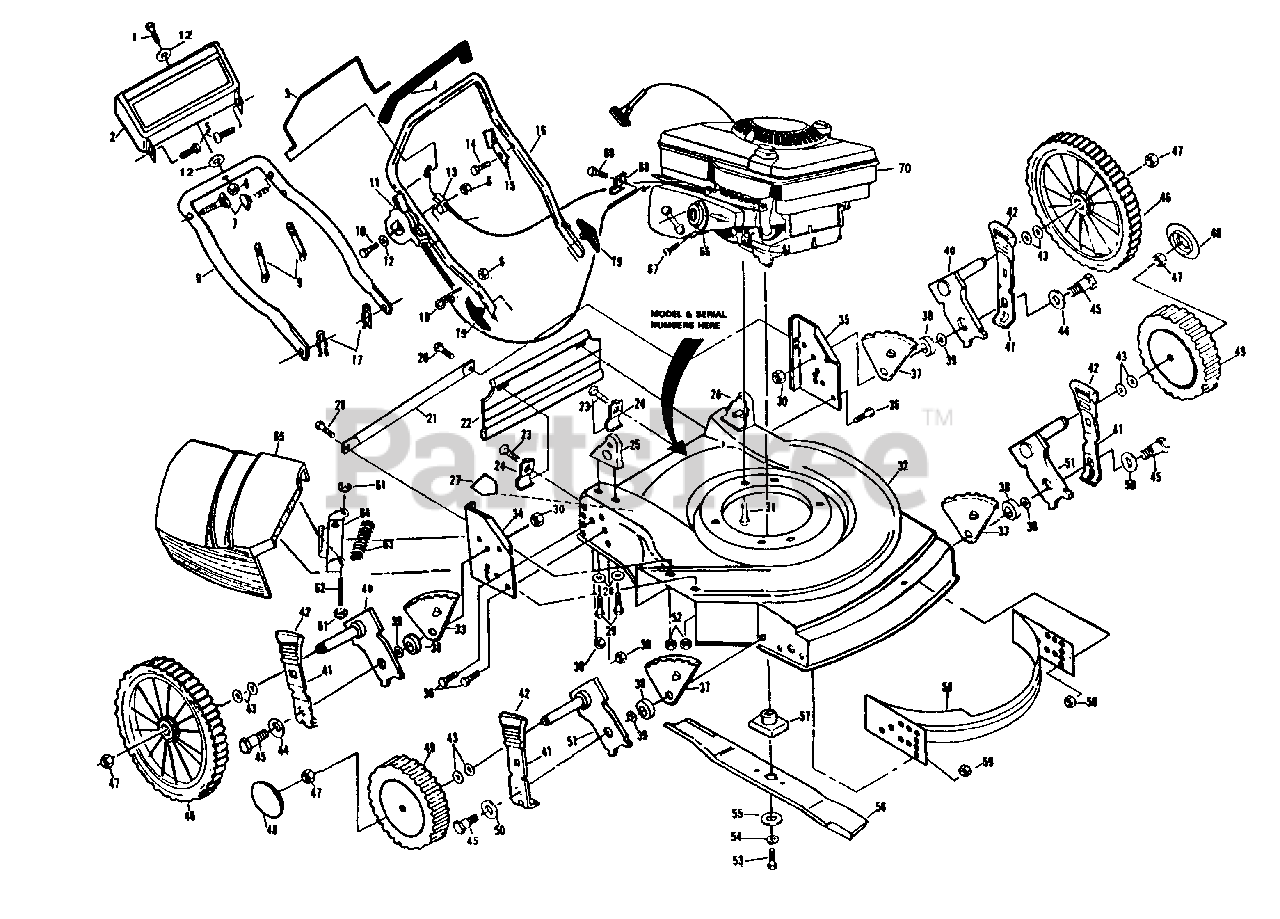

56 DH (954050701-B) - Husqvarna Walk-Behind Mower (1990-10) 22" Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

22" Rotary Lawn Mower Parts Diagram

  • Title

1

Husqvarna 532085436

Hex Head Washer Screw 1/4-20 x 1-1/2
(Superseded to 874760424)

$

$

Not available

2

Husqvarna 532800547

Trim Plate

$

$

Not available

3

Husqvarna 532850758

Control Bar
(Superseded to 532850735)

$

$

Not available

4

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

5

Husqvarna 532036953

Self-tapping Screw #10-24 x 5/8

$

$

Not available

6

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 532058714

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532125173

Lower Handle
(Superseded to 532157081)

$

$

Not available

9

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532085692

Machine Screw 1/4-20 x 2-1/8
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532851464

Throttle Control
(Superseded to 532851461)

$

$

Not available

12

Husqvarna 532085723

Washer

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532851670

Engine Zone Control Cable

$15.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

15

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532125171

Upper Handle
(Superseded to 532125161)

$

$

Not available

17

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532800357

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

19

Husqvarna 532063688

Handle Knob
(Superseded to 532183724)

$

$

Not available

20

Husqvarna 532054583

Self-tapping Screw 1/4-20 x 1/2

$

$

Not available

21

Husqvarna 532750157

Support Rod

$8.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532751084

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532081276

Hex Head Washer Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

24

Husqvarna 532125207

Skirt Bracket
(Superseded to 532192301)

$

$

Not available

25

Husqvarna 532125047

Handle Bracket Assembly (Right)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532125049

Handle Bracket Assembly (Left)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532059289

Washer

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 532055187

Thread Cutting Screw 5/16-18 x 1-3/4
(Superseded to 817000512)

$6.49

$

In Stock, Qty 6

0

30

Husqvarna 532062336

Locknut 3/8-16
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532850998

Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532801493

Lawn Mower Housing

Note: (Includes Key No. 27)

$

$

Currently unavailable

33

Husqvarna 532800368

Wheel Adjusting Bracket (LF/RR)

$

$

Not available

34

Husqvarna 532125052

Wheel Support Bracket (Right)
(Superseded to 532750386)

$

$

Not available

35

Husqvarna 532125053

Wheel Support Bracket (Left)
(Superseded to 532750388)

$

$

Not available

36

Husqvarna 532055912

Hex Head Bolt 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

37

Husqvarna 532800370

Wheel Adjusting Bracket (RF/LR)
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

39

Husqvarna 532088348

Washer

$7.49

$

In Stock, Qty 6

0

40

Husqvarna 532125162

Axle Arm Assembly (Rear)
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

41

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

42

Husqvarna 532077865

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

43

Husqvarna 532057143

Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

44

Husqvarna 532061651

Washer
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

45

Husqvarna 532084921

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

46

Husqvarna 532088017

Wheel & Tire Assembly 14.0 x 2.0
(Superseded to 532752063)

$84.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532083923

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532850845

Hubcap

$

$

Not available

49

Husqvarna 532800333

Wheel & Tire Assembly 8.0 x 2.0
(Superseded to 532435276)

$

$

Not available

50

Husqvarna 532062335

Washer

$9.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532125061

Axle Arm Assembly (Front)
(Superseded to 532800754)

$

$

Not available

52

Husqvarna 532053490

Locknut
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

53

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

Helical Washer 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

55

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 2 left!

0

56

Husqvarna 532850973

22" Blade
(Superseded to 532406713)

$26.99

$

In Stock, Qty 10

0

57

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

58

Husqvarna 532125056

Front Baffle

$

$

Not available

59

Husqvarna 532074400

Locknut 3/8-16
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532033750

E-Ring
(Superseded to 812000014)

$7.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532087590

Hinge Rod

$

$

Not available

63

Husqvarna 532087589

Torsion Spring

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532087593

Housing Bracket Assembly

$6.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532850778

Discharge Guard

$

$

Not available

66

Husqvarna 532103251

Muffler Deflector

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

67

Husqvarna 532093705

Screw #8-32 x 3/8
(Superseded to 532069485)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

68

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$5.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532107488

Thread Rolling Screw #10-32 x 5/8

$

$

Not available

70

Engine - Briggs & Stratton

Note: Model No. 124702 Type No. 3118-01; These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

Husqvarna 532125055

Rear Baffle
(Superseded to 532134027)

Note: (Not Shown)

$

$

Not available

Husqvarna 532801676

Operator's Manual (English)

$

$

Not available

Husqvarna 532128436

Operator's Manual (French)

$

$

Currently unavailable

Husqvarna 532800569

Decal (Engine)

$

$

Not available

Husqvarna 532800572

Decal (Housing)

$

$

Not available

Husqvarna 532850788

Decal (Trim Plate)

$

$

Not available
