56 CS (954069001-A) - Husqvarna Walk-Behind Mower (1994-07) Gear Case Assembly Parts Diagram

Walk-Behind Mower

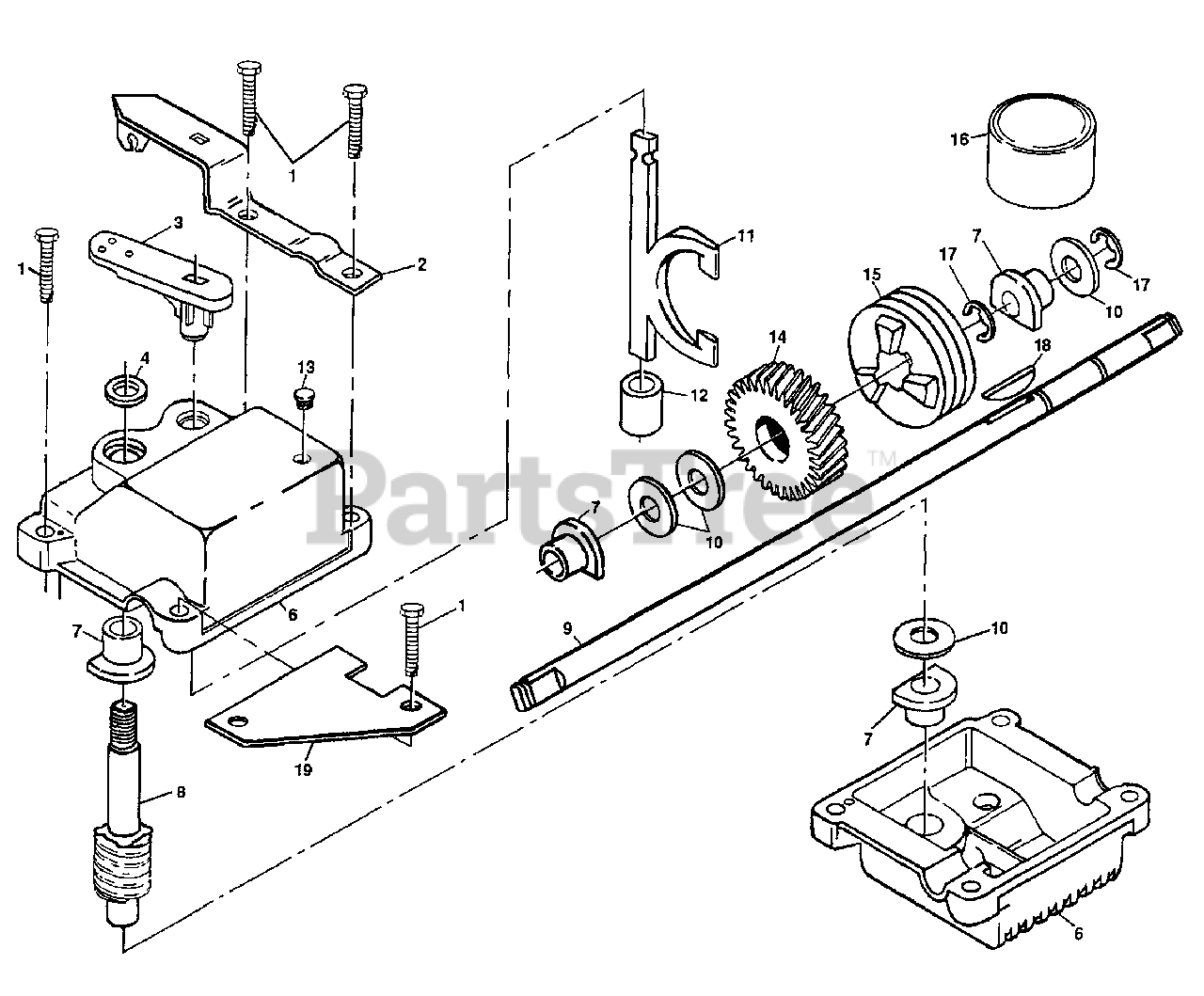

Gear Case Assembly Parts Diagram

  • Title

1

Husqvarna 817490416

Tapping Screw 1/4-20 x 1-1/4
(Superseded to 817640416)

$

$

Not available

2

Husqvarna 532140269

Engagement Bracket
(Superseded to 532137055)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532137053

Shifter

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532057072

Seal

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532048373

Gear Case Halves Kit

Note: (Includes Key Nos. 4 and 7)

$

$

Not available

7

Husqvarna 532077881

Bearing

$30.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532137051

Worm Shaft
(Superseded to 532183863)

$

$

Not available

9

Husqvarna 532137077

Drive Shaft

$

$

Not available

10

Husqvarna 532057079

Hardened Washer

$6.49

$

In Stock, Qty 11

0

11

Husqvarna 532131484

Clutch Yoke

$

$

Not available

12

Husqvarna 532700343

Bushing

$

$

Not available

13

Husqvarna 532086447

Plug

$

$

Not available

14

Husqvarna 532137050

Helical Gear

$46.99

$

In Stock, only 1 left!

0

15

Husqvarna 532750436

Clutch Jaw

$

$

Not available

16

Husqvarna 532750369

Grease
(Superseded to 585517301)

$

$

Not available

17

Husqvarna 812000003

E-Ring

$

$

Not available

18

Husqvarna 532850848

Hi-Pro Key

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532125441

Spring Bracket

$

$

Not available
