56 C (954065201-A) - Husqvarna Walk-Behind Mower (1994-07) 22" Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

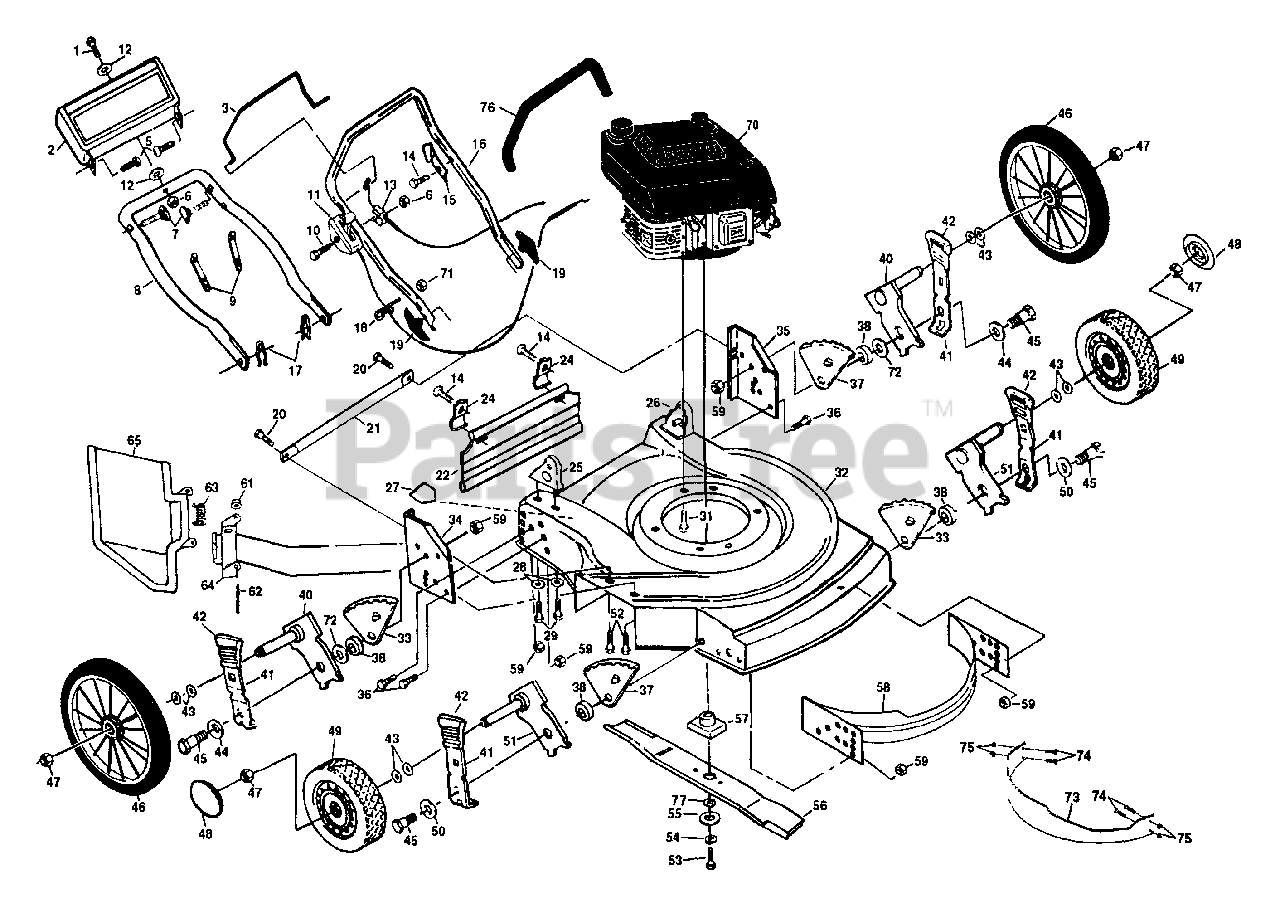

22" Rotary Lawn Mower Parts Diagram

  • Title
1

Husqvarna 532085436

Hex Head Washer Screw 1/4-20 x 1-1/2
(Superseded to 874760424)

$

$

Not available

2

Husqvarna 532800547

Trim Plate

$

$

Not available

3

Husqvarna 532850735

Control Bar

$

$

Not available

5

Husqvarna 532036953

Self-tapping Screw #10-24 x 5/8

$

$

Not available

6

Husqvarna 532063601

Locknut 1 /4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 532131959

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532125293

Lower Handle
(Superseded to 532157081)

$

$

Not available

9

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532144929

Machine Screw 1/4-20 x 2-1/4
(Superseded to 532158755)

$

$

Not available

11

Husqvarna 532144313

Throttle Control

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532143062

Engine Zone Control Cable

$

$

Not available

14

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

15

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532125295

Upper Handle
(Superseded to 532166268)

$

$

Not available

17

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

19

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

20

Husqvarna 532054583

Self-tapping Screw 1/4-20 x 1/2

$

$

Not available

21

Husqvarna 532107611

Support Rod

$

$

Not available

22

Husqvarna 532140539

Rear Skirt

$

$

Not available

24

Husqvarna 532125207

Skirt Bracket
(Superseded to 532192301)

$

$

Not available

25

Husqvarna 532140465

Handle Bracket Assembly (Right)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532140466

Handle Bracket Assembly (Left)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 3 left!

0

29

Husqvarna 532055187

Thread Cutting Screw 5/16-18 x 1-3/4
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

31

Husqvarna 532850998

Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532700693

Lawn Mower Housing

Note: (Includes Key No. 27 & 58)

$

$

Not available

33

Husqvarna 532800368

Wheel Adjusting Bracket (LF/RR)

$

$

Not available

34

Husqvarna 532142837

Wheel Support Bracket (Right)

$

$

Not available

35

Husqvarna 532142838

Wheel Support Bracket (Left)

$14.99

$

Usually ships in 3-10 days

0

36

Husqvarna 874760612

Hex Head Bolt 3/8-16 x 3/4

$4.99

$

In Stock, only 3 left!

0

37

Husqvarna 532800370

Wheel Adjusting Bracket (RF/LR)
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

40

Husqvarna 532125323

Axle Arm Assembly (Rear)
(Superseded to 532751333)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

42

Husqvarna 532132800

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

43

Husqvarna 532057143

Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

44

Husqvarna 532061651

Washer
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

45

Husqvarna 532142748

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

46

Husqvarna 532143595

Wheel & Tire Assembly 16.0 x 2.0

$

$

Not available

47

Husqvarna 532083923

Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

$7.49

$

In Stock, only 2 left!

0

49

Husqvarna 532143593

Wheel & Tire Assembly 8.0 x 2.0
(Superseded to 532435276)

$

$

Not available

$9.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532125061

Axle Arm Assembly (Front)
(Superseded to 532800754)

$

$

Not available

52

Husqvarna 532851856

Hex W/Sems 1/4-20 3/8 Screw
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532850263

Helical Washer 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

55

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

56

$28.99

$

In Stock, only 1 left!

0

57

Husqvarna 532144331

Blade Adapter
(Superseded to 532144229)

$

$

Not available

58

Husqvarna 532139771

Front Baffle & Rear
(Superseded to 532700929)

$

$

Not available

59

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

61

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532851854

Hinge Rod
(Superseded to 532147286)

$8.99

$

In Stock, Qty 9

0

63

Husqvarna 532851855

Torsion Spring
(Superseded to 532411832)

$5.99

$

In Stock, only 4 left!

0

64

Husqvarna 532125175

Housing Bracket Assembly
(Superseded to 532851852)

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532134253

Discharge Guard

$

$

Not available

69

Husqvarna 532144333

Thread Rolling Screw #10-32 x 5/8

$2.49

$

Usually ships in 3-10 days

0

70

Engine - Kawasaki Model No. FC150V

Note: This part must be purchased through an authorized Kawasaki dealer.

$

$

Not available

71

Husqvarna 873510400

Keps Locknut 1 /4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

72

Husqvarna 532088348

Flat Washer 3/8

$7.49

$

In Stock, Qty 6

0

73

Husqvarna 532143620

Mulcher Baffle

$

$

Not available

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532850724

Foam Grip
(Superseded to 585161003)

$

$

Not available

77

Husqvarna 532067510

Washer
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

Husqvarna 532145639

Owner's Manual (English/French)

$

$

Not available

Husqvarna 532850788

Decal (Trim Plate)

$

$

Not available
