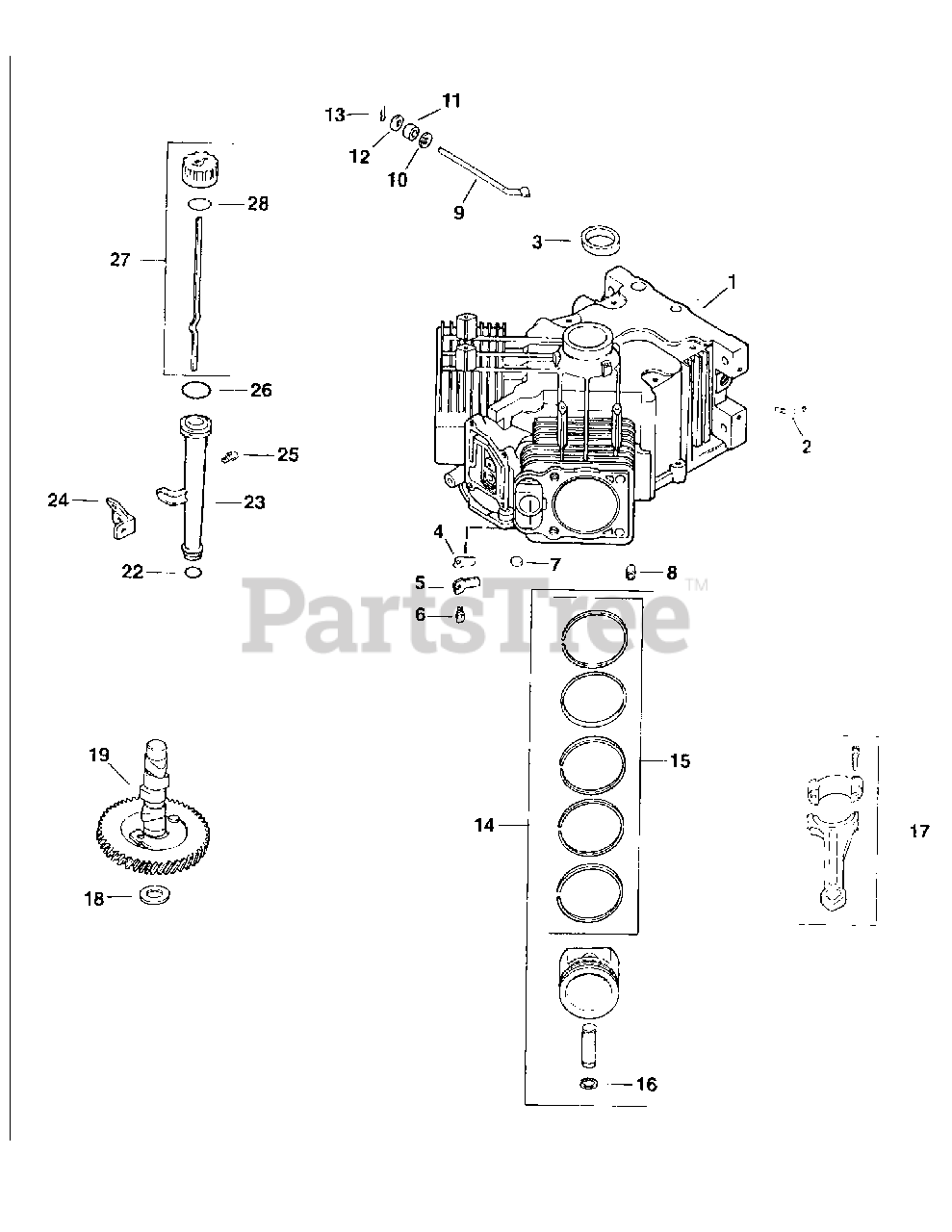

55AF3B7J195 - MTD Pro Walk-Behind Mower Kohler Engine Crankcase Parts Diagram

Pro Walk-Behind Mower

Kohler Engine Crankcase Parts Diagram

  • Title

1

MTD n/a

Crankcase

$

$

Currently unavailable

2

MTD KH-24-294-13

Fitting

$

$

Not available

3

MTD KH-24-032-19-S

Seal, Oil

$7.49

$

In Stock, Qty 20+

0

4

MTD KH-24-402-05-S

Reed, Breather
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

5

MTD KH-24-018-04

Retainer, Reed

$

$

Not available

6

MTD KH-M-0545010

Screw, Hex Flange

$

$

Not available

7

MTD KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, only 2 left!

0

8

MTD KH-24-380-16-S

Pin, Dowel Locating

$4.49

$

In Stock, only 3 left!

0

9

MTD KH-24-144-01

Shaft, Governor Cross

$

$

Not available

10

MTD KH-X-25-102-S

Washer, Plain 1/4"

$2.49

$

In Stock, Qty 5

0

11

MTD KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

12

MTD KH-M-631005

Washer, Plain 6mm

$

$

Not available

13

MTD KH-12-380-04

Pin, Hitch

$

$

Not available

14

MTD KH-24-874-42-S

Piston w/Ring Set (Std.)
(Superseded to KH-24-874-54-S)

$250.99

$

In Stock, only 3 left!

0

14

MTD KH-24-874-44-S

Piston w/Ring Set (.25)
(Superseded to KH-24-874-56-S)

$289.99

$

Usually ships in 2-5 days

0

14

MTD KH-24-874-11

Piston w/Ring Set (.50)
(Superseded to KH-24-874-45-S)

$289.99

$

Usually ships in 2-5 days

0

15

MTD KH-24-108-09-S

Ring Set (Std.)
(Superseded to KH-24-108-20-S)

$

$

Not available

15

MTD KH-24-108-10-S

Ring Set (.25)

$

$

Not available

15

MTD KH-24-108-22-S

Ring Set (.50)

$

$

Not available

16

MTD KH-24-018-01-S

Retainer, Piston Pin

$2.99

$

In Stock, Qty 7

0

17

MTD KH-24-067-28-S

Connecting Rod (Std.)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 4 left!

0

17

MTD KH-24-067-14

Connecting Rod (.25)

Note: NLA

$

$

Not available

18

MTD KH-12-422-07-S

Shim, Camshaft (A.R.) (White)

$4.49

$

Usually ships in 2-5 days

0

18

MTD KH-12-422-08-S

Shim, Camshaft (A.R.) (Blue)

$2.49

$

In Stock, only 2 left!

0

18

MTD KH-12-422-09-S

Shim, Camshaft (A.R.) (Red)

$2.49

$

In Stock, only 1 left!

0

18

MTD KH-12-422-10-S

Shim, Camshaft (A.R.) (Yellow)

$2.49

$

In Stock, only 1 left!

0

18

MTD KH-12-422-11-S

Shim, Camshaft (A.R.) (Green)

$2.49

$

Usually ships in 2-5 days

0

18

MTD KH-12-422-12-S

Shim, Camshaft (A.R.) (Gray)

$2.99

$

Usually ships in 2-5 days

0

18

MTD KH-12-422-13-S

Shim, Camshaft (A.R.) (Black)

$2.99

$

Usually ships in 2-5 days

0

19

MTD KH-24-012-10-S

Camshaft
(Superseded to KH-24-012-23-S)

$164.99

$

Usually ships in 3-6 days

0

22

MTD KH-12-153-01-S

O-Ring

$4.99

$

In Stock, Qty 16

0

23

MTD KH-32-755-04-S

Tube, Oil Fill

$

$

Not available

24

MTD KH-24-126-19

Bracket, Oil Fill Tube
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

25

MTD KH-M-545016-S

Screw, Hex Flange
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

26

MTD KH-12-153-02-S

O-Ring

$2.49

$

In Stock, Qty 8

0

27

MTD KH-24-038-04-S

Dipstick Assembly

$19.99

$

In Stock, only 1 left!

0

28

MTD KH-25-153-02-S

O-Ring

$2.49

$

In Stock, only 1 left!
