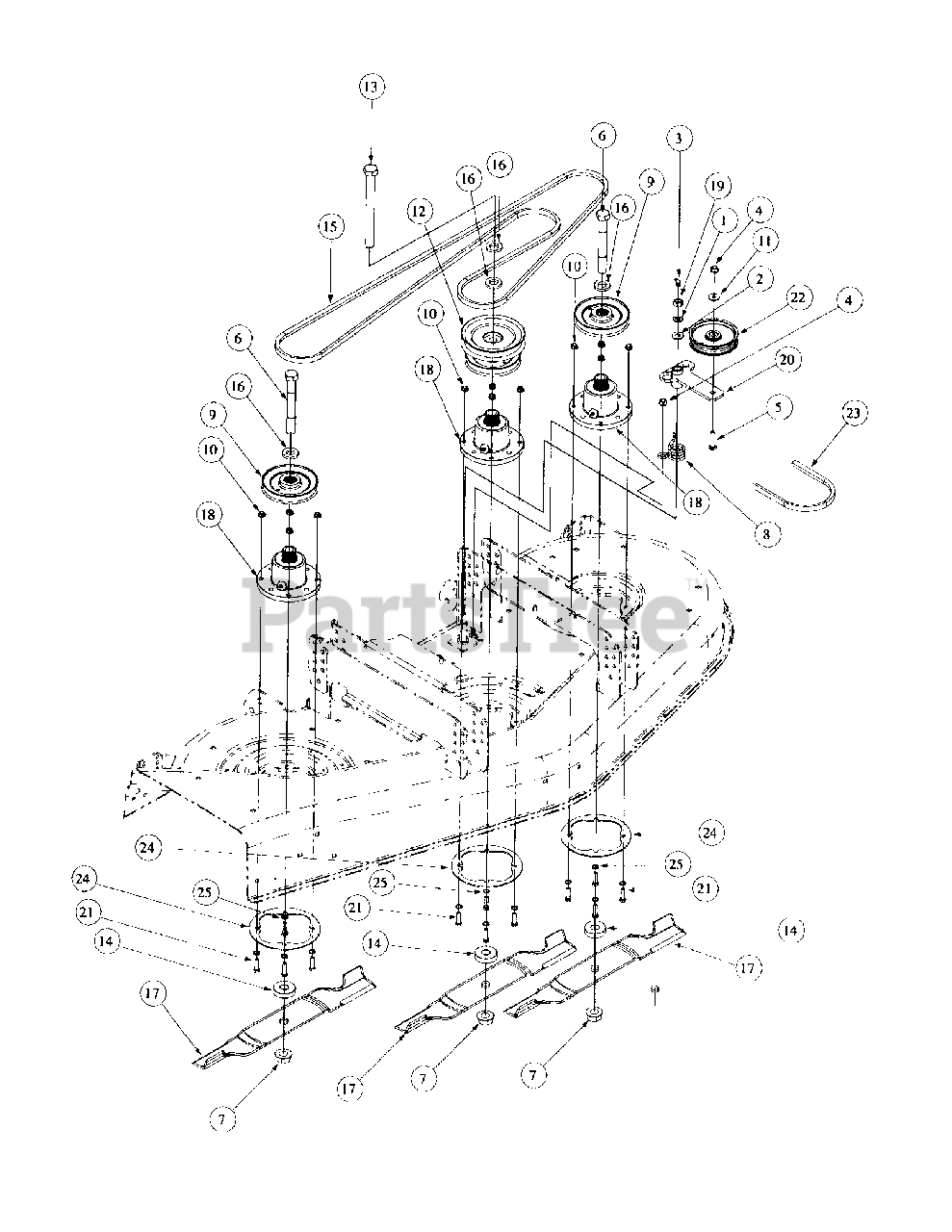

55AF3B7J195 - MTD Pro Walk-Behind Mower Deck Spindle Assembly Parts Diagram

Pro Walk-Behind Mower

Deck Spindle Assembly Parts Diagram

  • Title
1

MTD 936-0921

Lock, Washer, 1/2, Zinc
(Superseded to 736-0921)

$4.49

$

In Stock, only 2 left!

0

2

MTD 00010958

Flat, Washer, 1/2, Zinc

$

$

Not available

3

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

4

MTD 00022560

Hex, Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0560

Hex Carriage, Screw, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 11

0

6

MTD 01004185

Hex, Cap Screw, 3/4-16, 6.00

$41.99

$

In Stock, only 3 left!

0

7

MTD 712-3078

Hex, Flange, Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

8

MTD 932-3009

Idler Torsion Spring

$24.99

$

In Stock, only 4 left!

0

9

MTD 756-3058

Pulley-V, 4.65 P.D.

$

$

Not available

10

MTD 712-3004A

Hex flange, Lock, Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-3052

Flat Washer, 406 ID x 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

12

MTD 01001205

Double Pulley

$191.99

$

Usually ships in 3-6 days

0

13

MTD 01002074

Hex, Cap, Screw, 3/4-16, 8.00
(Superseded to 02001296)

$37.99

$

In Stock, only 1 left!

0

14

MTD 01002564

Spacer, .76 ID x 2.0 OD x 477

$20.99

$

In Stock, only 2 left!

0

15

MTD 01004752

V-Belt, "A" Sec x 122" Long
(Superseded to 01004752P)

$93.99

$

In Stock, only 4 left!

0

16

MTD 01003123

Spacer, 812 ID x .268 Long
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

17

MTD 01004719-0637

High Lift Blade, 20.5

$41.99

$

In Stock, Qty 15

0

18

MTD 01003530P

60 Deck, Aluminum Spindle Assembly

$389.99

$

Usually ships in 3-6 days

0

19

MTD 912-3066

Hex Nut, 1/2-20

$6.99

$

In Stock, only 1 left!

0

20

MTD 01003801

Idler Arm Assembly, Bearing, 60 Deck, Black

Note: NLA

$

$

Not available

21

MTD 00013116

Hex Cap Screw, 5/16-18, 1-1/4

$5.99

$

In Stock, only 1 left!

0

22

MTD 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

23

MTD 01004090

V-Belt, B Section x 68.04
(Superseded to 01004090P)

$81.99

$

Usually ships in 3-6 days

0

24

MTD 01004263

Reinforcement, Deck, Plate

$

$

Not available

25

MTD 00011075

Flat Washer, 5/16

$4.49

$

Usually ships in 3-6 days

0
