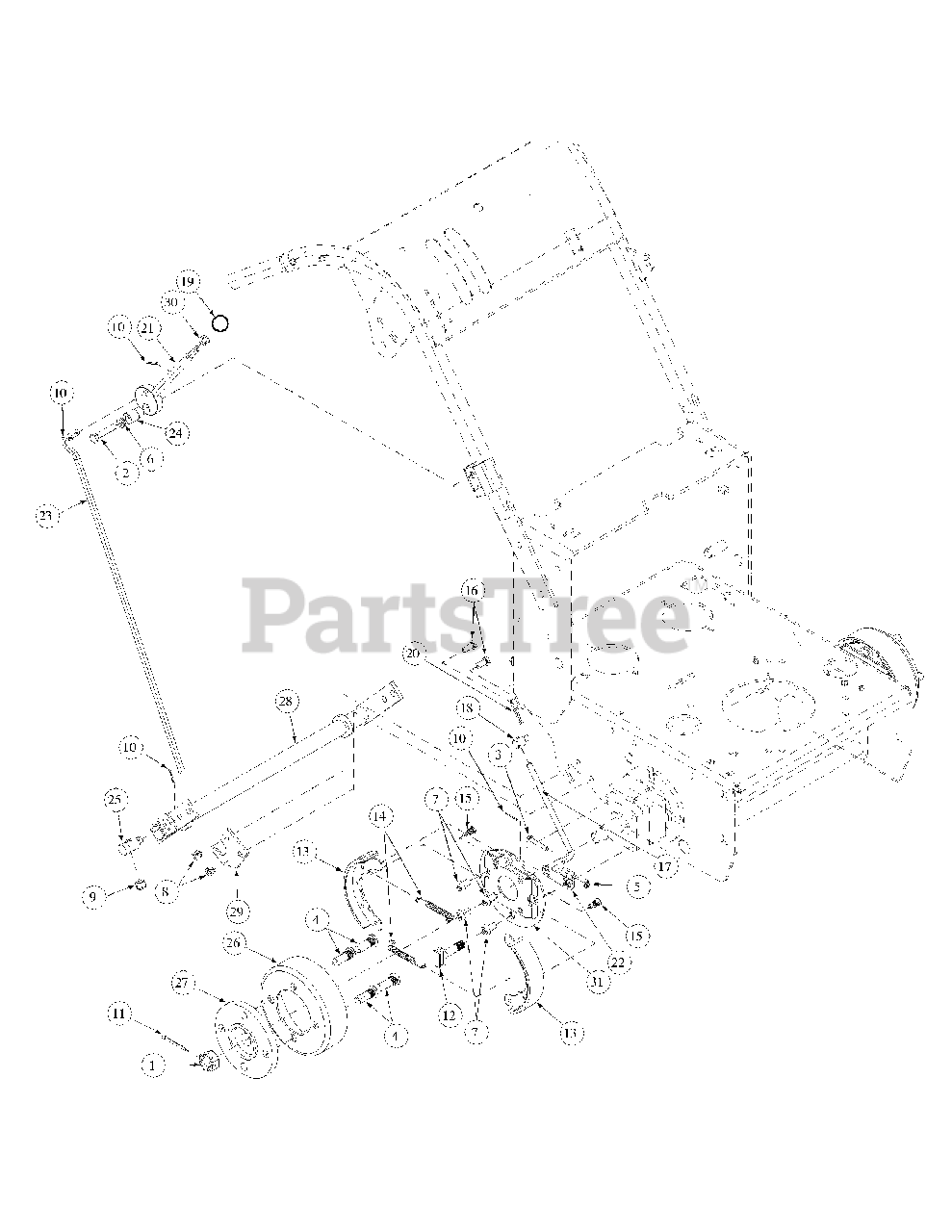

55AE331R195 - MTD Pro Walk-Behind Mower Hydro Brake Assembly Parts Diagram

Pro Walk-Behind Mower

Hydro Brake Assembly Parts Diagram

  • Title
1

MTD 00003067

Nut, Castle, 3/4-16

$

$

Not available

2

MTD 00008495

Capscrew, 3/8-16 x 1" Grade 5 Zinc

$6.99

$

In Stock, Qty 8

0

3

MTD 00011446

Cap Screw, 1/4-20 x 1.50, Grade 5

$

$

Not available

4

MTD 00012081

Bolt, Wheel, 1/2-20 x 1-3/8

$

$

Not available

5

MTD 00012152

Lock Nut, Nylon Insert, 1/4-20 Grade A

$4.49

$

In Stock, only 1 left!

0

6

MTD 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

7

MTD 00012161

Capscrew, Socket Button Hd., 3/8-16 x 3/4 Zinc

$

$

Not available

8

MTD 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

9

MTD 712-04065

Nut, Nylon Insert, 3/8-16 Grade A

$3.99

$

In Stock, Qty 20+

0

10

MTD 00012204

Cotter Pin, 3/32 x 3/4, Zinc

$

$

Not available

11

MTD 00012380

Cotter Pin, 5/32 x 1-1/2 Zinc

$

$

Not available

12

MTD 00012522

Brake Cam, Actuating

$

$

Not available

13

MTD 00012553

Brake Shoe w/Lining, 6 x 1-1/4

$50.99

$

Usually ships in 3-6 days

0

14

MTD 00012554

Brake Spring, Tension

$

$

Not available

15

MTD 00012555

Brake Spring, Anti-Vibration

$

$

Not available

16

MTD 00013406

Cap Screw, 5/16-18 x 3/4, Grade 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

MTD 00021930

Brake Rod

$

$

Not available

18

MTD 00021943

Swivel Joint

$20.99

$

In Stock, only 1 left!

0

19

MTD 00021952

Red Knob, Shift w/Insert

$17.99

$

Usually ships in 3-6 days

0

20

MTD 00021956

Hair Pin 3/8"-1/2"
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

21

MTD 00063173

Lever Assembly, Brake

$

$

Not available

22

MTD 00063679

Brake Clamp, Control Assembly Hydro

$

$

Not available

23

MTD 00063727

Rod, Long Brake, Hydro WB

$

$

Not available

24

MTD 00063612

Pivot Spacer, Hydro WB

$

$

Not available

25

MTD 00063766

Brake Pull Joint

$

$

Not available

26

MTD 01001383

Brake Drum
(Superseded to 01001382-0637)

$

$

Not available

27

MTD 01001384-0637

Hub, Wheel Motor

$170.99

$

Usually ships in 3-6 days

0

28

MTD 01001387

Brake Pivot Shaft Assembly

Note: NLA

$

$

Not available

29

MTD 01002890

Pivot Mount, Brake

$

$

Not available

30

MTD 01002511

Nut, 3/8-16, Jam, Grade 2

$5.99

$

Usually ships in 3-6 days

0

31

MTD 01003020

Brake Backing Plate

$

$

Not available
