55AE323S195 - MTD Pro Walk-Behind Mower Hydro Vanguard Engine Deck Assy Parts Diagram

Pro Walk-Behind Mower

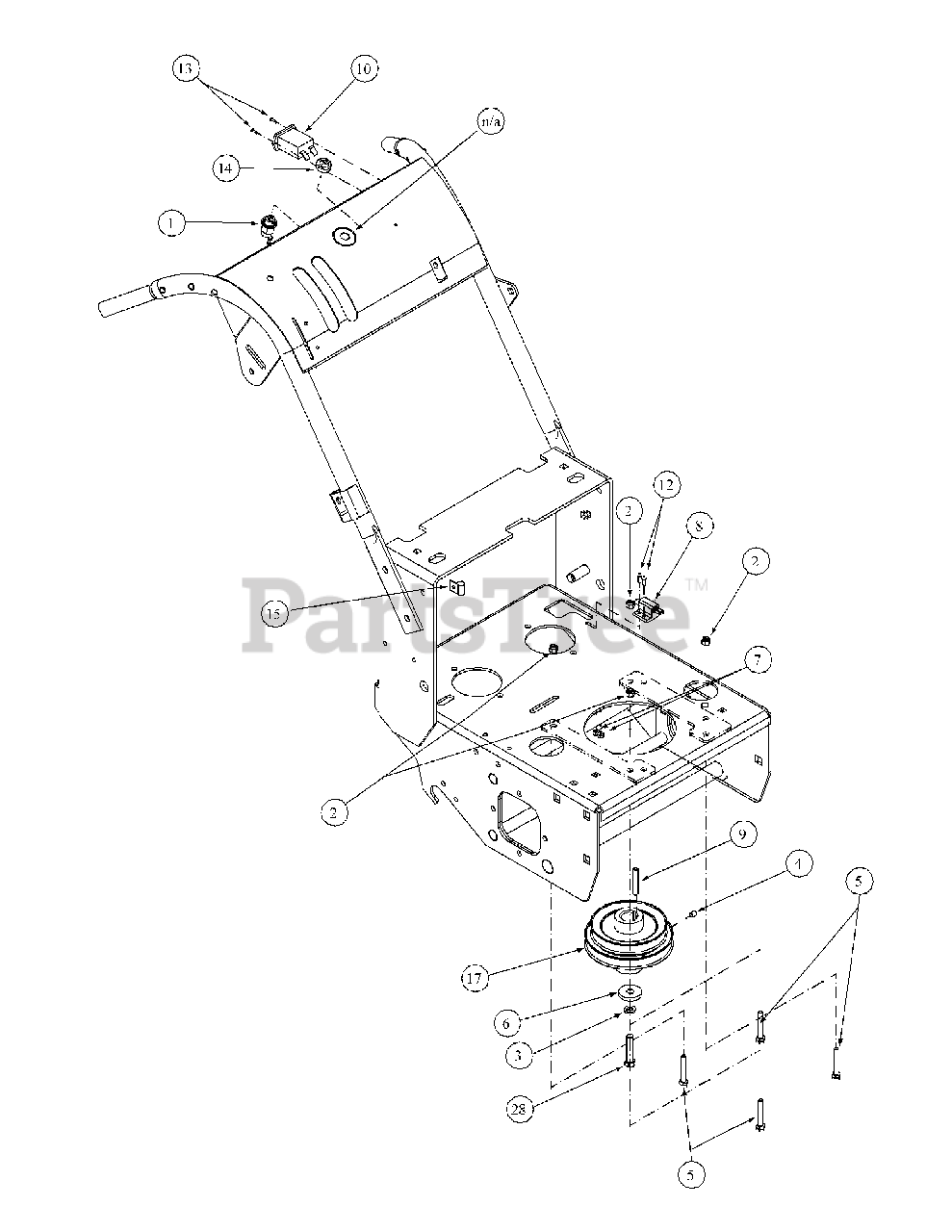

Hydro Vanguard Engine Deck Assy Parts Diagram

  • Title

1

MTD 00010943P

Ignition Switch ON/OFF

$

$

Not available

2

MTD 00012165

Nut, Nylock 5/16-18

$4.99

$

In Stock, only 1 left!

0

3

MTD 00012195

Lock Washer, 7/16

$

$

Not available

4

MTD 00012492

Nylock Screw, 5/16-18 x 3/8

$

$

Not available

5

MTD 00013198

HHCS, 5/16-18 x 3/8
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

6

MTD 00013675

Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

7

MTD 00014608

Nut, Lock Nylon, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

8

MTD 00018324

Delta Switch

$

$

Not available

9

MTD 00021517

Key Stick, 1/4 x 1/4 x 2

$8.99

$

In Stock, only 1 left!

0

10

MTD 00023709P

Meter

$

$

Not available

12

MTD 00030906

Screw 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

13

MTD 00031635

Rivet

$

$

Not available

14

MTD 00032097

Nut w/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

15

MTD 00060807

Support Clamp 3/8

$

$

Not available

17

MTD 01000163

Double Pulley

$

$

Not available

28

MTD 01001082

Capscrew, 7/16-20 x 2"

$6.99

$

Usually ships in 3-6 days

0

MTD 00023887

Belt Hydro Pump

Note: (not shown)

$51.99

$

In Stock, only 2 left!

0

MTD 00062980

Harness Wire, Pull Start

Note: (not shown)

$

$

Not available

MTD 01000947

Engine, Vanguard Verticle

Note: NLA (not shown)

$

$

Not available

MTD 01000981

Capscrew w/Lockwasher, M x 1.25 x 2

Note: (not shown)

$

$

Not available

MTD 01000982

Manifold

Note: NLA (not shown)

$

$

Not available

MTD 01000983

Muffler Clamp

Note: NLA (not shown)

$

$

Not available

MTD 01000984

Muffler Bracket Assembly

Note: (not shown)

$

$

Not available

MTD 01001041

Debris Guard

Note: (not shown)

$

$

Not available

MTD 01001042

Screw, M6 x 1.0 x 12mm

Note: (not shown)

$

$

Not available

MTD 01001043

Flange Hex Screw, M5 x 1.0 x 8mm

Note: (not shown)

$

$

Not available

MTD 01001044

Debris Guard Bracket

Note: NLA (not shown)

$

$

Not available

MTD 01002230

Harness Assembly, Adaptor

Note: (not shown)

$

$

Not available

Engine Oil, 10w40, Ounces 48

$

$

Not available
