55AE223T195 - MTD Pro Walk-Behind Mower (2000) Handle Assembly Parts Diagram

Pro Walk-Behind Mower

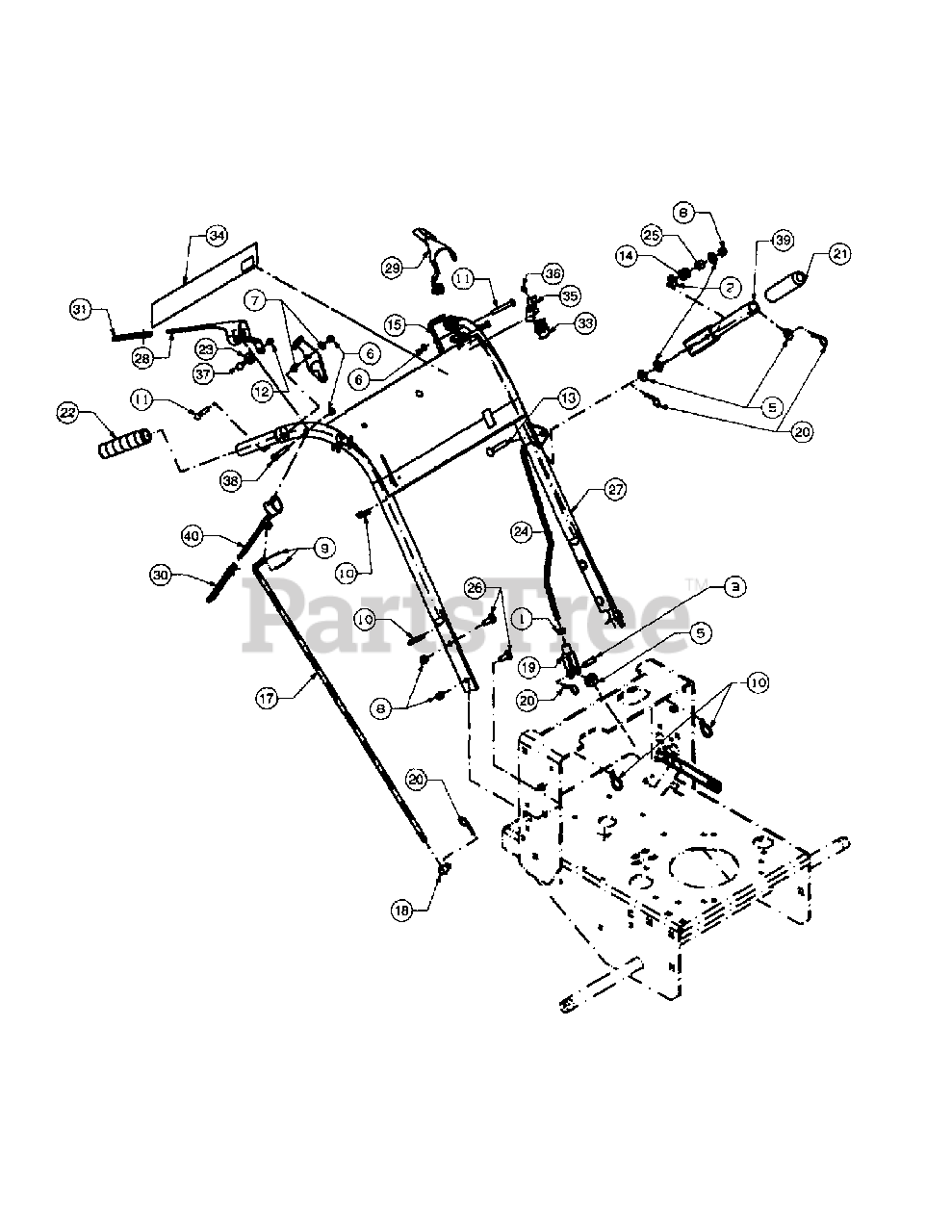

Handle Assembly Parts Diagram

  • Title

1

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

MTD 00006168

Flat Washer, 3/8 Zinc
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

3

MTD 00009678

Clevis Pin, 3/8 x 1-1/8 Zinc
(Superseded to 711-05735)

$12.99

$

Usually ships in 3-6 days

0

4

MTD 00011211

Grip, Neutral Latch, 1.25"

$8.99

$

In Stock, only 2 left!

0

5

MTD 00012158

Flat Washer, 3/8 Zinc

$4.49

$

In Stock, Qty 9

0

6

MTD 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

7

MTD 00012169

Flat Washer, 5/16 Zinc

$4.49

$

In Stock, only 2 left!

0

8

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

MTD 00012204

Cotter Pin, 3/32 x 3/4, Zinc

$

$

Not available

10

MTD 725-0157

Cable Tie, 3/16 x. 05 x 7.4

$3.99

$

In Stock, only 2 left!

0

11

MTD 00013198

Hex Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

12

MTD 712-04177

Lock Nut, Nylon Insert

$6.99

$

In Stock, only 4 left!

0

13

MTD 00014270

Carriage Bolt, 3/8-16 x 2
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

14

MTD 00021797

Spring, .850 OD x 1

$9.49

$

Usually ships in 3-6 days

0

15

MTD 00021858

Neutral Latch, Left Hand

Note: NLA

$

$

Not available

15

MTD 00021910

Neutral Latch, Right Hand

$

$

Not available

17

MTD 00021927

Steering Control Rod

$33.99

$

Usually ships in 3-6 days

0

18

MTD 00021943

Joint Swivel

$20.99

$

In Stock, only 1 left!

0

19

MTD 00021955

Yoke, 3/8-16 Female

$42.99

$

In Stock, only 1 left!

0

20

MTD 00021956

Hair Pin 3/8-1/2
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

21

MTD 00022223

Handle Grip, Black, 1"

$

$

Not available

22

MTD 00030378

Plastic Handle Grip, Black, 4-5/8

$

$

Not available

23

MTD 00071691

Control Rod, Hydro Spacer

$11.99

$

In Stock, only 1 left!

0

24

MTD 00071879

Hydro Blade Clutch Rod Base

$50.99

$

In Stock, only 1 left!

0

25

MTD 00076730

Spring Sleeve

$5.99

$

Usually ships in 3-6 days

0

26

MTD 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 7

0

27

MTD 01001556-0637

Handle Assembly Hydro

$

$

Not available

28

MTD 01001699

Operator Presence Control RH

Note: NLA

$

$

Not available

29

MTD 01001700

Operator Presence Control LH

$

$

Not available

30

MTD 01001714

Control Sleeve, Black

$11.99

$

Usually ships in 3-6 days

0

31

MTD 01001715

Operator Control Sleeve, Yellow

$11.99

$

Usually ships in 3-6 days

0

32

MTD 01001716

Harness Assembly Adapter

$

$

Not available

33

MTD 01001717

Switch Mounting Snap
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

34

MTD 01001724

Handle Label, Rear, 5 Speed

Note: NLA

$

$

Not available

35

MTD 01001863

Operator Presence Return Spring

$

$

Not available

36

MTD 01001864

Hex Index Washer Screw, 0.500
(Superseded to 1767754)

$

$

Not available

37

MTD 01001919

Shoulder Screw, .38 x .412, 1/4-28
(Superseded to 938-0826)

$12.99

$

In Stock, Qty 5

0

38

MTD 01001972

Hex Cap Screw, 5/16-18, 2.00

$3.99

$

Usually ships in 3-6 days

0

39

MTD 01003210

Blade Clutch Lever

Note: NLA

$

$

Not available

40

MTD 01001561

Lever Assembly Control

$

$

Not available
