55AE210R195 - MTD Pro Walk-Behind Mower (2000) Kohler Engine Head, Valve & Breather Style B Parts Diagram

Pro Walk-Behind Mower

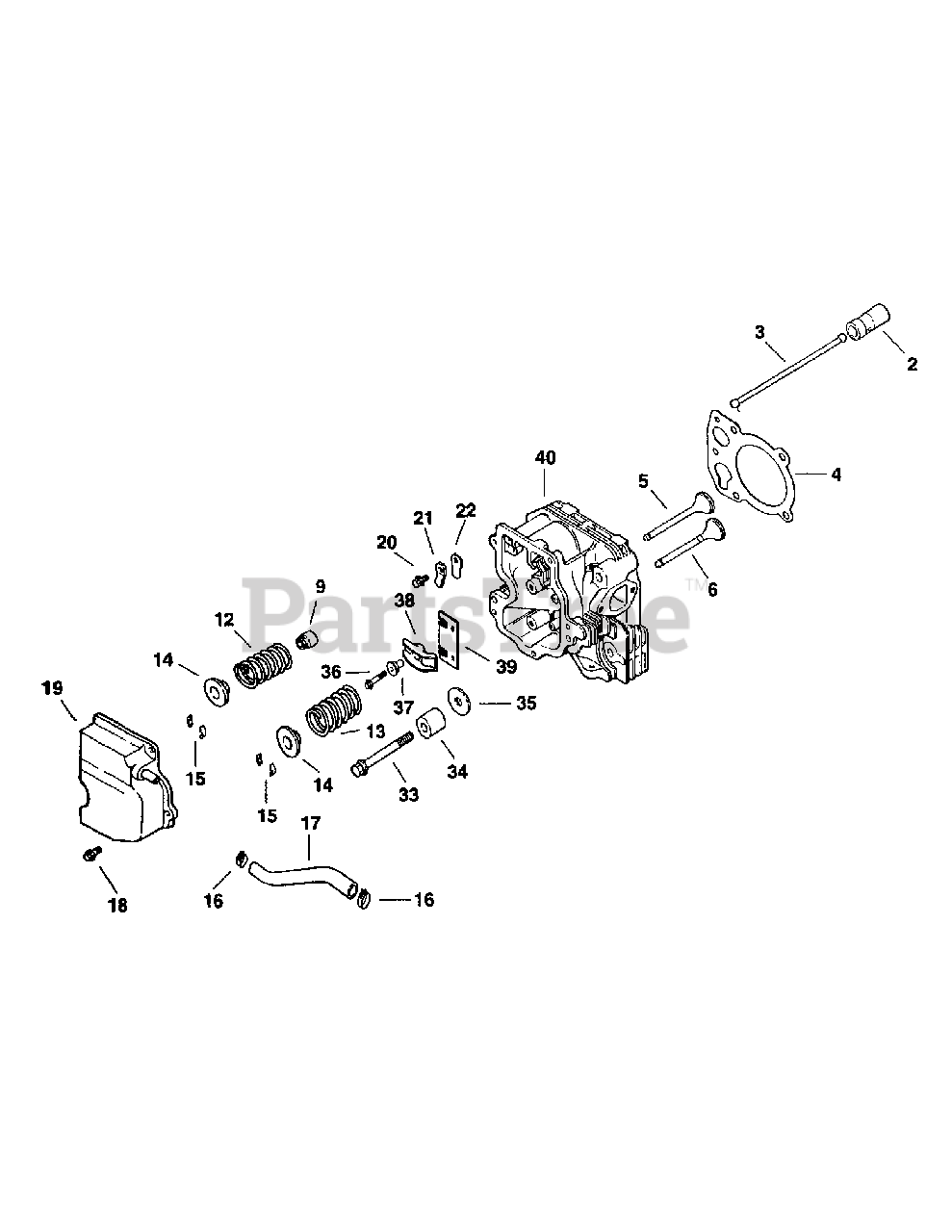

Kohler Engine Head, Valve & Breather Style B Parts Diagram

  • Title

2

MTD KH-25-351-10-S

Lifter, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

3

MTD KH-12-411-04-S

Rod, Push

$4.49

$

In Stock, only 1 left!

0

4

MTD KH-12-041-08-S

Gasket, Cylinder Head

$20.99

$

Usually ships in 2-5 days

0

5

MTD KH-12-017-01

Valve, Intake (Std.)

$

$

Not available

5

MTD KH-12-017-02

Valve, Intake (.25 o.s.)

$

$

Not available

6

MTD KH-12-016-01

Valve, Exhaust (Std.)

$

$

Not available

6

MTD KH-12-016-02

Valve, Exhaust (.25 o.s.)

$

$

Not available

9

MTD KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

12

MTD KH-12-089-34-S

Spring, Intake Valve

$10.99

$

In Stock, only 2 left!

0

13

MTD KH-12-089-15

Spring, Exhaust Valve

$

$

Not available

14

MTD KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

15

MTD KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 2 left!

0

16

MTD KH-25-237-31-S

Clamp, Hose

$4.99

$

In Stock, only 2 left!

0

17

MTD KH-12-326-03

Hose, Breather

$

$

Not available

18

MTD KH-M-645020-S

Screw, Hex Flange
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

19

MTD KH-12-755-102-S

Cover, Valve w/Nipple

$86.99

$

Usually ships in 2-5 days

0

20

MTD KH-M-0545010

Screw, Hex Flange

$

$

Not available

21

MTD KH-66-018-04-S

Retainer, Breather Reed

$4.99

$

In Stock, Qty 6

0

22

MTD KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

33

MTD KH-20-086-02-S

Screw, Hex Flange

$3.99

$

In Stock, Qty 17

0

34

MTD KH-12-112-13

Spacer, Head Bolt Exhaust Port

$

$

Not available

35

MTD KH-12-468-05

Washer, Plain 13/32"

$

$

Not available

36

MTD KH-M-0640034

Screw, Hex Flange

$

$

Not available

37

MTD KH-12-755-74

Pivot, Rocker Arm

$

$

Not available

38

MTD n/a

Arm, Rocker

$

$

Currently unavailable

39

MTD n/a

Plate, Guide

$

$

Currently unavailable

40

MTD KH-12-755-81

Head, Cylinder

$

$

Not available
