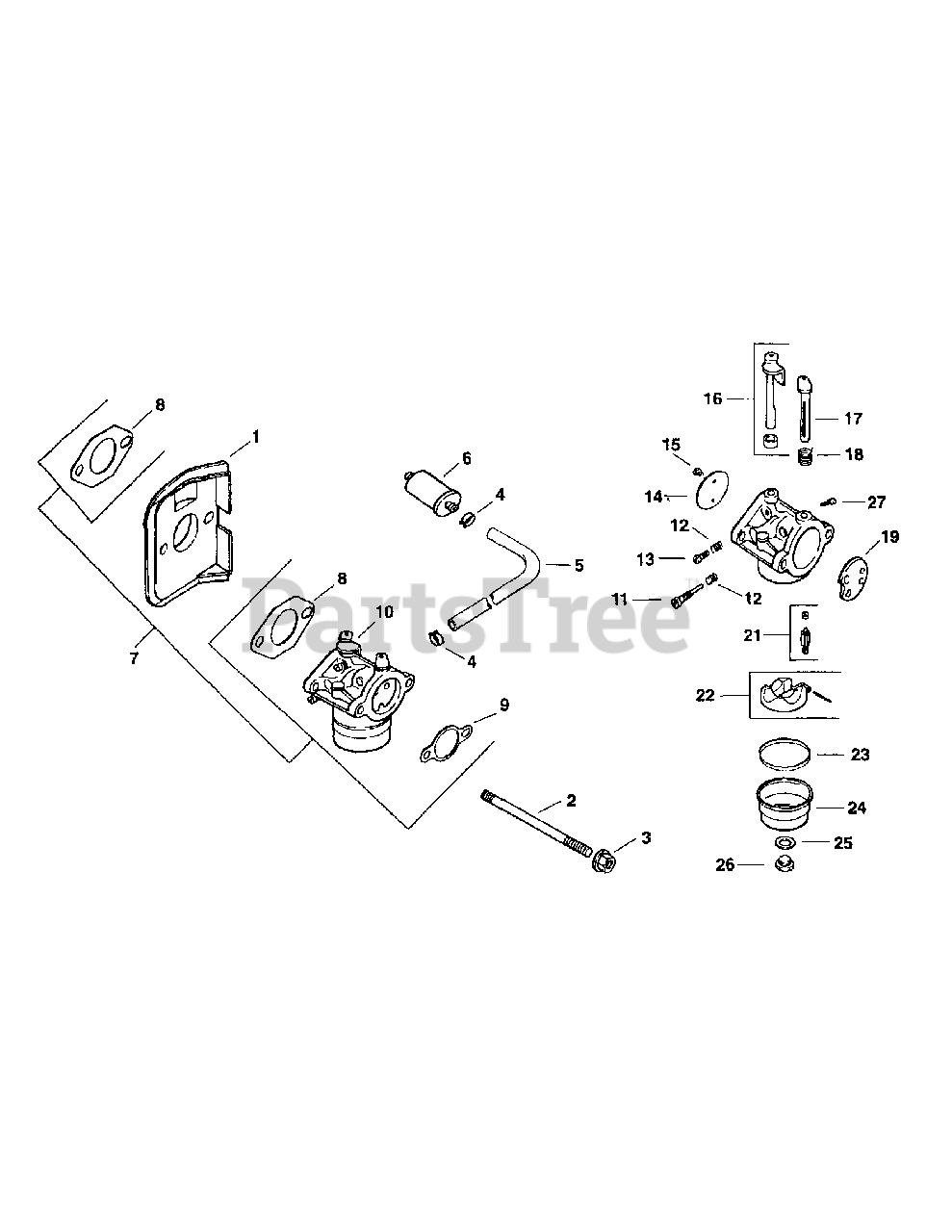

55AD210Q195 - MTD Pro Walk-Behind Mower Kohler Engine Fuel System Parts Diagram

Pro Walk-Behind Mower

Kohler Engine Fuel System Parts Diagram

  • Title

1

MTD KH-12-265-08-S

Deflector, Heat

$9.49

$

In Stock, only 2 left!

0

2

MTD KH-M-0629122

Stud, Carburetor

Note: NLA

$

$

Not available

3

MTD KH-M-641060-S

Nut, Hex Flange

$4.49

$

In Stock, Qty 8

0

4

MTD KH-25-237-31-S

Clamp, Hose

$4.99

$

In Stock, only 3 left!

0

5

MTD KH-25-353-02

Line, Fuel 3"

$

$

Not available

6

MTD KH-24-050-13-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

7

MTD KH-12-853-140-S

Carburetor Kit

$269.99

$

In Stock, only 1 left!

0

8

MTD KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 14

0

9

MTD KH-12-041-02

Gasket, Air Filter

$2.99

$

In Stock, Qty 5

0

10

MTD n/a

Not Available Separately

$

$

Currently unavailable

11

MTD KH-12-368-01

Needle, idle Fuel Adjusting

Note: NLA

$

$

Not available

12

MTD KH-12-089-09

Spring, Idle Fuel & Idle Speed Adj.

$

$

Not available

13

MTD KH-12-086-04

Screw, Idle Speed Adjusting

$

$

Not available

14

MTD KH-12-146-03

Plate, Throttle

$

$

Not available

15

MTD KH-25-086-27

Screw, Valve

$

$

Not available

16

MTD KH-12-144-09

Shaft, Throttle w/Lever 8 Seal

$

$

Not available

17

MTD KH-12-144-08

Shaft, Choke

$

$

Not available

18

MTD KH-12-089-10

Spring, Choke Return

Note: NLA

$

$

Not available

19

MTD KH-12-146-02

Plate, Choke

$

$

Not available

21

MTD n/a

Needle & Seat

$

$

Currently unavailable

22

MTD KH-12-757-02

Float Kit

$

$

Not available

23

MTD KH-12-041-05

Gasket, Bowl

$

$

Not available

24

MTD KH-12-104-01

Bowl, Fuel

$

$

Not available

25

MTD KH-25-041-03

Gasket, Bowl Retainer Screw

$

$

Not available

26

MTD KH-12-086-05

Screw, Bowl Retainer

$

$

Not available
