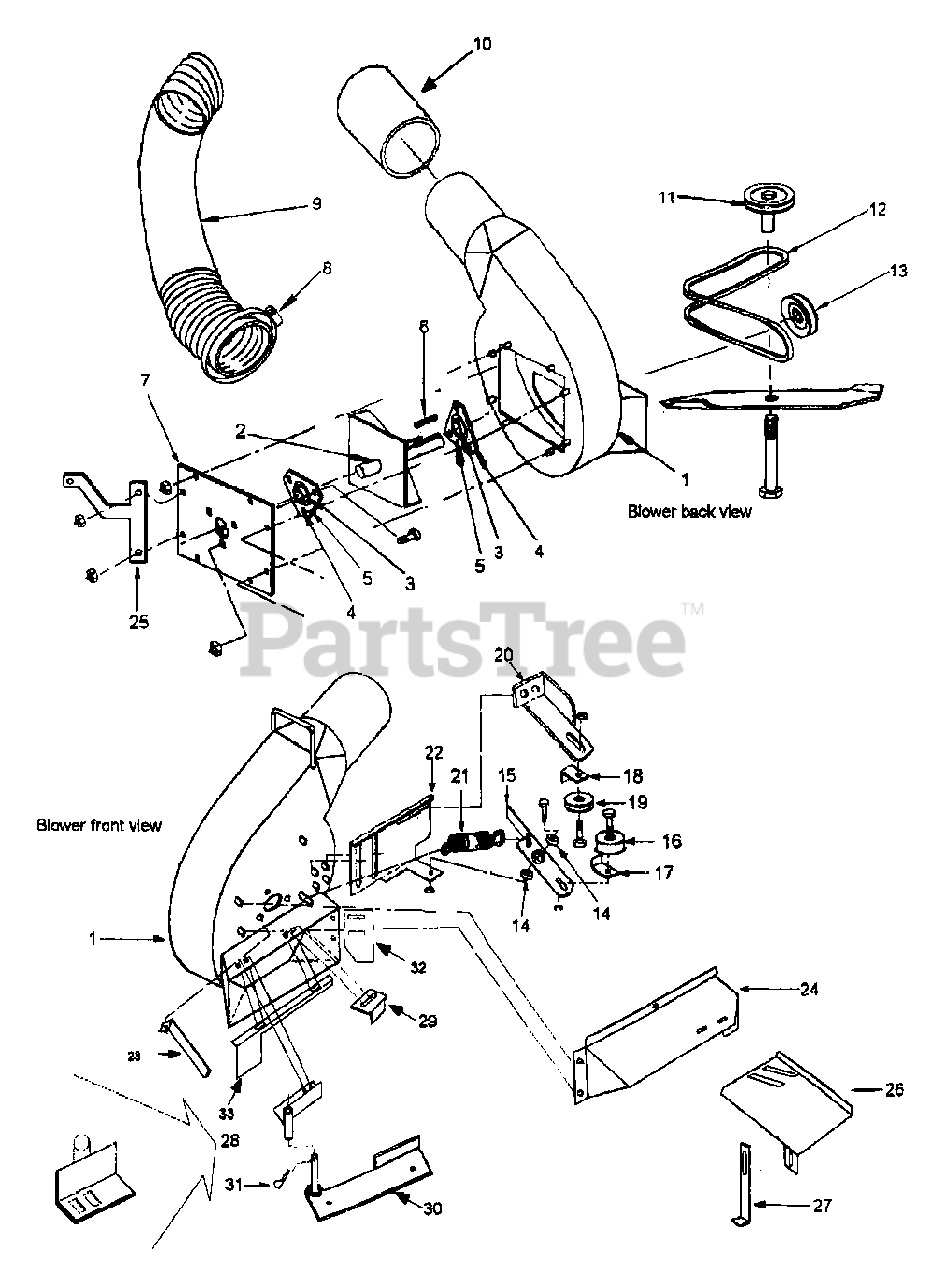

558 (590-558-150) - Cub Cadet Belt Driven Vacuum Collector att3 Blower View 2005 & Prior Parts Diagram

Belt Driven Vacuum Collector

Blower View 2005 & Prior Parts Diagram

  • Title
1

Cub Cadet TS-2002

Blower Canister

$

$

Not available

$

$

Not available

3

Cub Cadet TS-2150

Fan Bearing w/ collar
(Superseded to TS-2150P)

$

$

Not available

4

Cub Cadet TS-2162

Bearing Flangette w/ grease zerk

$

$

Not available

5

Cub Cadet TS-2160

Bearing Flangette

$26.99

$

In Stock, only 1 left!

0

6

Cub Cadet TS-2125

Key 1/4" x 1"
(Superseded to 714-0128)

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet TS-2084

Blower Cover Plate

$

$

Not available

8

Cub Cadet TS-30407

6" Hose Clamp

$

$

Not available

9

Cub Cadet TS-30046

6" x 43" Hose

$

$

Not available

10

Cub Cadet TS-20305

6" Hose Insert

$

$

Not available

11

Cub Cadet TS-25355

Deck Pulley
(Superseded to TS-25455)

$

$

Not available

$

$

Not available

13

Cub Cadet TS-2418

Blower Drive Pulley 3.5"

$

$

Not available

14

Cub Cadet TS-2030

Idler Arm Bearing

$

$

Not available

15

Cub Cadet TS-2033

Idler Arm

$

$

Not available

16

Cub Cadet TS-16888

Flat Idler Pulley 3.25"

$

$

Not available

17

Cub Cadet TS-17103

Flat Idler Pulley Bracket

$

$

Not available

18

Cub Cadet TS-18104

V-Idler Pulley Bracket

$

$

Not available

19

Cub Cadet TS-19188

V-Idler Pulley 3.5"

$

$

Not available

20

Cub Cadet TS-2045

V Pulley Bracket

$

$

Not available

21

Cub Cadet TS-2483

Idler Spring

$

$

Not available

22

Cub Cadet TS-2040

Blower Pulley Bracket

$

$

Not available

23

Cub Cadet TS-2069

Fan Pulley Belt Bracket

$

$

Not available

24

Cub Cadet TS-2050

Blower Belt Cover

$

$

Not available

25

Cub Cadet TS-2042

Pulley Bracket Support

$

$

Not available

26

Cub Cadet TS-2090

Belt Guard Leg

$

$

Not available

27

Cub Cadet TS-2092

Belt Guard Leg

$

$

Not available

28

Cub Cadet TS-3710

Blower Mount Front

$

$

Not available

29

Cub Cadet TS-3720

Blower Support Bracket

$

$

Not available

30

Cub Cadet TS-3730

Blower Mount Deck

$

$

Not available

31

Hair Spring Cotter # 7

Hair Spring Cotter # 7

Note: Purchase Locally

$

$

Not available

32

Cub Cadet TS-3740

Blower Tab

$

$

Not available

33

Cub Cadet TS-3750

Blower Blocking Plate

$

$

Not available
