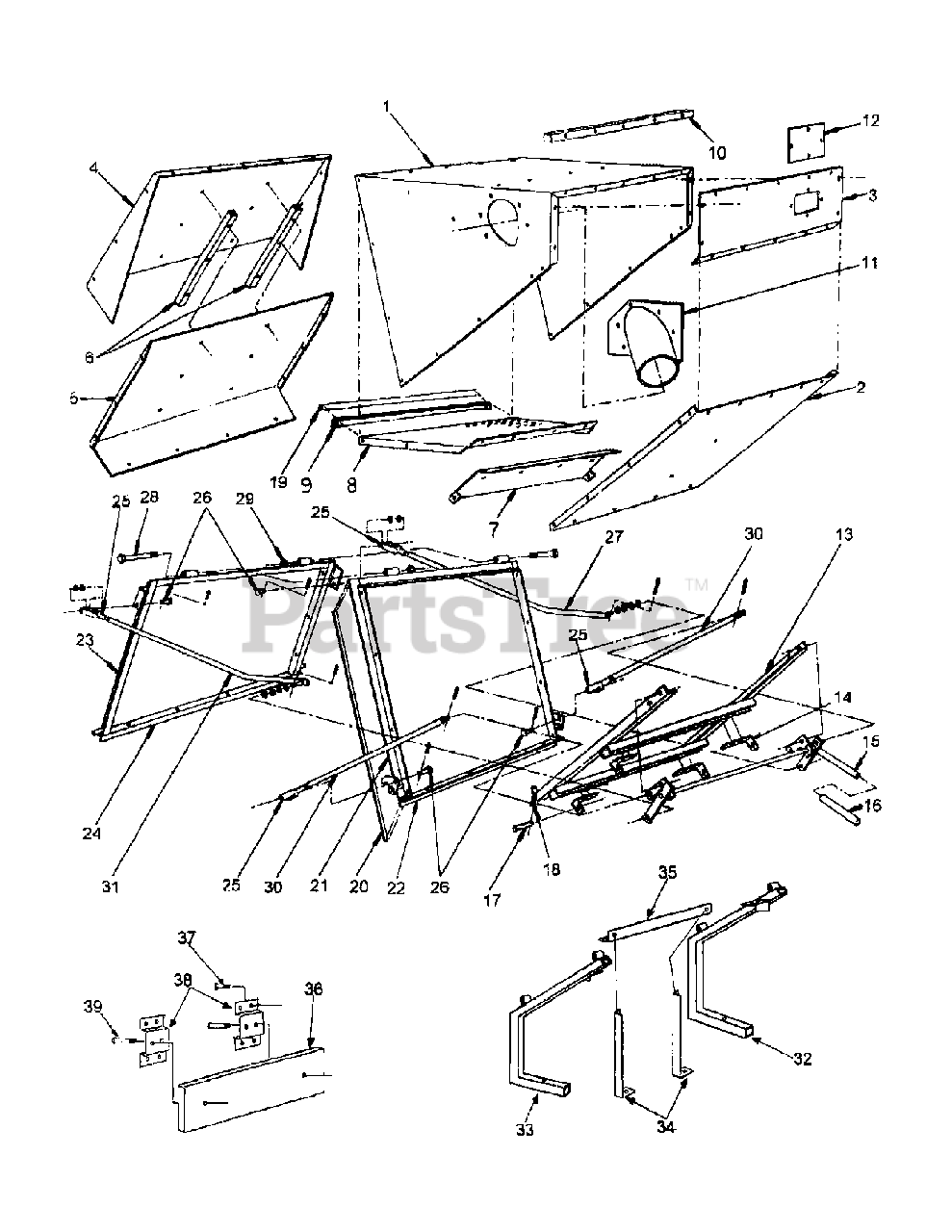

558 (590-558-150) - Cub Cadet Belt Driven Vacuum Collector att Catcher Body 2005 & Prior Parts Diagram

Belt Driven Vacuum Collector

Catcher Body 2005 & Prior Parts Diagram

  • Title
1

Cub Cadet TS-151175

Catcher Body

$

$

Not available

2

Cub Cadet TS-151232

Catcher Box Bottom

$

$

Not available

3

Cub Cadet TS-151358

Catcher Front

$

$

Not available

4

Cub Cadet TS-151419

Outer Door Shell

$

$

Not available

5

Cub Cadet TS-151591

Inner Door Shell

$

$

Not available

6

Cub Cadet TS-152070

Door Vent Spacer

$

$

Not available

7

Cub Cadet TS-151768

Intake Deflector

$

$

Not available

$

$

Not available

9

Cub Cadet TS-158940

Rear Screen Support

$

$

Not available

10

Cub Cadet TS-159080

Front Bumper

$

$

Not available

11

Cub Cadet TS-152340

Intake Tube 6"

$

$

Not available

12

Cub Cadet TS-150202

Viewing Window

$

$

Not available

13

Cub Cadet TS-153600

Catcher Frame Base

$

$

Not available

14

Cub Cadet TS-153500

Base Frame Tab

$

$

Not available

15

Cub Cadet TS-152790

Lever Dump Assembly

$

$

Not available

16

Cub Cadet TS-150875

Vinyl Grip 5"

$

$

Not available

17

Cub Cadet TS-150890

Clevis Pin 1/2" x 3"

$6.99

$

In Stock, only 2 left!

0

18

Cub Cadet TS-150995

Hair Spring Cotter # 6

$

$

Not available

19

Cub Cadet TS-150755

Rubber Seal

$

$

Not available

20

$

$

Not available

21

Cub Cadet TS-153290

Catcher Frame Opening

$

$

Not available

22

Cub Cadet TS-153050

Bottom Catcher Frame Opening

$

$

Not available

23

Cub Cadet TS-153330

Catcher Door Frame

$

$

Not available

24

Cub Cadet TS-153010

Bottom Door Frame

Note: NLA

$

$

Not available

25

Cub Cadet TS-150803

Adjustable Yoke End 3/8"-24

$

$

Not available

26

Cub Cadet TS-150810

Clevis Pin 3/8" x 1-1/8"

$

$

Not available

27

Cub Cadet TS-156713

Hinge Rod Left

$

$

Not available

28

1/2" x 5" Hex Head Bolt

$

$

Not available

29

1/2"-13 Nylock Nut

$

$

Not available

30

$

$

Not available

31

Cub Cadet TS-156703

Hinge Rod Right

$

$

Not available

32

Cub Cadet TS-154370

Catcher Mounting Left

$

$

Not available

33

Cub Cadet TS-154365

Catcher Mounting Right

$

$

Not available

34

Cub Cadet TS-154330

Catcher Mounting Support

$

$

Not available

35

$

$

Not available

36

Cub Cadet TS-285298

Weight Bar

$

$

Not available

37

5/16"-18 x 1" Carriage Bolt

$

$

Not available

38

Cub Cadet TS-159511

Weight Mounting Bracket

$

$

Not available

39

3/8"-16 x 4-1/2" Hex Head Bolt

$

$

Not available
