55660 - Toro 44" Side-Discharge Mower Deck (1990) TRANSMISSION & CLUTCH ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

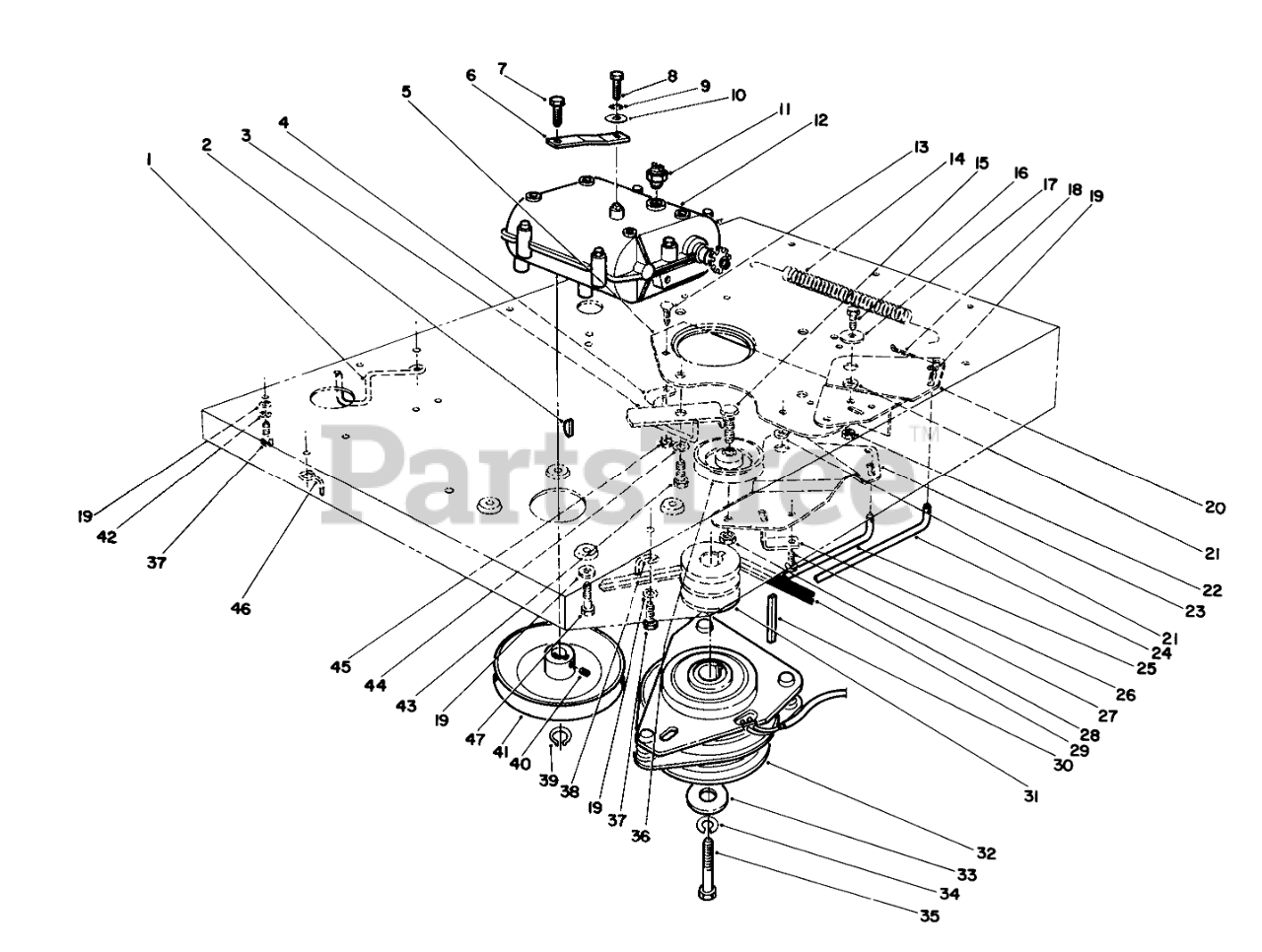

TRANSMISSION & CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 68-0140

BELT ROD

$

$

Not available

2

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

3

Toro 68-0100

CLUTCH RETAINER WA B

$

$

Not available

4

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

5

Toro 68-0010

PANEL- PIVOT SUPPORT

$

$

Not available

6

Toro 68-0660

LH SHIFT ARM

$

$

Not available

7

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

8

Toro 329-23

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

9

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

11

Toro 28-4250

NEUTRAL SWITCH

$46.99

$

Usually ships in 3-6 days

0

12

Toro 68-0060

TRANSMISSION LH

$

$

Not available

13

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 27-8960

TRACTION SPRING

$

$

Not available

15

Toro 32141-86

SCREW-LEVELER

$8.99

$

Usually ships in 3-6 days

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

18

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 68-0200

UPPER PIVOT BRACKET WA

$

$

Not available

21

Toro 68-0020

SPACER-PIVOT, IDLER

$14.99

$

Usually ships in 3-6 days

0

22

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

23

Toro 68-0300

LOWER PIVOT BRACKET WA

$

$

Not available

24

Toro 68-0320

LEFT REAR PULL ROD

$

$

Not available

25

Toro 68-0330

RIGHT REAR PULL ROD

$

$

Not available

26

Toro 68-0040

BELT RETAINER

$

$

Not available

27

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

28

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

29

Toro 68-0080

V-BELT

$115.99

$

Usually ships in 3-6 days

0

30

Toro 68-3220

KEY-STOCK

$5.99

$

In Stock, only 1 left!

0

31

Toro 68-0050

TRACTION DRIVE PULLEYB

$

$

Not available

32

Toro 54-3200

CLUTCH/BRAKE
(Superseded to 105-2635)

$576.99

$

In Stock, only 1 left!

0

33

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

34

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

35

Toro 3212-11

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

36

Toro 68-0030

Idler
(Superseded to 68-0030-03)

$

$

Not available

37

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 68-0150

BELT GUIDE

$

$

Not available

39

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

40

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

41

Toro 68-0180

PULLEY-TRANSMISSION

$112.99

$

Usually ships in 3-6 days

0

42

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

43

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

45

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

46

Toro 68-3170

BELT GUIDE

$

$

Not available

47

Toro 32140-45

Screw-HH

$

$

Not available
