55660 - Toro 44" Side-Discharge Mower Deck (1990) SEAT ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

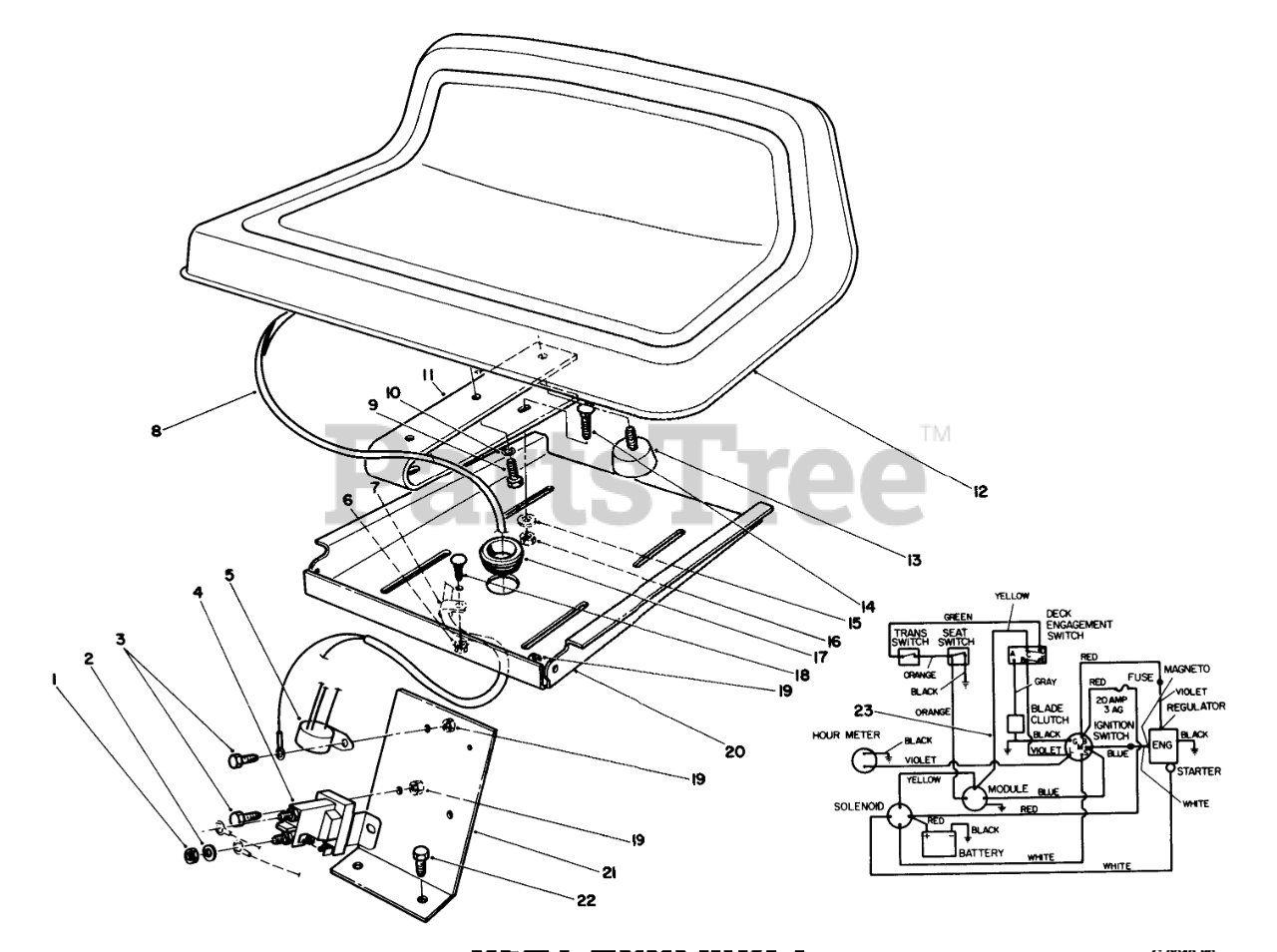

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 47-1910

SOLENOID
(Superseded to 740207)

$34.99

$

In Stock, only 4 left!

0

5

Toro 68-2150

KOHLER MODULE

$159.99

$

Usually ships in 3-6 days

0

6

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

7

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

8

Toro 38-1420

SWITCH-SEAT

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 68-3280

Spring Seat
(Superseded to 68-3280-01)

$

$

Not available

12

Toro 38-0840

SEAT

$

$

Not available

13

Toro 68-3270

BUMPER-RUBBER

$40.99

$

Usually ships in 3-6 days

0

14

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

18

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

20

Toro 68-1890

SEAT PAN R

$

$

Not available

21

Toro 68-2110

ELEC COMPONENT PANEL B

$

$

Not available

22

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

23

Toro 68-3210

WIRE HARNESS - 16 HP

$177.99

$

In Stock, only 1 left!

0

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
