55660 - Toro 44" Side-Discharge Mower Deck (1990) FRONT AXLE & STEERING ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

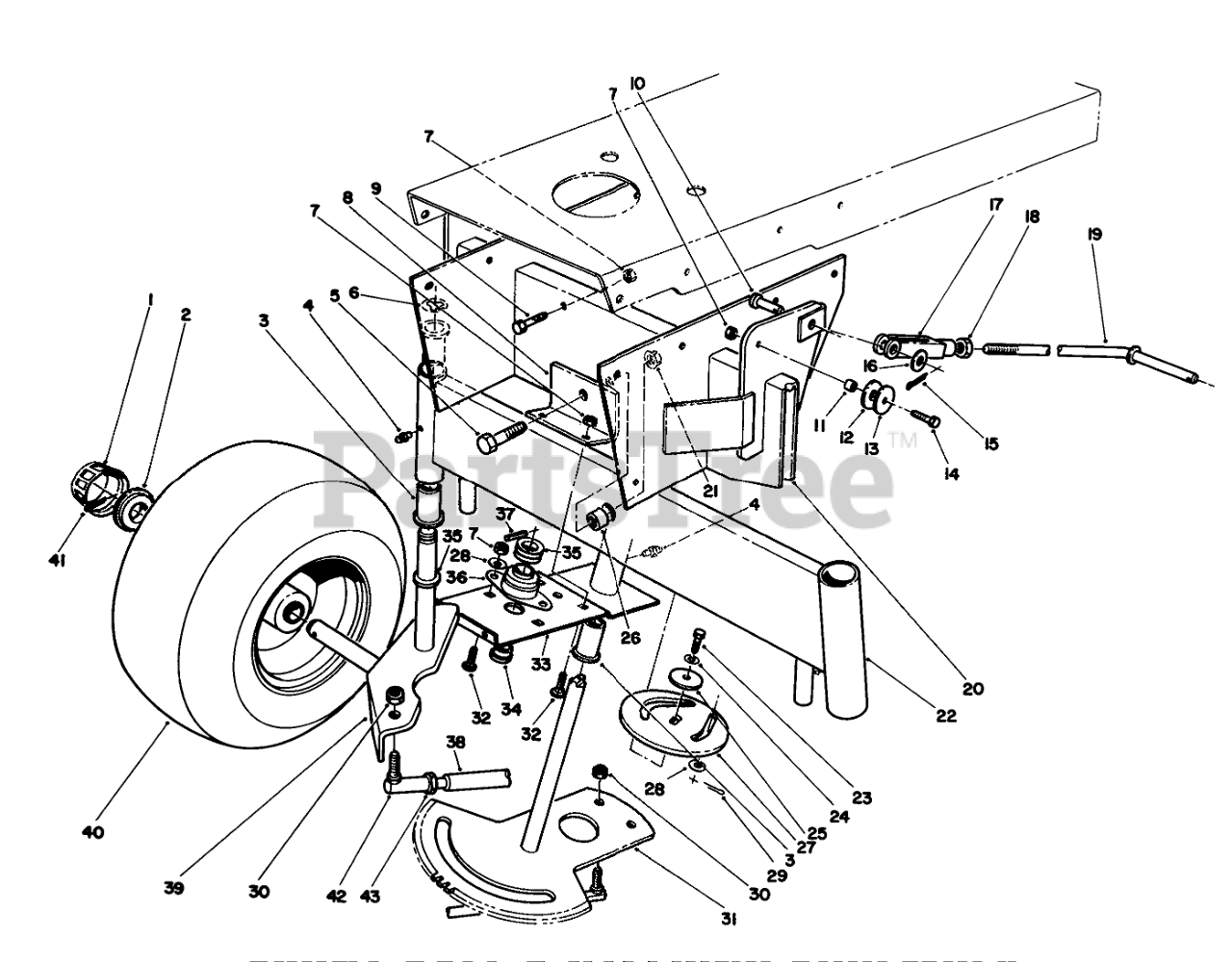

FRONT AXLE & STEERING ASSEMBLY Parts Diagram

  • Title
1

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

2

Toro 68-0790

FRONT WHEEL SPACER

$

$

Not available

3

Toro 46-6680

BUSHING PM

$27.99

$

In Stock, only 1 left!

0

4

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

5

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

6

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 68-0890

SPINDLE SPROCKET BRKTB

$

$

Not available

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 283-68

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

11

Toro 68-2270

FLOOR SPACER

$

$

Not available

12

Toro 68-1440

WASHER-RUBBER

$8.99

$

Usually ships in 3-6 days

0

13

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

14

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

15

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

$

$

Not available

18

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

19

Toro 68-1180

FRONT LINK

$69.99

$

Usually ships in 3-6 days

0

20

Toro 68-0800

Support-Front Axle

$

$

Not available

21

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

22

Toro 68-0900

Axle-Front (Incl. Ref. #3 & 4)

$

$

Not available

23

Toro 329-23

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

24

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

26

Toro 28-0380

SPACER-AXLE, FRONT

$3.49

$

Usually ships in 3-6 days

0

27

Toro 68-0940

PLATE-PULL ROD

$

$

Not available

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

30

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

31

Toro 68-0960

STEERING RACK WA B

$

$

Not available

32

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

33

Toro 68-1010

Spindle-Steering Rack (Incl. Ref. #3 & 4)

$

$

Not available

34

Toro 47-0700

BEARING-FLANGE

$18.99

$

Usually ships in 3-6 days

0

35

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

36

Toro 68-2970

BUSHING

$28.99

$

Usually ships in 3-6 days

0

37

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

38

Toro 68-0990

Tie Rod-Steering (Incl. Ref. #42 & 43)

$

$

Not available

39

Toro 68-0760

R/H SPINDLE WA

$

$

Not available

Toro 68-0860

LH SPINDLE WA

$

$

Not available

40

Tire & Wheel Assy-Front

$

$

Not available

41

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

42

Toro 68-3840

JOINT-BALL, RH THREADED

$

$

Not available

Toro 68-3841

JOINT-BALL, LH THREADED

$54.99

$

Usually ships in 3-6 days

0

43

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

Toro 3220-16

NUT-JAM, LH

$1.99

$

In Stock, Qty 5

0
