55660 - Toro 44" Side-Discharge Mower Deck (1990) ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

44" Side-Discharge Mower Deck

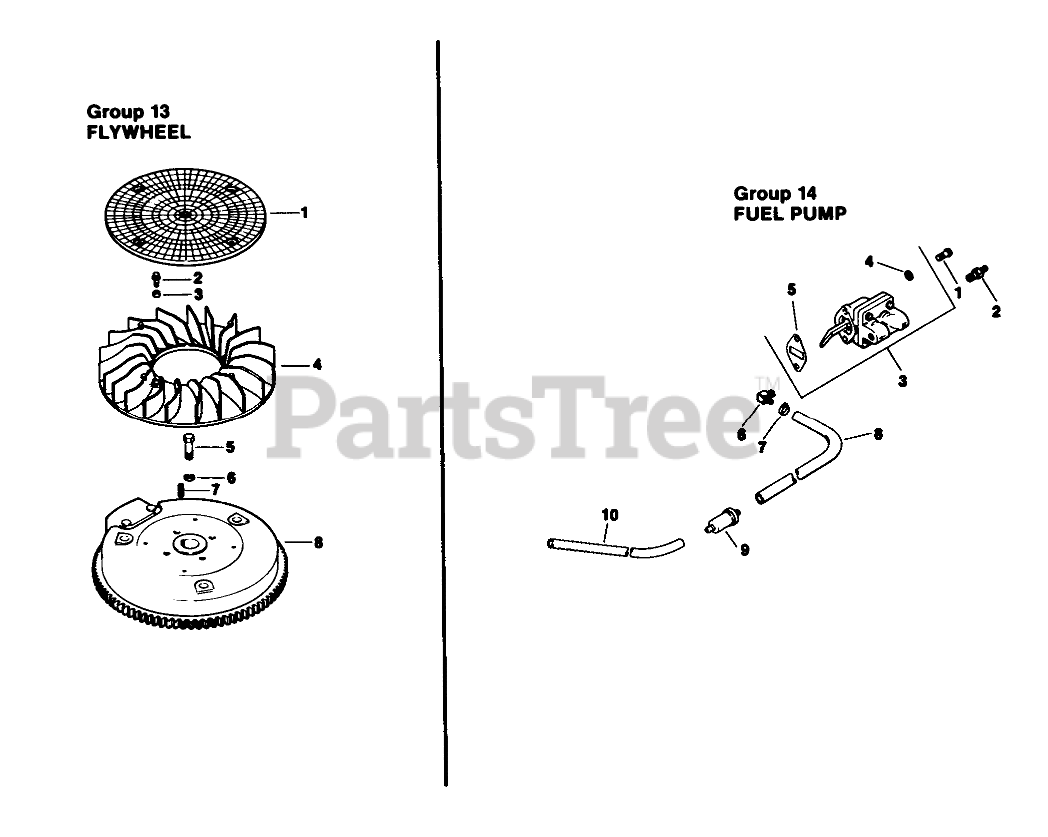

ENGINE KOHLER MODEL NO. MV16S-TYPE 56511 Parts Diagram

  • Title

Toro 25-450-03

Tag-Caution

$

$

Currently unavailable

1

Toro 25-162-01

Screen-Grass

$

$

Currently unavailable

2

Toro 25-086-21

Screw-Hex Hd

$

$

Currently unavailable

3

Toro 25-112-04

Spacer

$

$

Currently unavailable

4

Toro 25-157-01

Fan

$

$

Currently unavailable

5

Toro 25-086-24

Screw

$

$

Currently unavailable

6

Toro 52-468-15

Washer

$

$

Currently unavailable

7

Kohler X-286-17

Key
(Superseded to X-286-17-S)

$3.49

$

In Stock, only 1 left!

0

8

Toro 52-025-36

Flywheel FUEL PUMP-GROUP 14

$

$

Currently unavailable

1

Toro 47-086-08

Screw, F.H.

$

$

Currently unavailable

2

Kohler X-380-1

Connector
(Superseded to X-380-1-S)

$3.99

$

In Stock, only 1 left!

0

3

Toro 52-559-01

Pump-Fuel (Incl. Ref. #4 & 5)

$

$

Currently unavailable

4

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

5

Toro 25-041-05

Gasket

$

$

Currently unavailable

6

Toro 25-155-02

Connector-90deg.

$

$

Currently unavailable

7

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

8

Toro 52-353-18

Line-Fuel

$

$

Currently unavailable

9

Toro 45-050-01

Filter-Fuel

$

$

Currently unavailable

20

Toro 52-032-10

Seal-Rear Oil

$

$

Currently unavailable

28

Toro 25-086-15

Screw-Hex Washer Hd.

$

$

Currently unavailable
