55600 (HMR-1200) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1989) STEERING TOWER ASSEMBLY Parts Diagram

Lawn Tractor

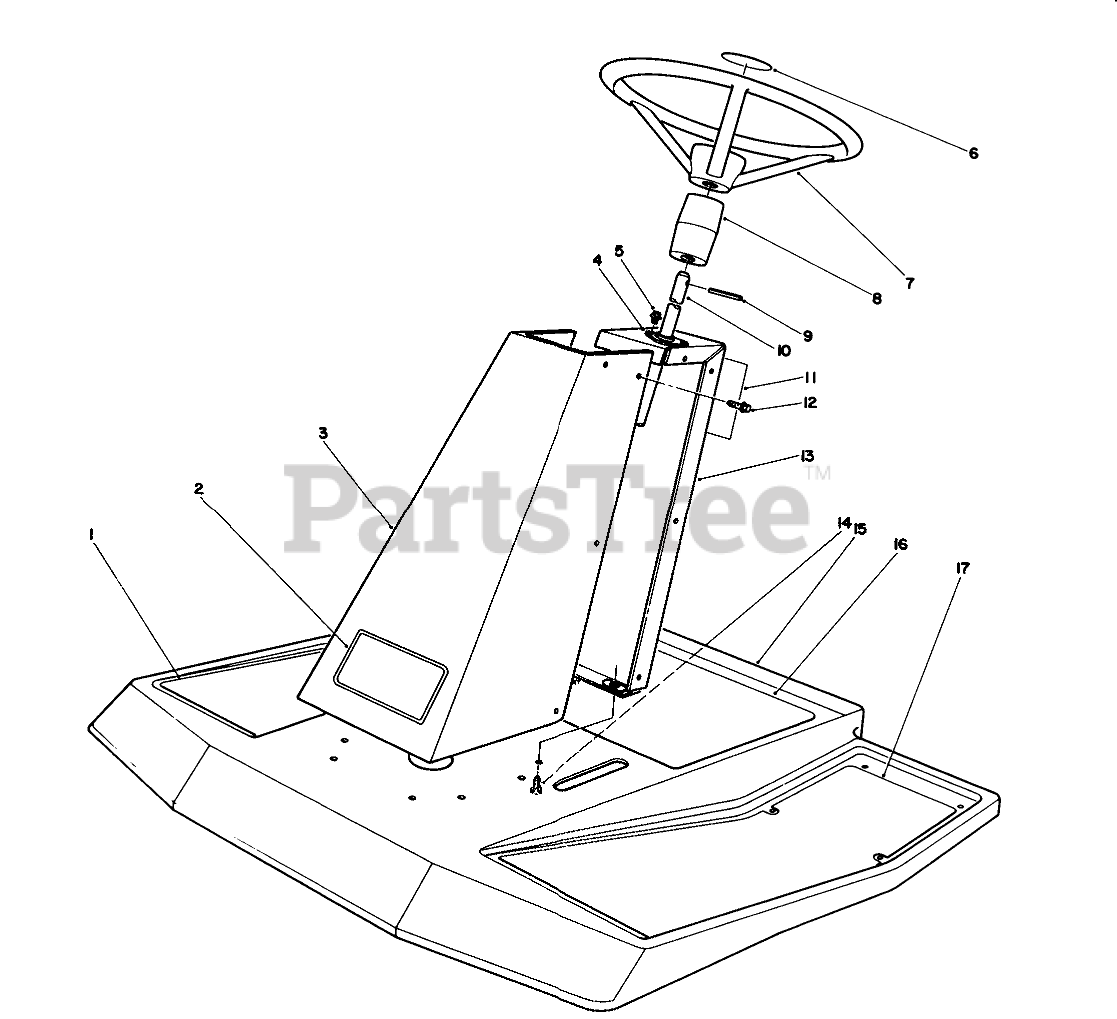

STEERING TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 68-2060

RH FOOT TREAD

$

$

Not available

2

Toro 68-3640

DECAL

$20.99

$

In Stock, only 2 left!

0

3

Toro 68-1780

STEERING TOWER WA R

$

$

Not available

4

Toro 56-7170

GUIDE-STRG SHAFT

$10.99

$

Usually ships in 3-6 days

0

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 24-2090

STEERING WHEEL CAP

$

$

Not available

7

Toro 25-6260

STEERING WHEEL
(Superseded to 9547)

$6.49

$

Usually ships in 3-6 days

0

8

Toro 47-1980

STRG. SHAFT COVER

$42.99

$

Usually ships in 3-6 days

0

9

Toro 32121-10

PIN-ROLL

$7.49

$

Usually ships in 3-6 days

0

10

Toro 68-1070

STEERING SHAFT WA

$

$

Not available

11

Toro 68-3460

DECAL - WARNING

$

$

Not available

12

Toro 3210A-114

Screw-Ind. Hd.

$

$

Currently unavailable

13

Toro 13-4559

Panel-Steering Tower (Incl. Ref. #11)

$

$

Not available

14

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

15

Toro 13-6119

Pan-Floor (Incl. Ref. #1, 16, & 17)

$

$

Not available

16

Toro 68-3390

DECAL - OPERATION
(Superseded to 181937)

$157.99

$

Usually ships in 3-6 days

0

17

Toro 68-2070

LH FOOT TREAD

$

$

Not available
