55600 (HMR-1200) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1989) HEIGHT OF CUT ASSEMBLY Parts Diagram

Lawn Tractor

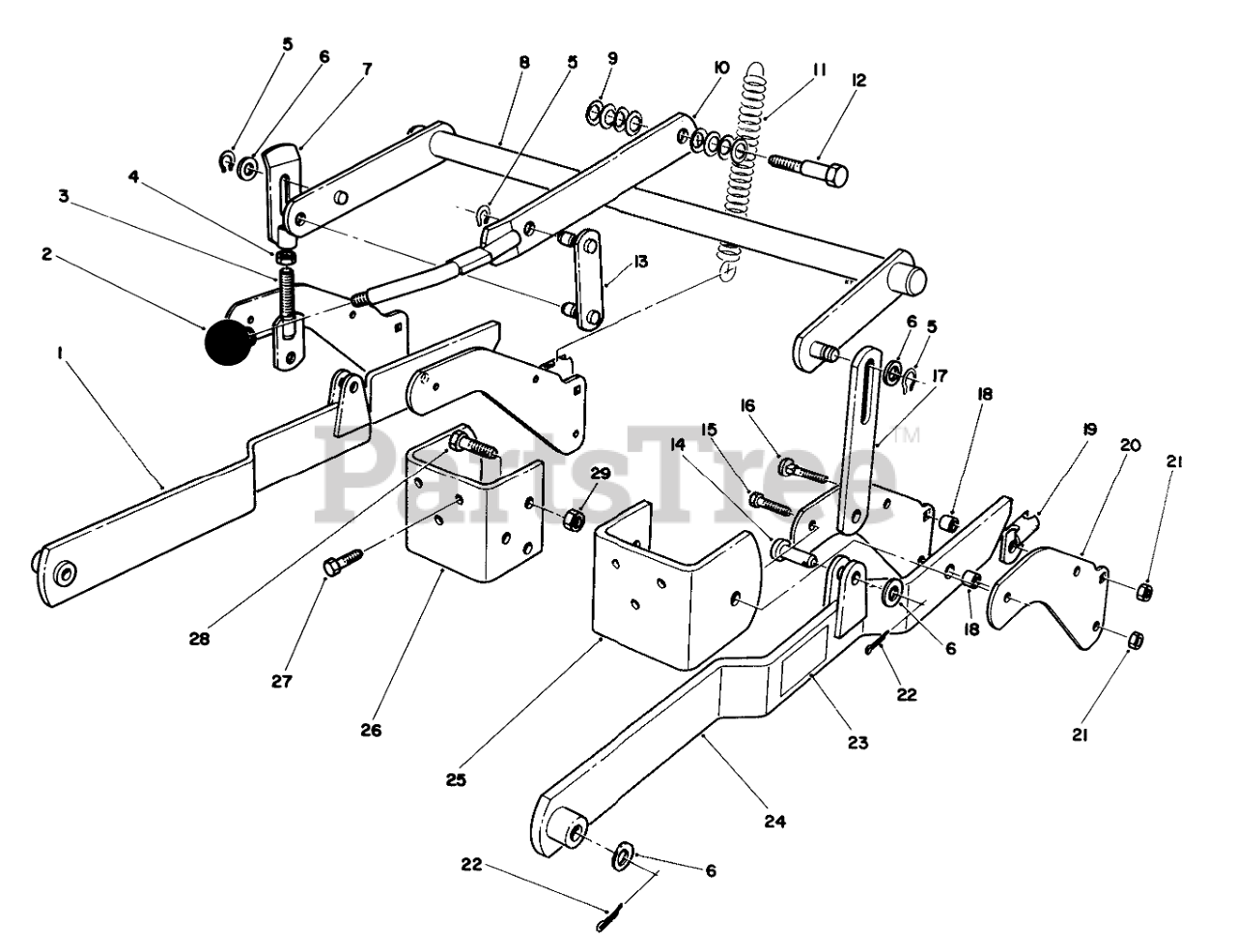

HEIGHT OF CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 13-4539

Lift Bar-R.H. (Incl. Ref. #23)

$

$

Not available

2

Toro 233-48

KNOB

$13.99

$

Usually ships in 3-6 days

0

3

Toro 68-1220

HOC PLATE WA

$143.99

$

In Stock, only 1 left!

0

4

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 19

0

5

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 68-1190

HOC LINK WA

$

$

Not available

8

Toro 68-1300

HOC PIVOT ARM WA B

$

$

Not available

9

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

10

Toro 68-1270

HOC LEVER WA B

$

$

Not available

11

Toro 68-3160

SPRING EXT.

$

$

Not available

12

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

13

Toro 68-1250

UPPER HOC LINK WA

$

$

Not available

14

Toro 283-60

PIN-CLEVIS

$8.49

$

Usually ships in 3-6 days

0

15

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

16

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

17

Toro 68-1340

SUSPENSION DECK LINK B

$

$

Not available

18

Toro 68-1090

DECK LIFT SPACER

$

$

Not available

19

Toro 68-2170

DECK SPRING LINK

$

$

Not available

20

Toro 68-1140

REAR PIVOT ARM B

$

$

Not available

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

24

Toro 13-4549

Lift Bar-L.H. (Incl. Ref. #23)

$

$

Not available

25

Toro 68-1590

U-BRKT DECK LIFT B

$

$

Not available

26

Toro 68-1580

U-BRKT DECK LIFT B

$

$

Not available

27

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

Toro 13-3249

Loose Parts

$

$

Not available
