55600 (HMR-1200) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1989) FUEL TANK ASSEMBLY Parts Diagram

Lawn Tractor

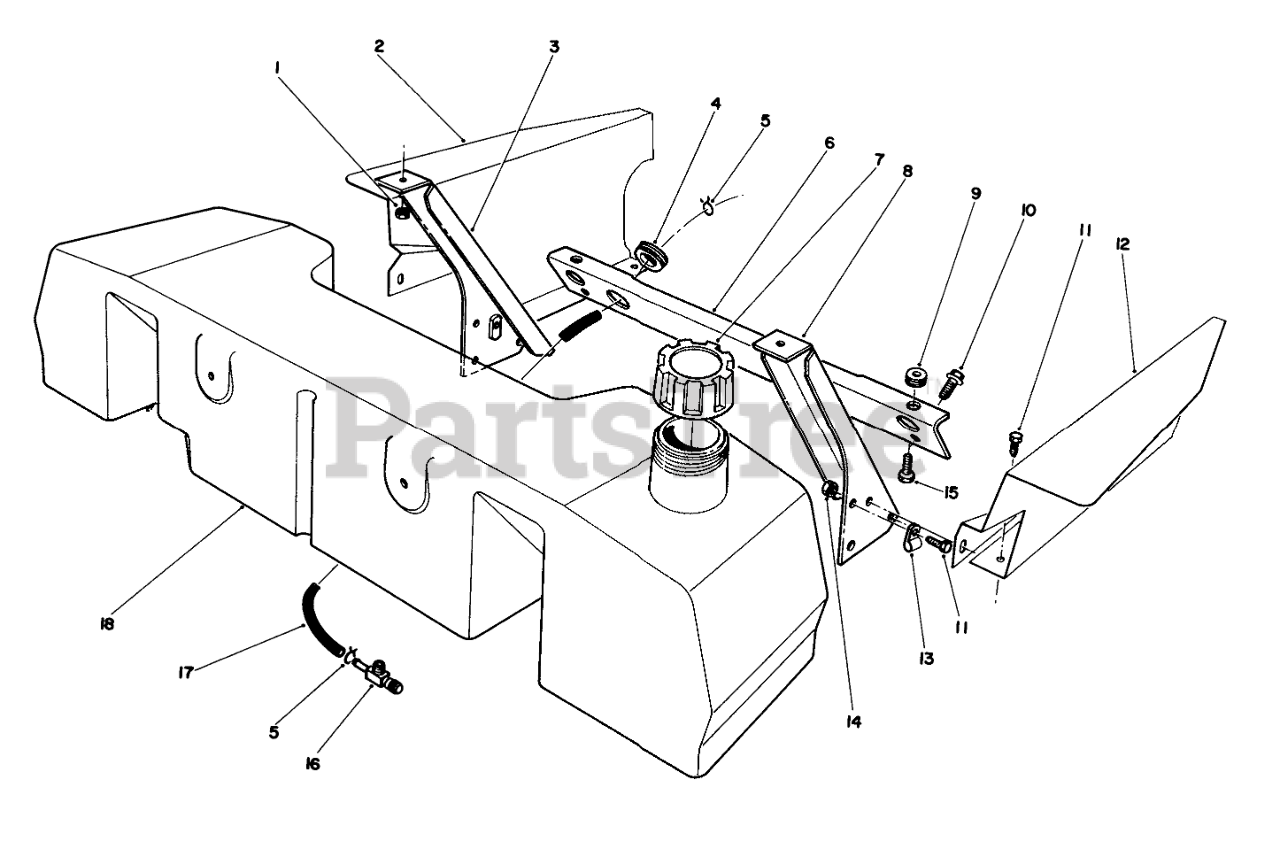

FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

2

Toro 68-3070

.INER - FENDER RH B

$

$

Not available

3

Toro 68-1820

RIGHT REAR SUPPORT WAB

$

$

Not available

4

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

5

Toro 2210-185

FUEL HOSE CLAMP

$1.49

$

In Stock, only 4 left!

0

6

Toro 68-2030

GAS TANK SUPPORT B

$

$

Not available

7

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

8

Toro 68-1840

LEFT REAR SUPPORT WA B

$

$

Not available

9

Toro 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

10

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 14

0

11

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

12

Toro 68-1990

LINER-FENDER LH B

$

$

Not available

13

Toro 2412-10

R-CLAMP

$3.49

$

Usually ships in 3-6 days

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 3250-36

SCREW-PPH

$3.49

$

Usually ships in 3-6 days

0

16

Toro 68-3010

FUEL SHUTOFF

$54.99

$

Usually ships in 3-6 days

0

17

Toro 68-3630

HOSE-FUEL

$

$

Not available

18

Toro 68-2020

GAS TANK ASSEMBLY

$

$

Not available
