55600 (HMR-1200) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1989) FRAME ASSEMBLY Parts Diagram

Lawn Tractor

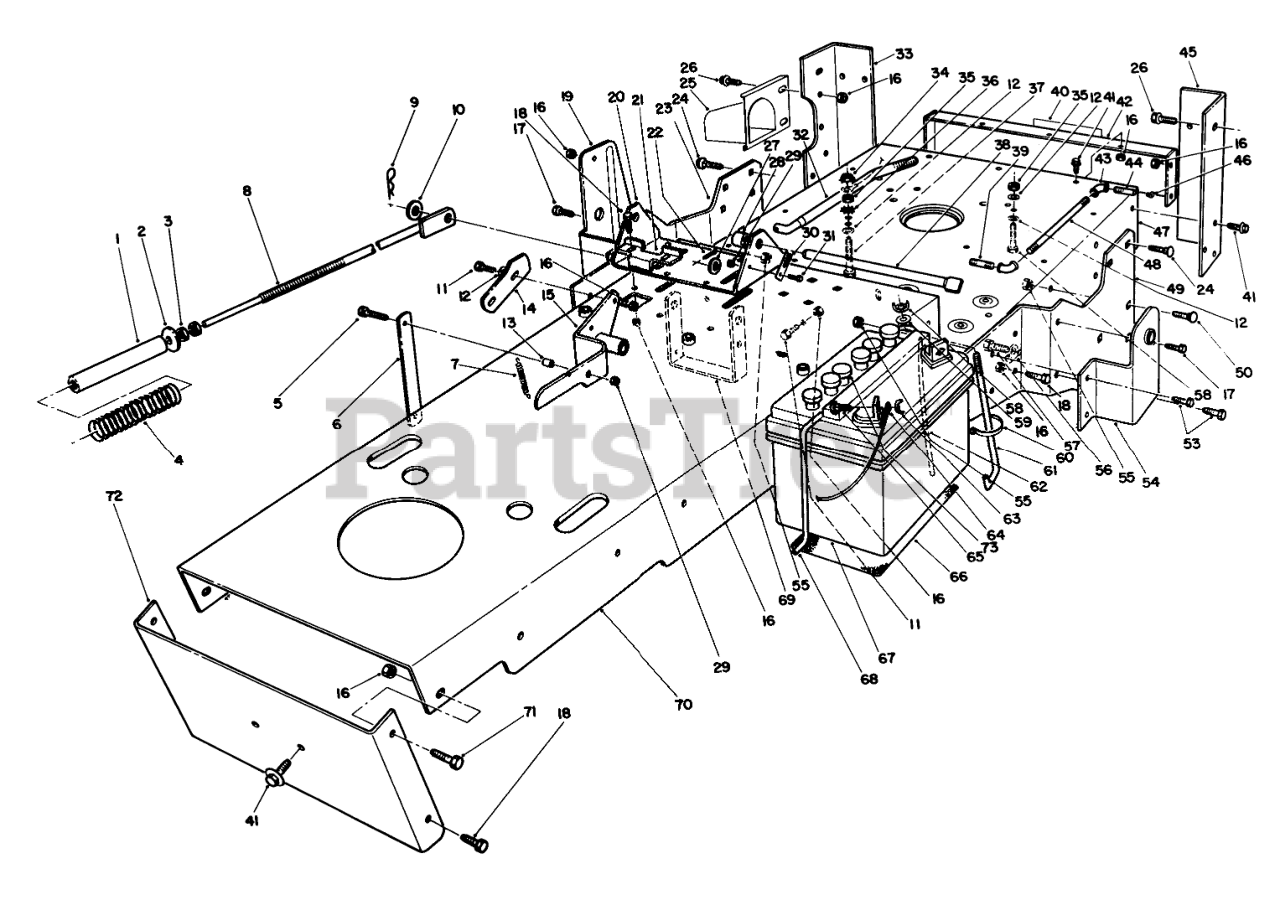

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 68-1380

TUBE SLEEVE

$

$

Not available

2

Toro 51-3500

WASHER

$2.99

$

Usually ships in 3-6 days

0

3

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

4

Toro 66-7140

COMP. SPRING

$

$

Not available

5

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

6

Toro 68-0620

PARKING BRAKE LINK B

$

$

Not available

7

Toro 68-0550

EXTENSION SPRING

$

$

Not available

8

Toro 68-1510

BELT TENSION ROD WA

$

$

Not available

9

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

10

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 68-0610

SPACER

$

$

Not available

14

Toro 68-2160

SHIFT STOP B

$

$

Not available

15

Toro 68-0520

PARKING BRAKE LVR WA B

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

17

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 68-1630

RH PIVOT BRACKET B

$

$

Not available

20

Toro 68-0510

PIVOT BRACKET B

$

$

Not available

21

Toro 68-0590

PARKING BRAKE STOP

$

$

Not available

22

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

23

Toro 68-1400

RH SPLICE PLATE WA

$

$

Not available

24

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

25

Toro 68-2230

DEFLECTOR WA B

$

$

Not available

26

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 16

0

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 68-0570

SPACER

$

$

Not available

29

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

30

Toro 47-0780

RETAINER-SHAFT

$

$

Not available

31

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 68-0600

BRAKE ROD

$

$

Not available

33

Toro 68-2210

RH REAR CORNER POST B

$

$

Not available

34

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

35

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

36

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

37

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

38

Toro 68-0580

PARKING BRAKE SHAFT

$

$

Not available

39

Toro 289-36

NIPPLE 3/8NPTX 1.50

$

$

Not available

40

Toro 68-3420

DECAL - TRAILER HITCH

$

$

Not available

41

Toro 3234-17

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

42

Toro 68-1370

HITCH PLATE

$

$

Not available

43

Toro 2813-6

90 DEGREE ELBOW

$

$

Not available

44

Toro 68-3110

OIL DRAIN TUBE

$

$

Not available

45

Toro 68-2220

LH REAR CORNER POST B

$

$

Not available

46

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

47

Toro 68-1550

REAR FRAME WA

$

$

Not available

48

Toro 289-47

PIPE NIPPLE

$

$

Not available

49

Toro 68-1450

LH SPLICE PLATE WA

$

$

Not available

50

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

52

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

53

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

54

Toro 68-1640

LH PIVOT BRACKET B

$

$

Not available

55

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

56

$1.49

$

In Stock, Qty 5

0

57

Toro 323-41

SCREW-HH

$1.99

$

In Stock, Qty 14

0

58

Toro 32103-12

NUT-WING

$1.49

$

In Stock, only 3 left!

0

59

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

60

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

61

Toro 56-7720

POST-BATTERY
(Superseded to 100-6435)

$18.99

$

Usually ships in 3-6 days

0

62

Toro 68-3810

TUBE-VENT

$

$

Not available

63

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

64

Toro 56-7670

WIRE ASM

$26.99

$

In Stock, only 2 left!

0

65

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

66

Toro 62-4300

PAD-SKID, ANTI

$18.99

$

Usually ships in 3-6 days

0

67

Toro 49-7030

Battery

$

$

Not available

68

Toro 68-2080

BATTERY HOLD DOWN

$

$

Not available

69

Toro 68-0560

BRAKE U BRACKET B

$

$

Not available

70

Toro 68-1600

FRONT FRAME WA

$

$

Not available

71

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

72

Toro 68-0880

FRONT COVER B

$

$

Not available

73

Toro 218-577

NON-VENTED BATTERY CAP

$

$

Not available

Toro 68-3340

BUMPER WA B

$

$

Not available
