55600 (HMR-1200) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1989) BRAKE & CLUTCH PEDAL ASSEMBLY Parts Diagram

Lawn Tractor

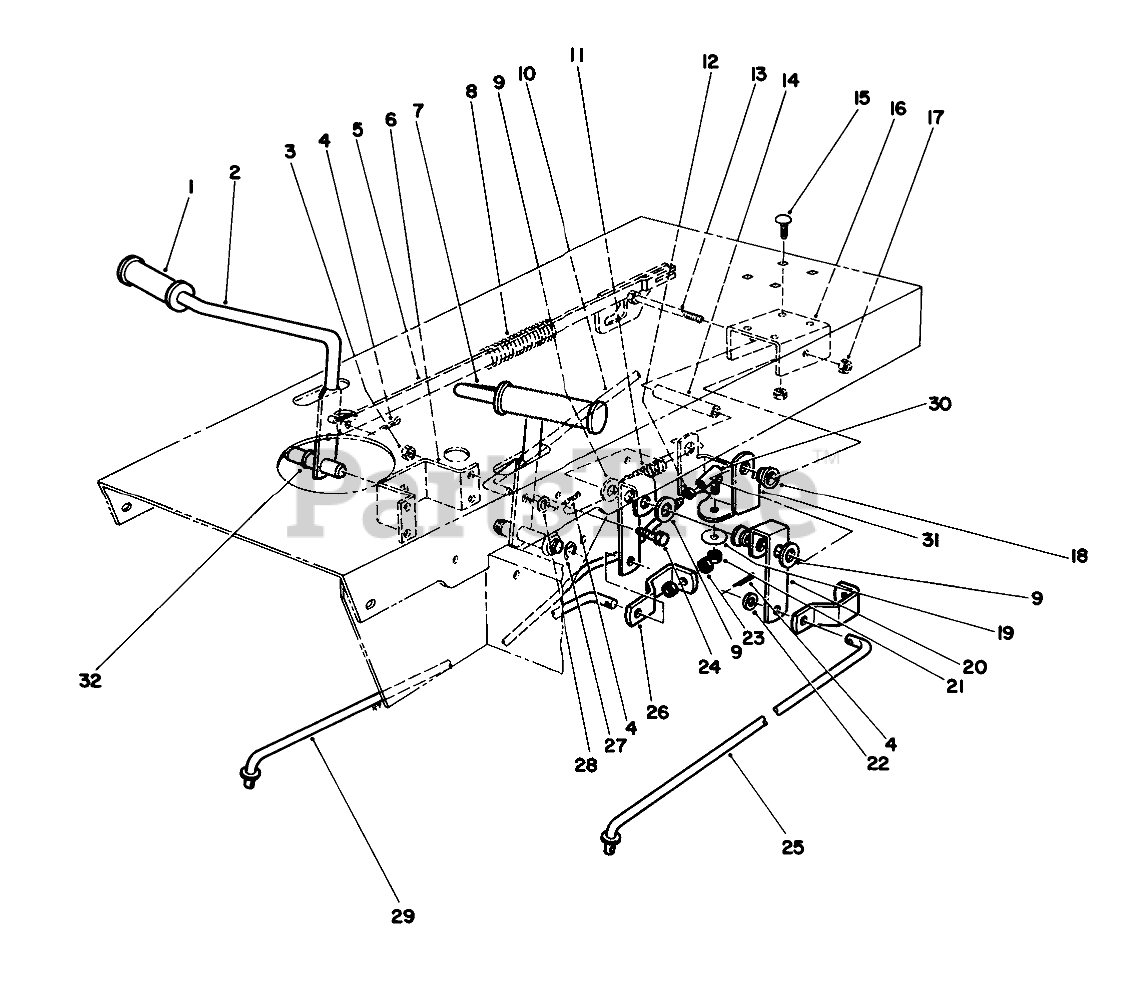

BRAKE & CLUTCH PEDAL ASSEMBLY Parts Diagram

  • Title
1

Toro 28-2470

FOOT PAD

$

$

Not available

2

Toro 68-0450

BRAKE PEDAL WA B

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

4

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

5

Toro 68-0470

BRAKE LINK WA B

$

$

Not available

6

Toro 68-0290

FOOT PEDAL BRACKET

$

$

Not available

7

Toro 68-0370

CLUTCH PEDAL WA B

$

$

Not available

8

Toro 68-0390

EXTENSION SPRING

$

$

Not available

9

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 68-0360

CLUTCH ROD

$

$

Not available

11

Toro 27-8890

SPRING-EXTENSION

$41.99

$

Usually ships in 3-6 days

0

12

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

13

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

14

Toro 68-0240

CLUTCH BRACKET SLEEVE

$

$

Not available

15

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

16

Toro 68-0220

CLUTCH SUPPORT BRKT B

$

$

Not available

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

18

Toro 256-296

BUSHING

$6.49

$

In Stock, only 3 left!

0

19

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

20

Toro 68-0270

STEERING LEVER

$

$

Not available

21

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 68-0340

LEFT FRONT ROD

$50.99

$

Usually ships in 3-6 days

0

26

Toro 68-0280

PULL ROD LINK

$

$

Not available

27

Toro 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 68-0350

RIGHT FRONT ROD

$

$

Not available

30

Toro 2411-33

BALLJOINT-RH (W/GROMMET)

$24.99

$

Usually ships in 3-6 days

0

31

Toro 68-0230

CLUTCH BRACKET

$

$

Not available

32

Toro 256-258

Nyliner
(Superseded to 86-9320)

$8.99

$

Usually ships in 3-6 days

0
