55600 (HMR-1200) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1989) BODY ASSEMBLY Parts Diagram

Lawn Tractor

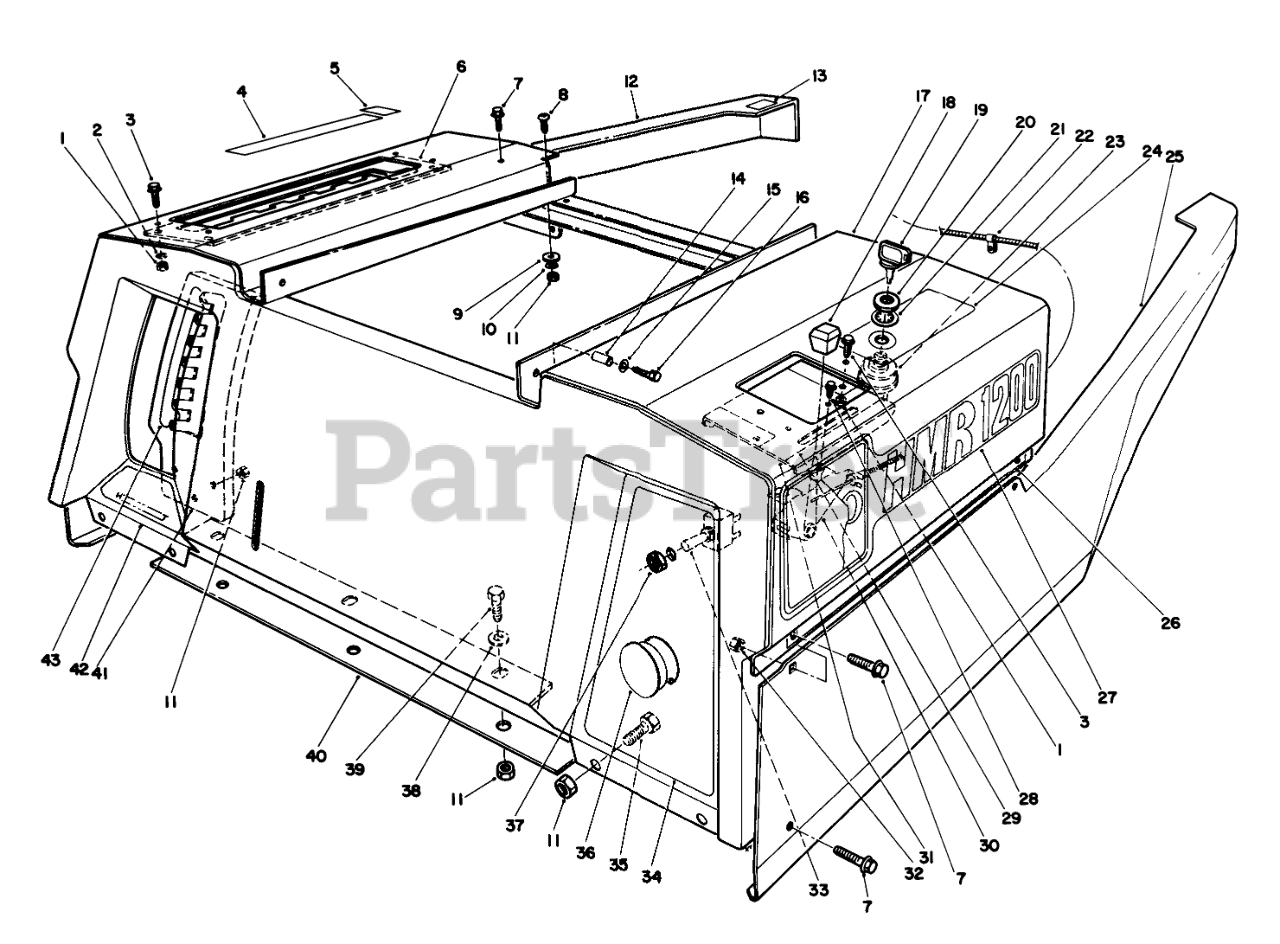

BODY ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

2

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

4

Toro 68-3490

DECAL - SHIFT

$

$

Not available

5

Toro 68-3550

DECAL - REVERSE

$

$

Not available

6

Toro 68-1540

GATE-SHIFT B

$33.99

$

Usually ships in 3-6 days

0

7

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

8

Toro 3274-32

SCREW-HSBH

$5.49

$

Usually ships in 3-6 days

0

9

Toro 68-3150

RUBBER WASHER

$

$

Not available

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 13-4229

Fender-R.H. (Incl. Ref. #13)

$

$

Not available

13

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

14

Toro 68-0610

SPACER

$

$

Not available

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 68-3831

Body (Incl. Ref. #8-11, 24, 26, 27, 34 & 42)

$

$

Not available

18

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

19

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

20

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

21

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

22

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

23

Toro 23-0660

Switch-Starter (Incl. Ref. #20 & 21)

$23.99

$

In Stock, only 1 left!

0

24

Toro 68-3450

DECAL - IGNITION

$

$

Not available

25

Toro 68-1950

LH FENDER WA R

$

$

Not available

26

Toro 68-3690

DECAL - STEERING (L)

$

$

Not available

Toro 68-3710

DECAL - STEERING (R)

$

$

Not available

27

Toro 68-3670

DECAL - 1200

$

$

Not available

28

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

29

Toro 68-3530

DECAL - THROTTLE

$

$

Not available

30

Toro 68-2950

CHOKAMATIC CONTROL

$

$

Not available

31

Toro 68-2090

CONTROL PLATE B

$

$

Not available

32

Toro 3290-196

NUT

$9.99

$

Usually ships in 3-6 days

0

33

Toro 37-2610

Switch (Incl. Ref. #37)
(Superseded to 92-6328)

$

$

Not available

34

Toro 68-3540

DECAL - DECK SWITCH

$

$

Not available

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

36

Toro 2410-69

DOME PLUG

$

$

Not available

37

Toro 218-500

NUT
(Superseded to 3218-19)

$0.99

$

Usually ships in 3-6 days

0

38

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 68-1390

FLOOR PAN GASKET

$

$

Not available

41

Toro 68-1690

HOC QUADRANT B

$

$

Not available

42

Toro 68-3510

DECAL - HEIGHT OF CUT

$

$

Not available

43

Toro 68-3430

DECAL - HOC

$

$

Not available
