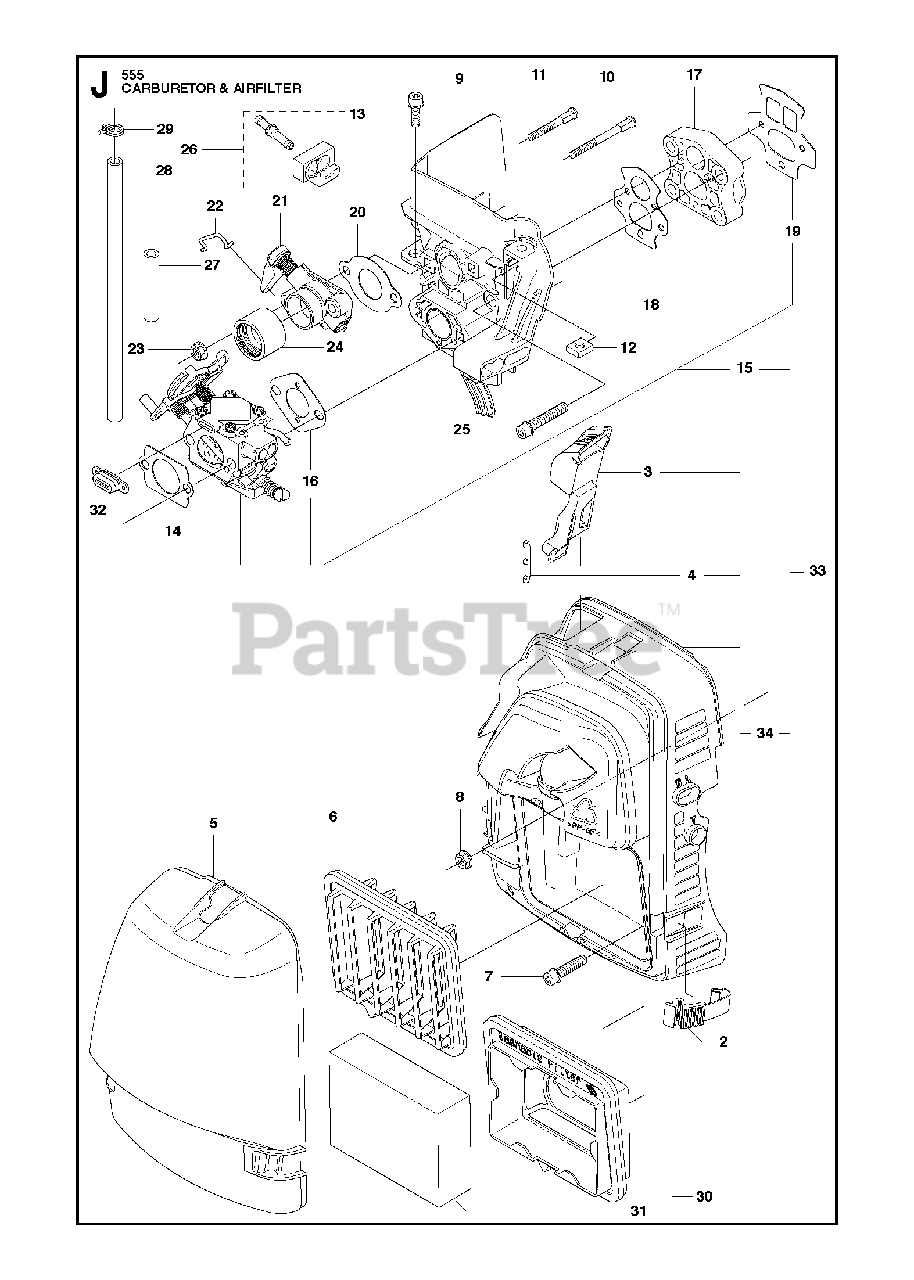

555 RXT - Husqvarna Brush Cutter CARBURETOR AIR FILTER Parts Diagram

Brush Cutter

CARBURETOR AIR FILTER Parts Diagram

  • Title

2

Husqvarna 503740102

HOLDER

Note: . 34

$11.99

$

In Stock, only 3 left!

0

3

Husqvarna 537352601

CHOKE CONTROL

Note: . 34

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537387801

GROMMET

Note: . 34

$

$

Not available

5

Husqvarna 537410101

FILTER COVER
(Superseded to 537410102)

$20.99

$

Usually ships in 3-10 days

0

6

Husqvarna 537410801

FILTER

Note: Nylon 80 /32 Winter

$

$

Not available

6

Husqvarna 537410802

FILTER

Note: Nylon 44 /27

$22.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503200776

SCREW

$7.49

$

In Stock, only 2 left!

0

8

Husqvarna 731711451

NUT

$6.49

$

In Stock, only 3 left!

0

9

Husqvarna 537350401

INSULATION WALL

$17.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503988101

BOLT

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503988104

SCREW

$

$

Not available

12

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 13

0

13

Husqvarna 503200776

SCREW

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna 544429901

GASKET

Note: . 15

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 586108801

CARBURETOR

Note: s /n from 20130600067

$136.99

$

In Stock, only 4 left!

0

16

Husqvarna 510043701

GASKET

Note: . 15

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 544043301

MANIFOLD

$13.99

$

Usually ships in 3-10 days

0

18

Husqvarna 544043001

GASKET

Note: . 15

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 544043101

GASKET

Note: . 15

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544160801

GASKET

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 544214001

VALVE HOUSING

$22.99

$

Usually ships in 3-10 days

0

22

Husqvarna 544847801

LINK

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 731711451

NUT

$6.49

$

In Stock, only 3 left!

0

24

Husqvarna 537410501

INLET PIPE

$6.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503200780

SCREW IHSCFM

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 544161501

GROMMET

Note: Kit

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 581756141

FUEL HOSE STRAIGHT 35

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 544324914

RP FUEL HOSE
(Superseded to 581756114)

$7.99

$

In Stock, only 2 left!

0

29

Husqvarna 544348601

HOSE CLAMP

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 505034702

FILTER

Note: RXT Incl Pos 31

$27.99

$

Usually ships in 3-10 days

0

31

Husqvarna 505031003

FILTER

Note: . 30

$12.99

$

Usually ships in 3-10 days

0

32

Husqvarna 577969301

SEALING PLUG

Note: s /n from 20130600067. 15 34

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 579620101

SEALING PLUG

Note: s /n up to- 20130600066

$

$

Not available

33

Husqvarna 586154001

CARBURETOR KIT

Note: s /n up to- 20130600066. 15 34

$113.99

$

Usually ships in 3-10 days

0

34

Husqvarna 580482601

FILTER HOLDER KIT

$34.99

$

Usually ships in 3-10 days

0
