555 M (1693980) - Simplicity 22" Snow Thrower, 5hp Engine & Frame Group Parts Diagram

22" Snow Thrower, 5hp

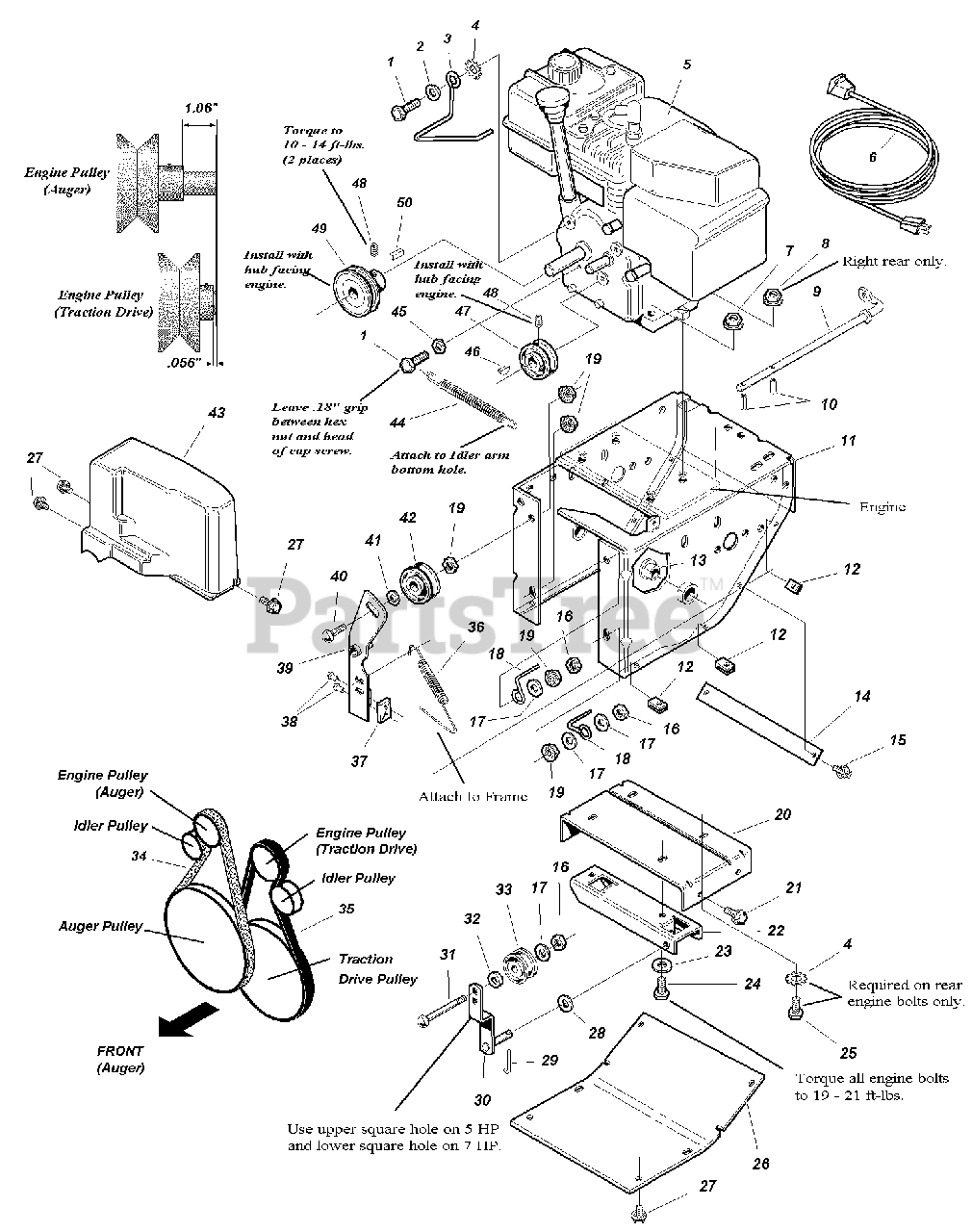

Engine & Frame Group Parts Diagram

  • Title

1

Simplicity 1921515SM

CAPSCREW, Hex Hd., 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1725424SM

BELT STOP

$9.99

$

Usually ships in 2-12 days

0

4

Simplicity 1920427SM

LOCKWASHER, External Tooth, 3/8

$3.99

$

Usually ships in 2-12 days

0

5

555M 5 HP ENGINE, Tecumseh, Manual Start, (Models 1693980 & 1693981) Engine Model # HSSK 50 Engine Type # 67261S

$

$

Not available

5

755M 7 HP ENGINE, Tecumseh, Electric Start (Model 1693983) Engine Model # OHSK 70 Engine Type # 72523D

$

$

Not available

5

755M 7 HP OHV ENGINE, Tecumseh, Manual Start (Model 16933982) Engine Model # OHSK 50 Engine Type # 72513B

$

$

Not available

6

CORD, Electric Start (1724064)

$

$

Not available

7

Simplicity 1931277SM

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Simplicity 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1715092SM

ROD, Idler

$20.99

$

Usually ships in 2-12 days

0

10

Simplicity 2816169SM

PIN, Spring

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1725339SM

FRAME

$

$

Not available

12

Simplicity 1926018SM

NUT, Speed 1/4-20

$4.49

$

In Stock, Qty 12

0

13

Simplicity 1666001SM

BUSHING

$6.99

$

In Stock, Qty 6

0

14

Simplicity 1715559A

TIE BAR SUPPORT
(Superseded to 1715559SM)

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 1929477SM

CAPSCREW, Taptite, #10-24 x 1/2

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1960251SM

NUT, Hex, Jam, Center-lock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 11

0

17

Simplicity 1924940SM

WASHER, Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1674315SM

GUIDE, Belt

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1930645SM

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 1715756A

FRAME BRACKET
(Superseded to 1715756SM)

$33.99

$

Usually ships in 2-12 days

0

21

Simplicity 1924856SM

CAPSCREW, Taptite, 5/16-18 X 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 1715111SM

SUPPORT, Pivot

$12.99

$

Usually ships in 2-12 days

0

23

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1 3/4 G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

26

Simplicity 1715137C

COVER, Bottom

$

$

Not available

27

Simplicity 1925003SM

CAPSCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

28

Simplicity 1925125SM

WASHER, Flat 15/32

$6.49

$

In Stock, only 2 left!

0

29

Simplicity 1918451SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 1715112SM

ARM & SHAFT ASSEMBLY, Idler

$38.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 X 1-1/4

$4.49

$

In Stock, Qty 10

0

32

Simplicity 2174870SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

33

Simplicity 2118414SM

PULLEY, Idler - Traction Drive

$26.99

$

Usually ships in 2-12 days

0

34

Simplicity 1717393SM

V-BELT, 4L, Auger Drive

$32.99

$

In Stock, only 4 left!

0

35

Simplicity 1715127SM

V-BELT, 3L Traction Drive, (1693980 & 1693981)

$24.99

$

Usually ships in 2-12 days

0

35

Simplicity 1720234SM

V-BELT, 3L Traction Drive (1693982 & 1693983)

$24.99

$

Usually ships in 2-12 days

0

36

Simplicity 1715118SM

SPRING, Extension

$8.49

$

In Stock, only 2 left!

0

37

Simplicity 1669313SM

PAD, Brake

$14.99

$

In Stock, Qty 6

0

38

Simplicity 2825160SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

39

Simplicity 1717319SM

ARM & HUB ASSEMBLY, Idler/Brake (Includes Ref. 37 and 38)
(Superseded to 7400177YP)

$95.99

$

Usually ships in 2-12 days

0

40

Simplicity 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

41

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

42

Simplicity 1668477SM

PULLEY, Idler - Auger Drive

$23.99

$

In Stock, Qty 20+

0

43

Simplicity 1725379SM

COVER, Belt, (1693980 & 1693981)

$30.99

$

In Stock, only 2 left!

0

43

Simplicity 1725379SM

COVER, Belt, (1693982 & 1693983)

$30.99

$

In Stock, only 2 left!

0

44

Simplicity 1720237SM

SPRING, Extension

$7.99

$

Usually ships in 2-12 days

0

45

Simplicity 2820438SM

NUT, Hex, Jam, 5/16-24

$3.49

$

In Stock, only 2 left!

0

46

Simplicity 2824819SM

KEY, Hi-Pro, 1/8 x 5/8

$3.49

$

Usually ships in 2-12 days

0

47

Simplicity 1674325SM

PULLEY, Engine - Traction Drive

$29.99

$

Usually ships in 2-12 days

0

48

Simplicity 1960619SM

SET SCREW, Hex Socket Cup Point, 5/16-18 x 5/16

$3.49

$

In Stock, Qty 10

0

49

Simplicity 1720313SM

PULLEY, Engine - Auger Drive

$34.99

$

Usually ships in 2-12 days

0

50

Simplicity 2805850SM

KEY, Parallel, 3/16 x 3/16

$

$

Not available
