555 M (1690900) - Simplicity 22" Snow Thrower, 5hp Transmission Group Parts Diagram

22" Snow Thrower, 5hp

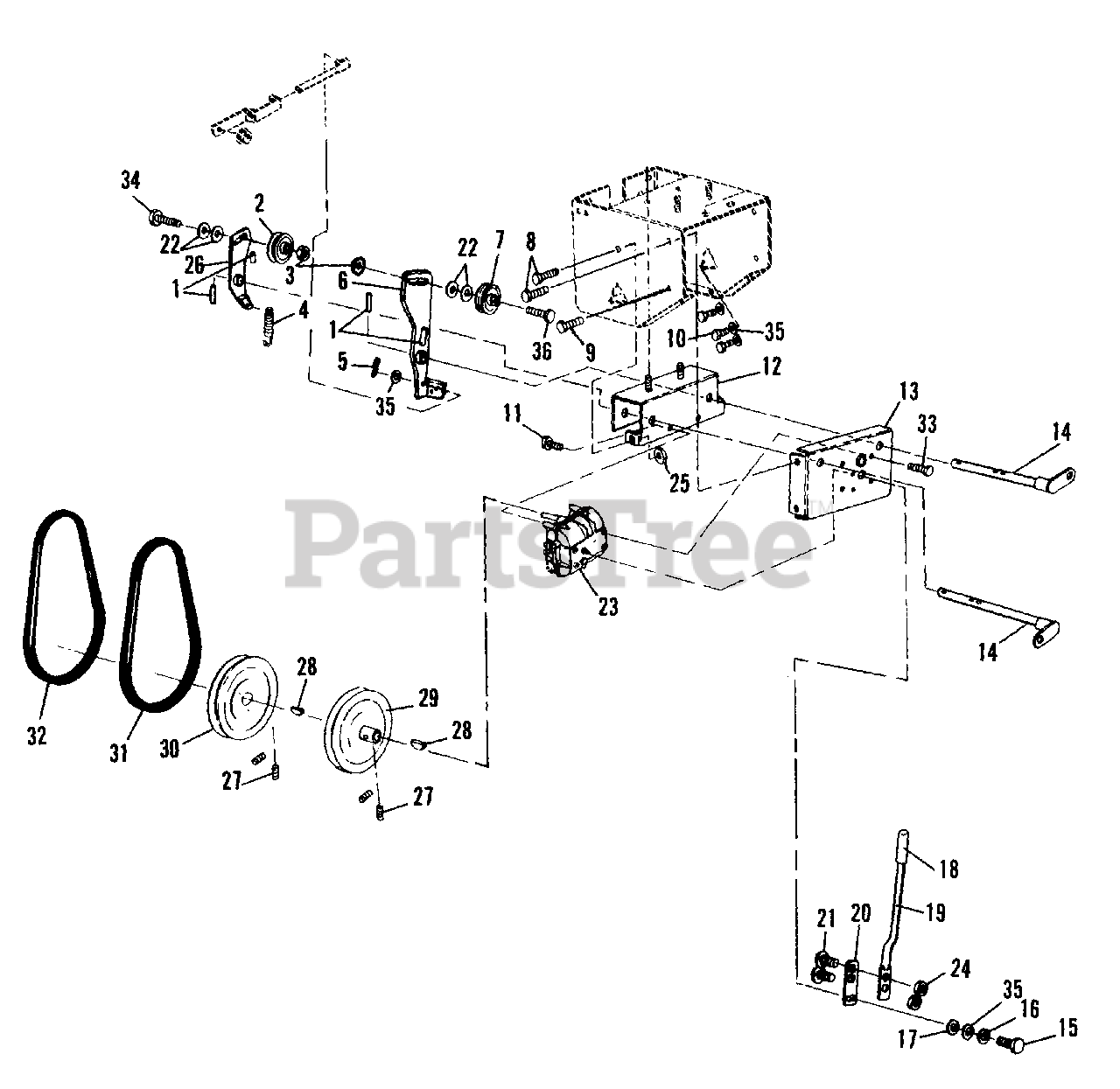

Transmission Group Parts Diagram

  • Title

1

Simplicity 2816169SM

PIN, Roll

$4.49

$

Usually ships in 2-12 days

0

2

Simplicity 1685370SM

IDLER PULLEY

$15.99

$

Usually ships in 2-12 days

0

3

Simplicity 2828731

NUT, Hex Centerlock Jam, 3/8-16

$

$

Not available

4

Simplicity 2159106SM

SPRING
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

5

Simplicity 2818447

PIN, Cotter

$

$

Not available

6

Simplicity 1674316

IDLER ARM & BRAKE ASSEMBLY

$

$

Not available

7

Simplicity 1668477SM

IDLER PULLEY

$23.99

$

In Stock, Qty 20+

0

8

Simplicity 2834665SM

SCREW, Flange Lock, 5/16-18 x 5/8

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 2824856

SCREW, Hex Head Taptite, 5/16-18 1/2

$

$

Not available

10

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 2825205

CAPSCREW, Hex Head, 5/16-18 x 5/8

$

$

Not available

12

Simplicity 1674301

TRANS. SUPPORT ASSEMBLY

$

$

Not available

13

Simplicity 1674302

TRANSMISSION MOUNTING PLATE

$

$

Not available

14

Simplicity 1674320SM

ROD ASSEMBLY

$

$

Not available

15

Simplicity 929516

CAPSCREW, Hex Head, 1/4-28 x 1/2

$

$

Not available

16

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

17

Simplicity 1674324

SPACER

$

$

Not available

18

Simplicity 2176934SM

GRIP, Lever

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1674322

LEVER, Drive Control

$

$

Not available

20

Simplicity 1674714

SHIFT PLATE

$

$

Not available

21

Simplicity 2823333

CARRIAGE BOLT, 1/4-20 x 5/8

$

$

Not available

22

Simplicity 2818266

WASHER

$

$

Not available

23

TRANSMISSION, 3 Speed Peerless

$

$

Not available

24

Simplicity 2823358

NUT, Hex, Centerlock, 1/4-20

$

$

Not available

25

Simplicity 2823362

NUT, Hex, Centerlock, 5/16-18

$

$

Not available

26

Simplicity 1674318SM

IDLER ARM ASSEMBLY

$23.99

$

Usually ships in 2-12 days

0

27

Simplicity 1674333SM

SETSCREW, Square Head, /516-18 x 3/4

$5.99

$

Usually ships in 2-12 days

0

28

Simplicity 2830670SM

KEY, Hi-Pro

$2.49

$

Usually ships in 2-12 days

0

29

Simplicity 1674306SM

TRANSMISSION PULLEY

$48.99

$

Usually ships in 2-12 days

0

30

Simplicity 1679655SM

AUGER DRIVE PULLEY

$69.99

$

Usually ships in 2-12 days

0

31

Simplicity 1674308SM

V-BELT, Transmission Drive

$23.99

$

In Stock, only 1 left!

0

32

Simplicity 1674312SM

V-BELT, Auger Drive

$28.99

$

In Stock, only 3 left!

0

33

Simplicity 2830601

SCREW, Hex Head Taptite, 5/16-18 x 5/8

$

$

Not available

34

Simplicity 2821968

CAPSCREW, Hex Head, 3/8-16 x 1-3/8

$

$

Not available

35

Simplicity 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0
