555 - Husqvarna Chainsaw (Original) CRANKCASE Parts Diagram

Chainsaw

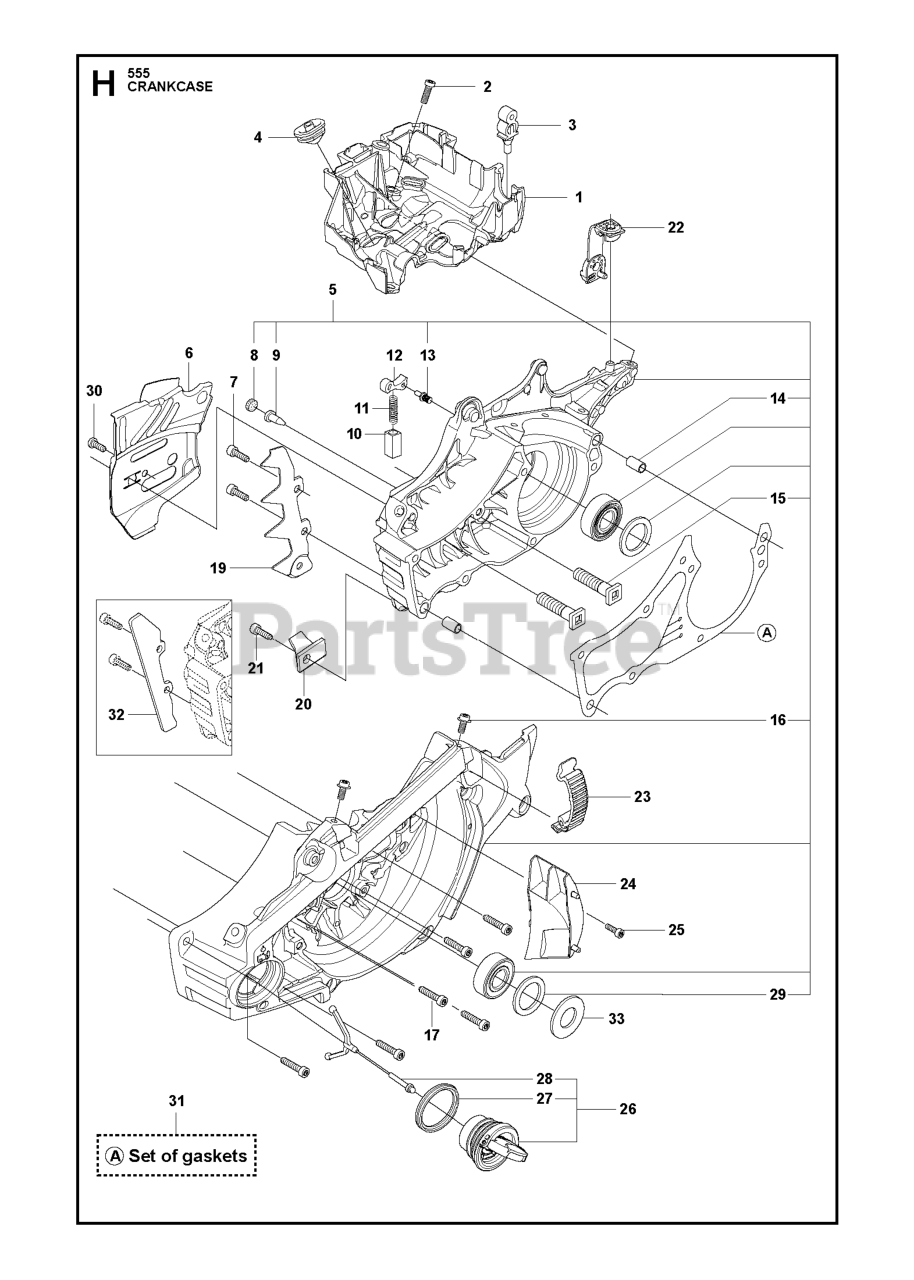

CRANKCASE Parts Diagram

  • Title

19

Husqvarna 577935201

SPIKES

$11.99

$

Usually ships in 3-10 days

0

25

Husqvarna 526818101

SCREW ITXSCM M4X15 T27 12.9 T

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 581559201

GROMMET

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 505201101

CHAIN GUIDE PLATE

$11.99

$

In Stock, only 1 left!

0

3

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

12

Husqvarna 505201201

CATCH

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 589241101

SEALING

$8.99

$

In Stock, only 2 left!

0

24

Husqvarna 588065501

AIR NOZZLE

$6.99

$

In Stock, only 1 left!

0

5

Husqvarna 575380221

CRANKCASES

$

$

Not available

7

Husqvarna 575793501

SCREW ITXPANM M5X16 T27 10.9

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 537210701

GUIDE

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525755202

SCREW ITXSCFM

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588193901

Carburetor base

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503751801

PIN

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 503894703

CLIP GRAY
(Superseded to 595303003)

Note: GREY

$10.99

$

In Stock, Qty 10

0

30

Husqvarna 525887401

SCREW CITXPANT
(Superseded to 503212813)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 505217301

BAR BOLT

$5.99

$

In Stock, only 1 left!

0

31

Husqvarna 575270003

GASKET KIT

Note: A=set of gaskets

$21.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 8

0

20

Husqvarna 537377902

CHAIN CATCHER

$7.99

$

In Stock, Qty 14

0

29

Husqvarna 525391201

RADIAL SEAL

Note: - up to s/n 20202399999

$17.99

$

In Stock, only 2 left!

0

33

Husqvarna 596911301

CAPS

Note: s/n from 20202400001 -

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 525798103

SCREW

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 575841104

SCREW ITXSCM M5X25 12.9 TBO T

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 593806001

GUIDE BUSHING

$9.99

$

In Stock, Qty 6

0

32

Husqvarna 574889801

RP ENCLOSED KIT
(Superseded to 525347601)

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, only 4 left!

0

16

Husqvarna 525824401

SCREW ITXSCM WASHER M5X12 T27

$7.99

$

Usually ships in 3-10 days

0

28

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

26

Husqvarna 522620003

TANK CAP ASSY

$13.99

$

In Stock, only 2 left!

0

22

Husqvarna 505125801

DEFLECTION LIMITER

$6.99

$

Usually ships in 3-10 days

0
