555 - Husqvarna Chainsaw (2011-03) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

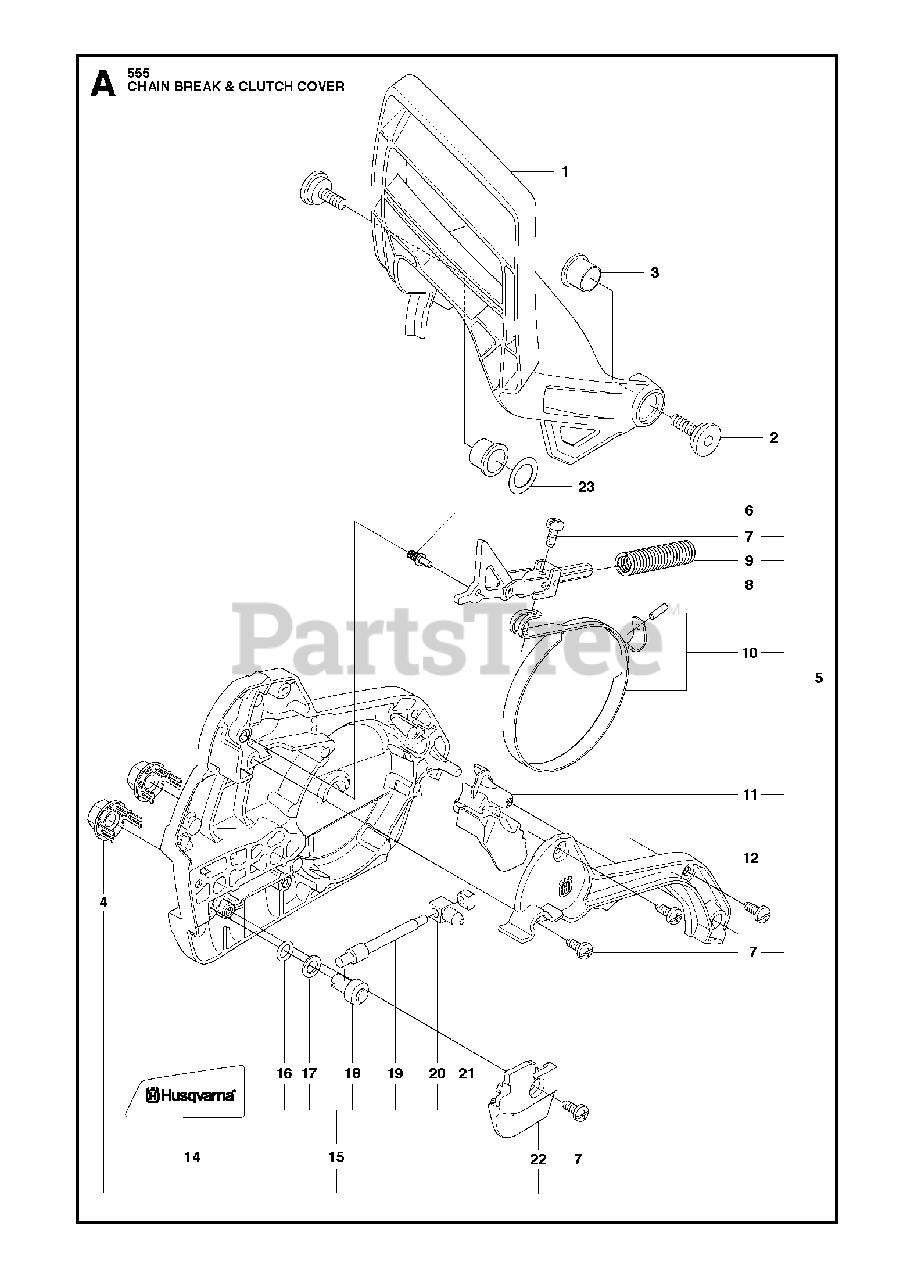

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title

1

Husqvarna 505200901

HAND GUARD
(Superseded to 505200902)

$26.99

$

In Stock, only 1 left!

0

2

Husqvarna 537209001

SCREW

$4.99

$

In Stock, only 3 left!

0

3

Husqvarna 537202801

BUSHING

$5.99

$

In Stock, Qty 9

0

4

Husqvarna 505197301

NUT RETAINER ASSY

Note: . 5

$7.99

$

In Stock, only 2 left!

0

5

Husqvarna 505199002

CLUTCH COVER ASSY
(Superseded to 505199006)

$145.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503751801

PIN

Note: . 5

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 503217010

SCREW

Note: . 5

$4.99

$

In Stock, Qty 17

0

8

Husqvarna 505199301

KNEE JOINT ASSY

Note: . 5

$22.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503908301

SPRING
(Superseded to 505892601)

Note: . 5

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 505199501

BRAKE BAND ASSY
(Superseded to 505199502)

Note: . 5

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 505201601

GUARD

Note: . 5

$7.99

$

In Stock, only 1 left!

0

12

Husqvarna 505199701

COVER
(Superseded to 505199703)

Note: . 5

$11.99

$

In Stock, only 3 left!

0

14

Husqvarna 523058001

LABEL

Note: . 5

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 575260401

CHAIN TENSIONER KIT
(Superseded to 575260404)

Note: . 5

$11.99

$

In Stock, only 2 left!

0

16

Husqvarna 740480702

O-RING

Note: . 15 5

$7.49

$

In Stock, only 4 left!

0

17

Husqvarna 503230063

WASHER

Note: . 15 5

$6.49

$

In Stock, only 3 left!

0

18

Husqvarna 537079401

RP ADJUSTER
(Superseded to 537079402)

Note: . 15 5

$13.99

$

In Stock, only 2 left!

0

19

Husqvarna 537286501

SCREW
(Superseded to 575260404)

Note: . 15 5

$11.99

$

In Stock, only 2 left!

0

20

Husqvarna 537286601

PAWL

Note: . 15 5

$34.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537017401

SLEEVE

Note: . 15 5

$6.49

$

In Stock, only 1 left!

0

22

Husqvarna 505199801

CHAIN GUIDE

Note: . 5

$5.99

$

In Stock, Qty 9

0

23

Husqvarna 503230085

WASHER STEEL

$4.99

$

Usually ships in 3-10 days

0
