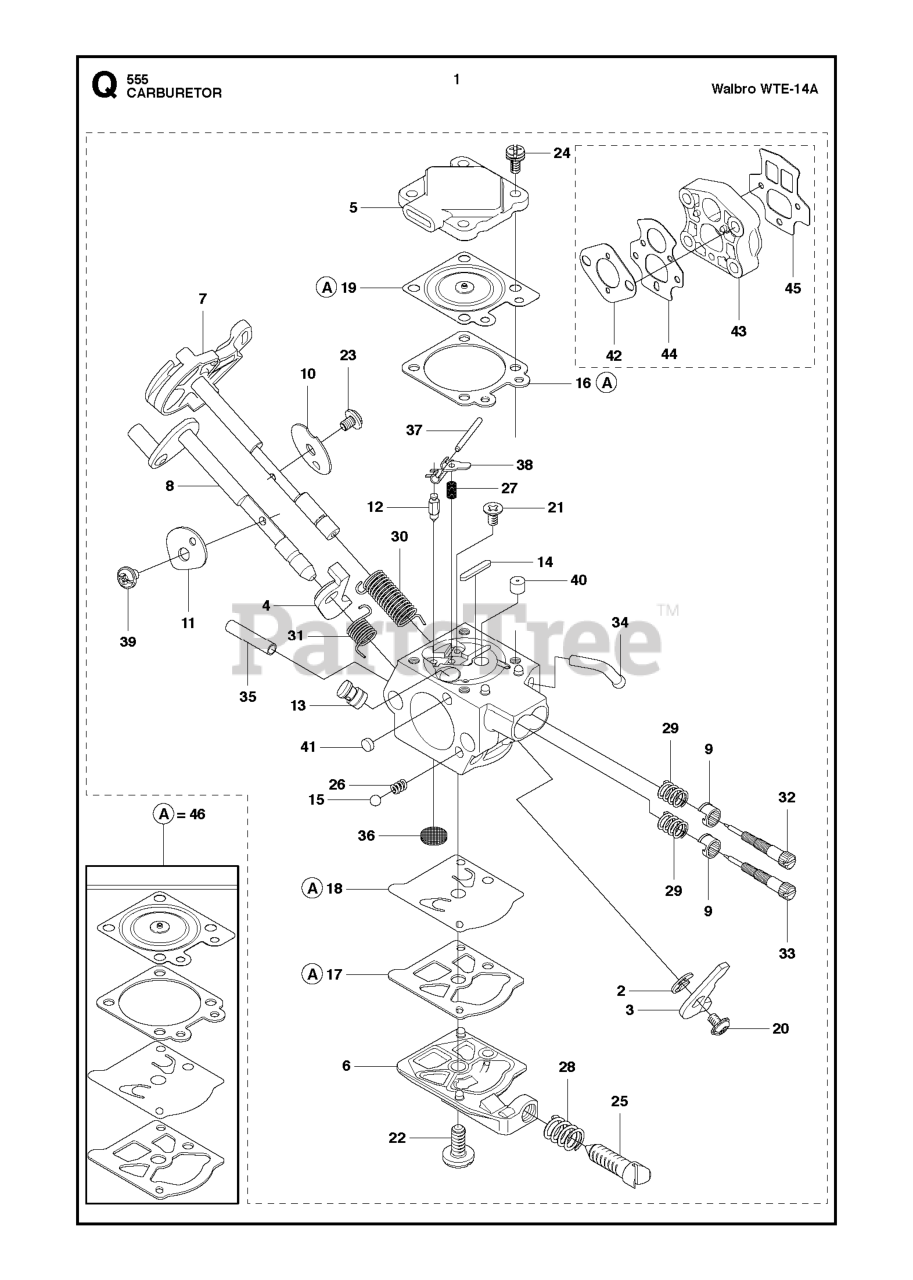

555 FRM - Husqvarna Brush Cutter CARBURETOR Parts Diagram

Brush Cutter

CARBURETOR Parts Diagram

  • Title

25

Husqvarna 537408201

SCREW

$17.99

$

In Stock, only 1 left!

0

39

Husqvarna 544111501

SCREW

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 504130906

GASKET

$11.99

$

In Stock, only 3 left!

0

43

Husqvarna TBD

Note: Delivered with 510 24 20-01. Separate spare part, see page J.

$

$

Not available

4

Husqvarna 544177701

LEVER

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 503574301

PLUG WELCH

$

$

Not available

6

Husqvarna 503584301

COVER

$6.99

$

Usually ships in 3-10 days

0

1

Husqvarna 586108801

CARBURETOR

Note: s/n from 20130600067 -

$136.99

$

In Stock, only 4 left!

0

10

Husqvarna 505427101

VALVE

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 504350906

GASKET

$11.99

$

In Stock, Qty 7

0

12

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

40

Husqvarna 505426901

JET

$

$

Not available

30

Husqvarna 544177601

SPRING

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 502846901

PLUG

$10.99

$

Usually ships in 3-10 days

0

32

Husqvarna 502847201

NEEDLE

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 537003401

SCREW
(Superseded to 501468701)

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 501468401

SPRING

$7.99

$

In Stock, only 1 left!

0

20

Husqvarna 501468701

SCREW

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544970701

LEVER

$

$

Not available

22

Husqvarna 501466901

SCREW

$9.49

$

In Stock, Qty 5

0

46

Husqvarna 515999601

KIT

$13.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544043601

SHAFT

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 574358101

COVER

$7.82

$

Usually ships in 3-10 days

0

33

Husqvarna 502847301

NEEDLE

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 544970801

LIMITER CAP

$8.99

$

In Stock, only 2 left!

0

37

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

38

Husqvarna 502847401

LEVER

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 586154001

CARBURETOR KIT

Note: s/n up to - 20130600067

$113.99

$

Usually ships in 3-10 days

0

13

Husqvarna 502846801

NOZZLE ASSY

$12.99

$

Usually ships in 3-10 days

0

35

Husqvarna 544971601

FITTING

$

$

Not available

31

Husqvarna 544971101

SPRING

$

$

Not available

18

Husqvarna 577016601

DIAPHRAGM

$14.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505316736

E CLIP
(Superseded to 502119801)

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 544044001

SHAFT

$13.99

$

Usually ships in 3-10 days

0

24

Husqvarna 537003101

SCREW

$9.49

$

In Stock, only 3 left!

0

21

Husqvarna 502847101

SCREW

$7.99

$

Usually ships in 3-10 days

0

27

Husqvarna 501795901

SPRING

$11.99

$

Usually ships in 3-10 days

0

15

Husqvarna 501468501

BALL

$7.99

$

Usually ships in 3-10 days

0

34

Husqvarna 544971501

FITTING

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 544971001

SPRING

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580804201

DIAPHRAGM

$102.99

$

Usually ships in 3-10 days

0

36

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

11

Husqvarna 537109601

VALVE

$

$

Not available
