555 (314-555-100) - Cub Cadet 24" Snow Thrower (1984) Frame, Belts & Pulleys And Engine Plate Assemblies Parts Diagram

24" Snow Thrower

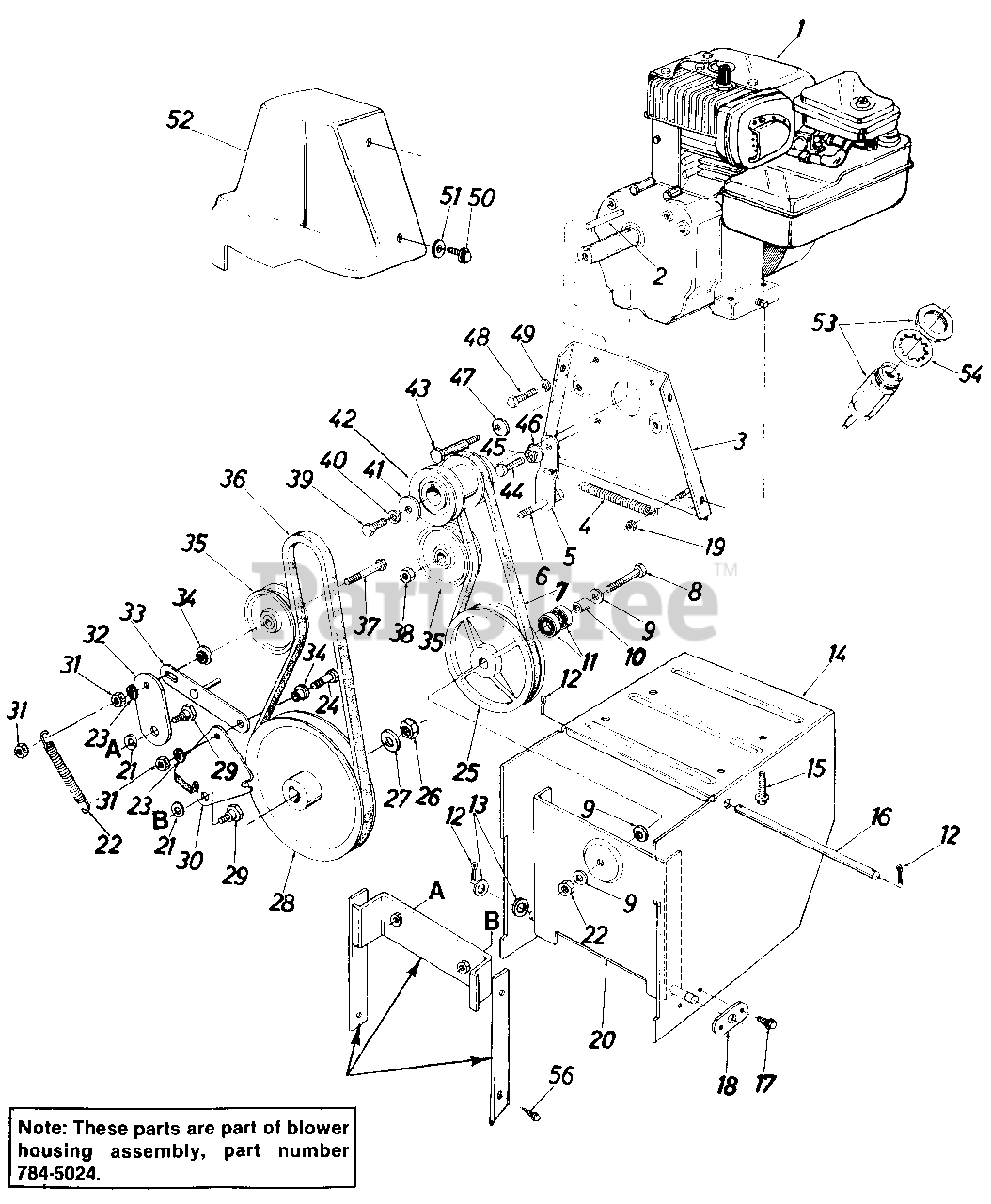

Frame, Belts & Pulleys And Engine Plate Assemblies Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 714-0133

Sq. Key 3/16" x 1.50" Lg.

$4.99

$

In Stock, Qty 12

0

3

Cub Cadet 05872

Engine Plate Ass'y.

$

$

Currently unavailable

4

Cub Cadet 732-0429

Extension Spring .50" O.D. x 3.91" Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

5

Cub Cadet 05896

Drive Clutch Idler Brkt.

$

$

Not available

6

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

7

Cub Cadet 754-0256

"V"-Belt 3/8" x 29.0" Lg.
(Superseded to 954-0256)

$47.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

9

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0396

Spacer .38" I.D. x 62" O.D. x .75" Lg.

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 741-0155

Ball Brg. .62" I.D. x 1.38" O.D. x .44
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 18

0

12

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 736-0272

Fl-Wash. .53" I.D. x 1.00" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 05874

Frame Ass'y.

$

$

Currently unavailable

15

Cub Cadet 710-0502

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

16

Cub Cadet 738-0497

Shaft .50" Dia. x 9.50" Lg.

$

$

Currently unavailable

17

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 05897

Axle Bracket

$

$

Not available

19

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

20

Cub Cadet 05878

Drive Pulley Support Brkt. Ass'y.

$

$

Currently unavailable

21

Cub Cadet 736-0219

Bell-Wash. .40" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-0429

Extension Spring .50" O.D. x 3.97" Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0723

Hex Scr. 3/8-16 x 1.25" Lg.

$4.99

$

In Stock, only 3 left!

0

25

Cub Cadet 05921

6.00" O.D. Drive Pulley Ass'y.

Note: (Incl. Ref. #11)

$

$

Not available

26

Cub Cadet 712-0923

Hex Jam Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0116

Fl-Wash. .64" I.D. x .94" O.D. x .06
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

28

Cub Cadet 756-0344

1/2" V-Pulley .625" I.D. x 7.50" O.D.

$81.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 738-0281

Shld. Bolt .625" Dia. x .170" Lg. (3/8-16)

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 784-5061

Brake Bracket Ass'y.

$

$

Not available

31

Cub Cadet 712-0342

Hex Ins. L-Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

32

Cub Cadet 05895

Auger Clutch Idler Brkt.

$

$

Not available

33

Cub Cadet 05870

Brake Linkage Ass'y.

$

$

Currently unavailable

34

Cub Cadet 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 756-0137

Flat Idler 2.25" G.D.

$

$

Not available

36

Cub Cadet 754-0257

"V"-Belt 3/8" x 38" Lg.
(Superseded to 954-0257)

$36.99

$

In Stock, only 1 left!

0

37

Cub Cadet 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.

$

$

Not available

38

Cub Cadet 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

39

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

40

Cub Cadet 736-0169

L-Wash 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 736-0247

Fl-Wash .40" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 16

0

42

Cub Cadet 756-0421

Double Groove Engine Pulley

$

$

Not available

43

Cub Cadet 738-0215

Shld. Scr. .498" x 3.0" Lg.
(Superseded to 738-0215A)

$9.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 5

0

45

Cub Cadet 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 748-0234

Shld. Spacer .320" I.D.

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" x .06

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

49

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0173

Fl-Wash. .28" I.D. x .75" O.D. x .06

$4.49

$

In Stock, only 4 left!

0

52

Cub Cadet 731-0642

Belt Cover

$31.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 725-0464

Ignition Switch
(Superseded to 925-1425)

$35.99

$

In Stock, only 1 left!

0

54

Cub Cadet 736-0225

Int. L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 2 left!

0

56

Cub Cadet 710-0623

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

Note: (Not Shown)

$9.49

$

In Stock, only 1 left!

0

Cub Cadet 784-5024

Blower Housing Assembly

$

$

Currently unavailable
