55402 (960) - Toro Suburban Lawn Tractor (SN: 009000001 - 009999999) (1969) TRANSAXLE ASSEMBLY Parts Diagram

Suburban Lawn Tractor

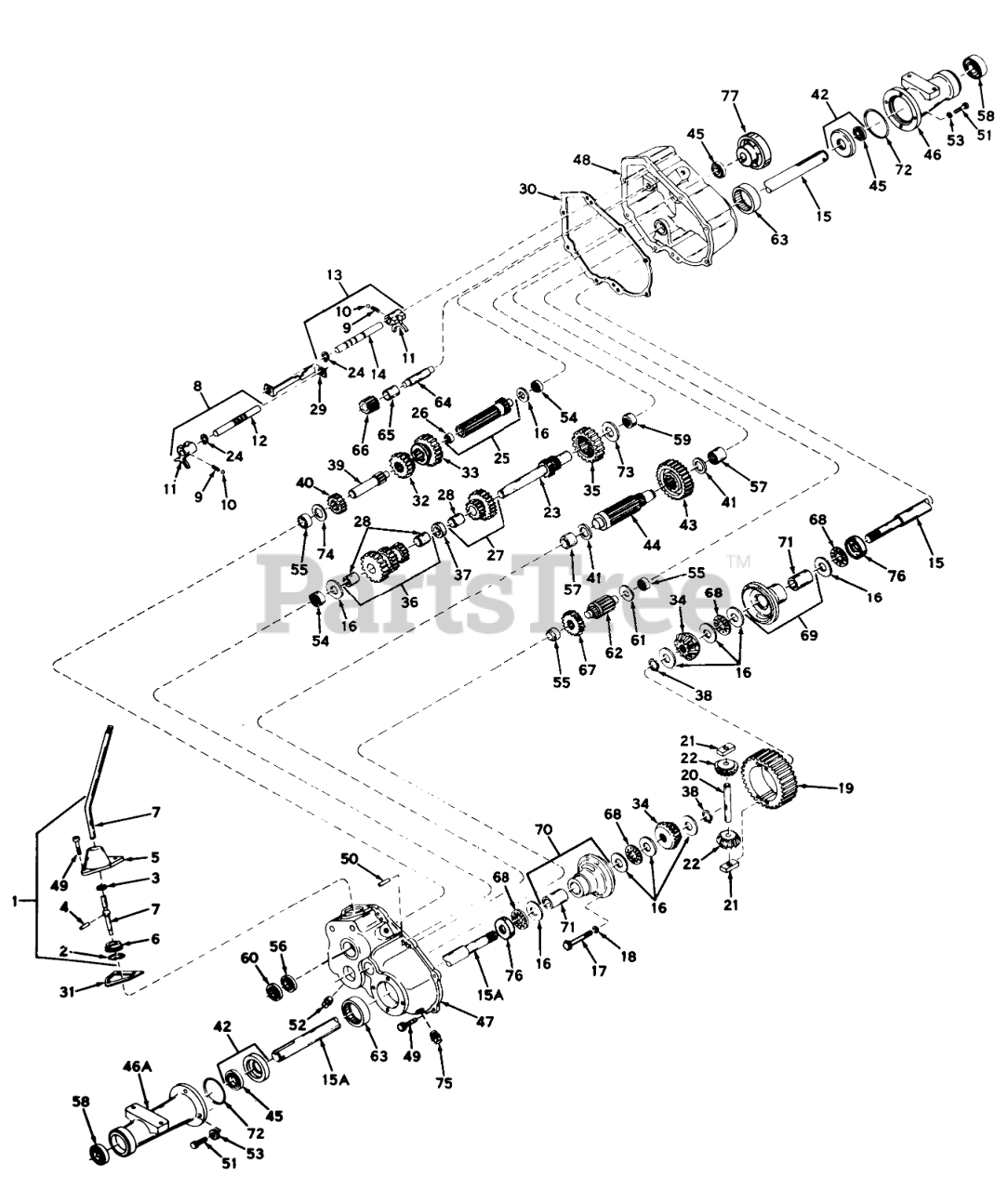

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 784062A

Lever & Housing Assy., Shift (Incl. Nos. 2 thru 7)

$

$

Currently unavailable

2

Toro 792016

Ring-Snap

$

$

Currently unavailable

3

Toro 792001

O Ring

$

$

Currently unavailable

4

Toro 792002

Roll Pin

$

$

Currently unavailable

5

Toro 784093

Housing-Shift Lever

$

$

Currently unavailable

6

Toro 784094

Keeper-Shift Lever

$

$

Currently unavailable

7

Toro 784063

Lever, Shift

$

$

Currently unavailable

8

Toro 784054

Rod Assy., Shift (Incl. Nos. 9 thru 12 & 24)

$

$

Currently unavailable

9

Toro 792003

Spring

$

$

Currently unavailable

10

Toro 792004

Piston ASM

$

$

Currently unavailable

11

Toro 784004

Shift Fork

$

$

Currently unavailable

12

Toro 784055

Rod, Shifter

$

$

Currently unavailable

13

Toro 784056

Rod Assy., Shift (Incl. Nos. 9, 10, 11, 14 & 24)

$

$

Currently unavailable

14

Toro 784057

Rod, Shifter

$

$

Currently unavailable

15

Toro 774046

Axle, R.H.

$

$

Currently unavailable

15A

Toro 774047

Axle, L.H.

$

$

Currently unavailable

16

Toro 780042

Washer

$

$

Currently unavailable

17

Toro 792005

Screw (1/4-20 x 2-1/2)

$

$

Currently unavailable

18

Toro 792006

Lockwasher

$

$

Currently unavailable

19

Toro 778033

Gear, Ring

$

$

Currently unavailable

20

Toro 786019

Pin-Drive

$

$

Currently unavailable

21

Toro 786027

Biock-Drive

$

$

Currently unavailable

22

Toro 778065

Pinion, Bevel

$

$

Currently unavailable

23

Toro 776029

Shaft & Gear, Brake

$

$

Currently unavailable

24

Toro 792017

Ring-Snap

$

$

Currently unavailable

25

Toro 776026

Shaft & Bearing Assy., Pinion (Incl. No. 26)

$

$

Currently unavailable

26

Toro 780018

Bearing

$

$

Currently unavailable

27

Toro 778034

Gear Cluster Assy. (Incl. No. 28)

$

$

Currently unavailable

28

Toro 780053

Bushing

$

$

Currently unavailable

29

Toro 784074

Stop-Shifter

$

$

Currently unavailable

30

Toro 788023

Gasket-Case & Cover

$

$

Currently unavailable

31

Toro 788022

Gasket-Lever Housing

$

$

Currently unavailable

32

Toro 778019

Gear, Shifting

$

$

Currently unavailable

33

Toro 778020

Gear, Shifting

$

$

Currently unavailable

34

Toro 778066

Gear, Bevel

$

$

Currently unavailable

35

Toro 778037

Gear-Spur

$

$

Currently unavailable

36

Toro 778035

Gear Cluster Assy. (Incl. No. 28)

$

$

Currently unavailable

37

Toro 786024

Spacer

$

$

Currently unavailable

38

Toro 792018

Ring-Snap

$

$

Currently unavailable

39

Toro 776027

Shaft, Input

$

$

Currently unavailable

40

Toro 778024

Gear (10 teeth)

$

$

Currently unavailable

41

Toro 780052

Washer-Thrust

$

$

Currently unavailable

42

Toro 788021

Seal & Retainer Assy., Oil (Incl. No. 45)

$

$

Currently unavailable

43

Toro 778036

Gear-Output

$

$

Currently unavailable

44

Toro 776028

Pinion-Output

$

$

Currently unavailable

45

Toro 788008

Seal-Oil

$

$

Currently unavailable

46

Toro 782024

Housing, R.H. Axle

$

$

Currently unavailable

46A

Toro 782025

Housing, L.H. Axle

$

$

Currently unavailable

47

Toro 770015

Case Assy., Transaxle (Incl. Nos. 54, 55, 57 & 63)

$

$

Currently unavailable

48

Toro 772019

Cover Assy., Transaxle (Incl. 54, 55, 57, 59 & 63)

$

$

Currently unavailable

49

Toro 792007

Screw

$

$

Currently unavailable

50

Toro 786026

Dowel Pin

$

$

Currently unavailable

51

Toro 792028

Screw (5/16-18 X 7/8)

$

$

Currently unavailable

52

Toro 792019

Plug-Magnetic Drain

$

$

Currently unavailable

53

Toro 792029

Lockwasher

$

$

Currently unavailable

54

Toro 780049

Bearing-Needle

$

$

Currently unavailable

55

Toro 780022

Bearing, Needle

$

$

Currently unavailable

56

Toro 780024

Bearing

$

$

Currently unavailable

57

Toro 780047

Bearing-Needle

$

$

Currently unavailable

58

Toro 780050

Bearing-Ball

$

$

Currently unavailable

59

Toro 780046

Bearing-Needle

$

$

Currently unavailable

60

Toro 788025

Seal-Oil

$

$

Currently unavailable

61

Toro 780001

Washer

$

$

Currently unavailable

62

Toro 776031

Shaft & Pinion

$

$

Currently unavailable

63

Toro 780048

Bearing Needle

$

$

Currently unavailable

64

Toro 776030

Shaft-Reverse Idler

$

$

Currently unavailable

65

Toro 786025

Spacer-Reverse Idler

$

$

Currently unavailable

66

Toro 778016

Idler Reverse

$

$

Currently unavailable

67

Toro 778038

Gear-Spur (22 Teeth)

$

$

Currently unavailable

68

Toro 780039

Bearing-Thrust

$

$

Currently unavailable

69

Toro 774039

Carrier Assy., Differential (Incl. No. 71)

$

$

Currently unavailable

70

Toro 774040

Carrier Assy., Differential (Incl. No. 71)

$

$

Currently unavailable

71

Toro 780041

Bushing

$

$

Currently unavailable

72

Toro 788024

O-Ring

$

$

Currently unavailable

73

Toro 780007

Washer-Thrust

$

$

Currently unavailable

74

Toro 780051

Washer

$

$

Currently unavailable

75

Toro 792010

Plug

$

$

Currently unavailable

76

Toro 780075

Race-Thrust

$

$

Currently unavailable

77

Toro 790002

Drum, Brake

$

$

Currently unavailable
