55402 (960) - Toro Suburban Lawn Tractor (SN: 009000001 - 009999999) (1969) CHASSIS ASSEMBLY Parts Diagram

Suburban Lawn Tractor

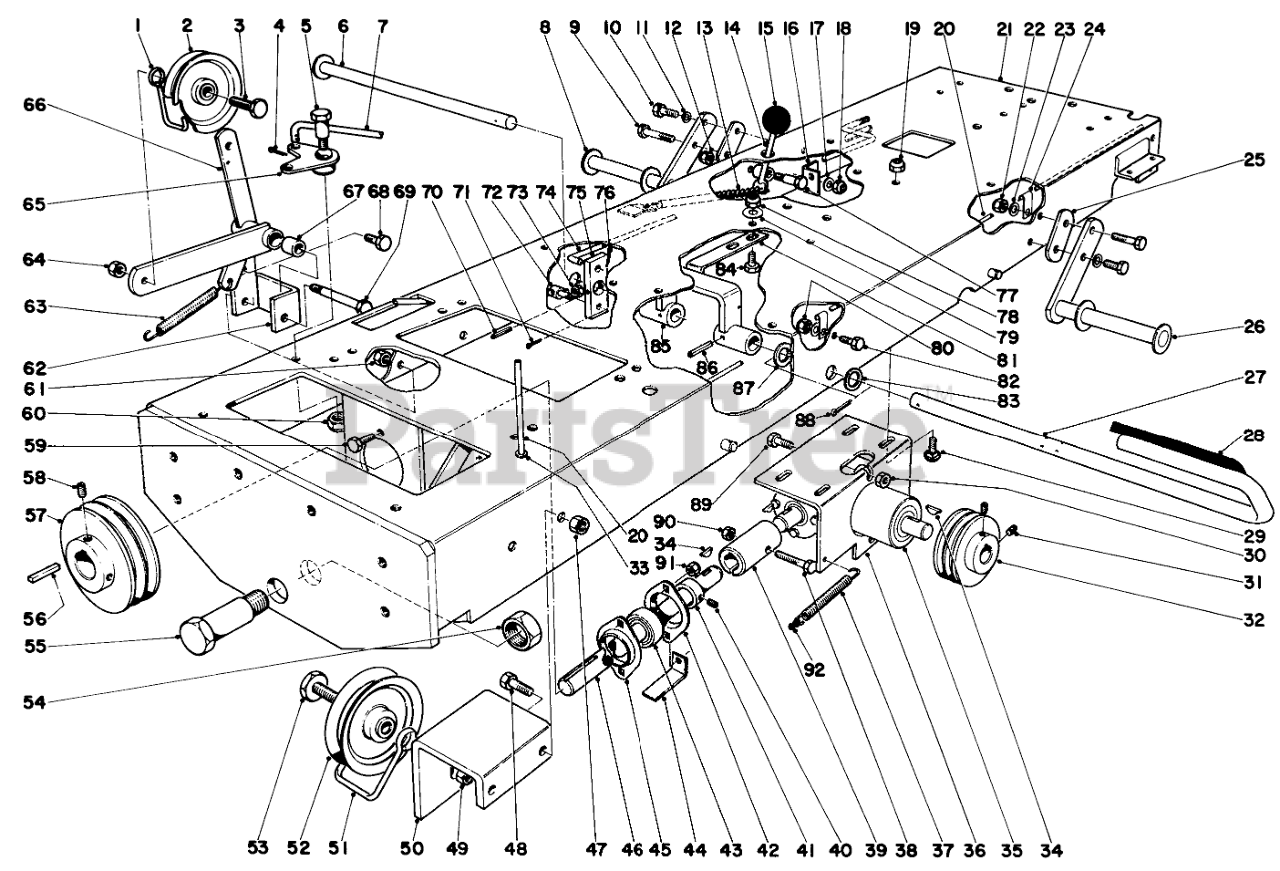

CHASSIS ASSEMBLY Parts Diagram

  • Title

1

Toro 7-0432

Belt Retainer

$

$

Not available

2

Toro 7-0431

IDLER PULLEY

$

$

Not available

3

Toro 32141-84S

Leveler Head Bolt

$

$

Currently unavailable

4

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

5

Toro 7-0135

Bolt

$

$

Not available

6

Toro 7-0381

Brake Shaft

$

$

Currently unavailable

7

Toro 7-3842

Idler Rod

$

$

Not available

8

Toro 7-3591

Bracket Foot Rest

$

$

Currently unavailable

9

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

12

32152-1S

Nut

$

$

Not available

13

Toro 7-0582

IDLER ARM SPRING

$

$

Not available

14

Toro 7-3813

Brake Lock

$

$

Currently unavailable

15

233-22S

Knob

$

$

Not available

16

Toro 7-3811

Brake Rod Retainer

$

$

Currently unavailable

17

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Toro 32152-2S

Nut

$

$

Currently unavailable

19

32152-1S

Nut

$

$

Not available

20

Toro 7-3843

Gas Line

$

$

Currently unavailable

21

Toro 7-3845

Chassis 950

$

$

Currently unavailable

22

Toro 32152-2S

Nut

$

$

Currently unavailable

23

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

24

Toro 7-0077

Clip

$

$

Not available

25

Toro 7-3288

Spacer Foot Rest

$

$

Currently unavailable

26

Toro 7-3274

Bracket Foot Rest

$

$

Currently unavailable

27

Toro 7-3837

Brake Crank Arm

$

$

Currently unavailable

28

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

29

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

30

Toro 32152-2S

Nut

$

$

Currently unavailable

31

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

32

Toro 7-0392

Pulley Drive

$

$

Currently unavailable

33

Toro 256-195S

Nyliner

$

$

Currently unavailable

34

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

35

Toro 7-0424

Gear Box

$

$

Currently unavailable

36

Toro 7-0423

Bracket Right Angle Gear Box

$

$

Currently unavailable

37

Toro 7-0393

Spring

$

$

Not available

38

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

39

Toro 7-0426

Coupling

$

$

Currently unavailable

40

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

41

Toro 7-3096

Collar

$

$

Currently unavailable

42

Toro 7-3095

Bearing Flange

$

$

Currently unavailable

43

Toro 7-3094

Bearing

$

$

Currently unavailable

44

Toro 7-0372

Belt Guide

$

$

Currently unavailable

45

Toro 251-208S

Bearing Incl. Ref. 41-43

$

$

Currently unavailable

46

Toro 7-0425

Drive Shaft

$

$

Currently unavailable

47

32152-1S

Nut

$

$

Not available

48

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

49

Toro 32152-7S

Nut

$

$

Currently unavailable

50

Toro 7-0430

Idler Bracket

$

$

Currently unavailable

51

Toro 7-0432

Belt Retainer

$

$

Not available

52

Toro 7-0431

IDLER PULLEY

$

$

Not available

53

Toro 32141-84S

Leveler Head Bolt

$

$

Currently unavailable

54

Toro 32152-6S

Nut

$

$

Currently unavailable

55

Toro 7-0371

Pivot Bolt

$

$

Not available

56

Toro 5-1865

KEY

$

$

Not available

57

Toro 7-0392

Pulley Drive

$

$

Currently unavailable

58

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

59

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

60

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

61

Toro 32152-2S

Nut

$

$

Currently unavailable

62

Toro 7-0375

Mounting Bracket Idler

$

$

Currently unavailable

63

Toro 7-0393

Spring

$

$

Not available

64

Toro 321S2-7S

Nut

$

$

Currently unavailable

65

Toro 7-0385

Bell Crank

$

$

Not available

66

Toro 7-0434

Idler Arm Incl. Ref. No. 67

$

$

Currently unavailable

67

Toro 256-171S

Bushing

$

$

Currently unavailable

68

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

69

Toro 7-0377

Shoulder Bolt

$

$

Currently unavailable

70

32121-71S

Roll Pin

$

$

Not available

71

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

72

Toro 7-0388

Pivot Clutch Rod

$

$

Currently unavailable

73

Toro 32152-4S

Nut

$

$

Currently unavailable

74

Toro 7-3808

Brake Rod

$

$

Currently unavailable

75

Toro 7-0382

Bracket Idler

$

$

Currently unavailable

76

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

77

Toro 7-0135

Bolt

$

$

Not available

78

32152-1S

Nut

$

$

Not available

79

Toro 7-0024

Washer

$

$

Currently unavailable

80

32152-1S

Nut

$

$

Not available

81

Toro 7-0395

Stop Brake Pedal

$

$

Currently unavailable

82

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

83

Toro 7-0691

Washer

$

$

Currently unavailable

84

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

85

Toro 7-0383

Bracket Assy.

$

$

Currently unavailable

86

32121-71S

Roll Pin

$

$

Not available

87

Toro 7-0126

Washer

$

$

Not available

88

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

89

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

90

32152-1S

Nut

$

$

Not available

91

32152-1S

Nut

$

$

Not available

Toro 7-3993

Chassis 960

Note: Not illustrated

$

$

Currently unavailable

92

Toro 7-1050

S-Hook

$

$

Currently unavailable
