55402 (960) - Toro Suburban Lawn Tractor (SN: 000000001 - 000999999) (1970) HOOD & GRILLE ASSEMBLY Parts Diagram

Suburban Lawn Tractor

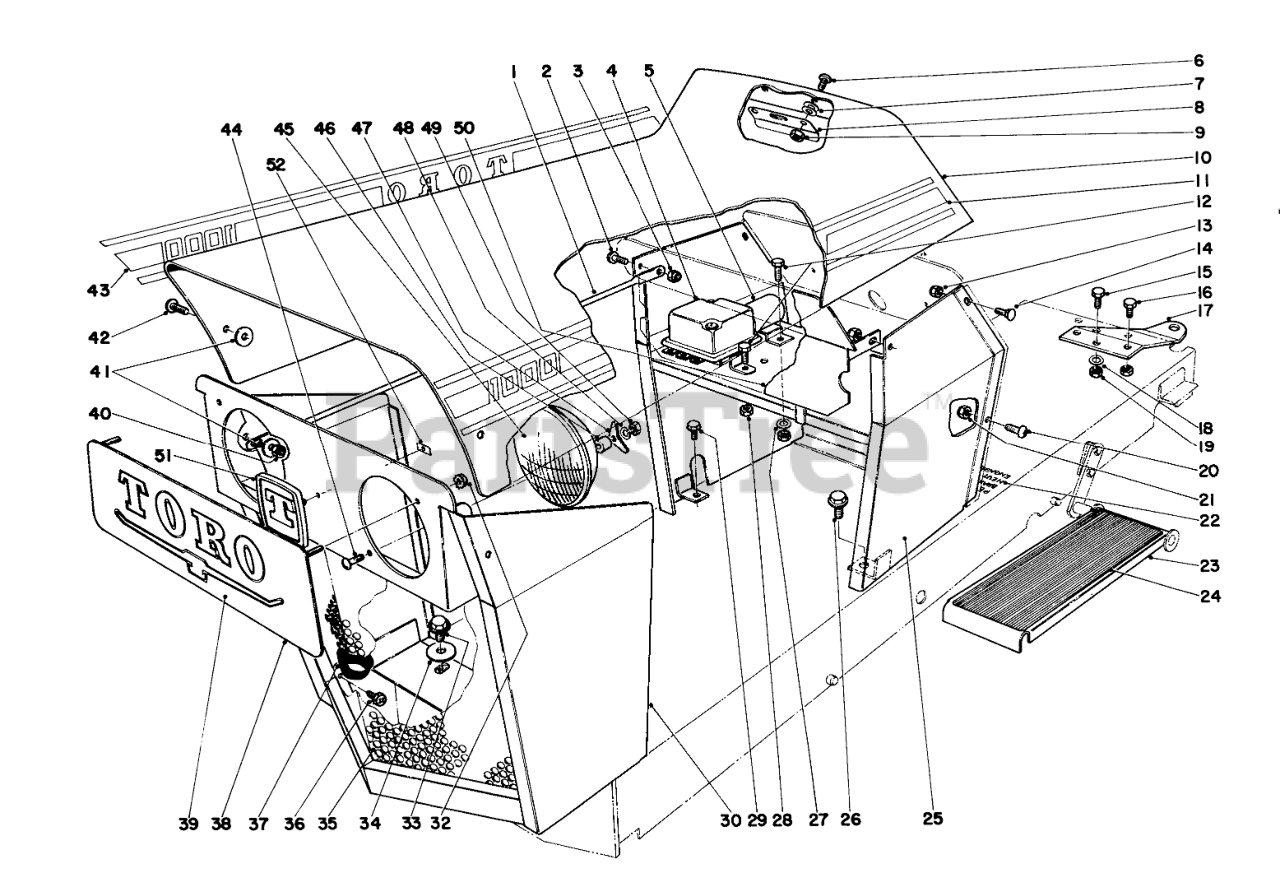

HOOD & GRILLE ASSEMBLY Parts Diagram

  • Title
1

Toro 7-3825

Rod Hood Support

$

$

Currently unavailable

2

Toro 3274-31S

Capscrew Socket Head

$

$

Currently unavailable

$

$

Currently unavailable

4

218-334S

Voltage Regulator

$

$

Not available

5

Toro 218-335S

Solenoid

$

$

Currently unavailable

6

3258-157S

Screw, Phillips

$

$

Not available

7

3256-16S

Washer

$

$

Not available

8

Toro 7-3326

Hood Latch

$

$

Currently unavailable

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Toro 7-6680

Decal Side L.H. 10 H.P.

$

$

Currently unavailable

Toro 7-6700

Decal Side Hood L.H. 12 H.P.

Note: Not illustrated

$

$

Currently unavailable

12

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

13

$

$

Currently unavailable

14

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

15

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

17

Toro 7-0463

Chassis Hitch

$

$

Currently unavailable

18

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

$

$

Currently unavailable

20

3274-32S

Capscrew Socket Head

$

$

Not available

21

32152-1S

Nut

$

$

Not available

22

Toro 3-7938

Decal Clutch Release

$

$

Currently unavailable

23

Toro 7-3262

Foot Rest

$

$

Currently unavailable

24

Toro 7-3273

Pad Foot Rest

$

$

Currently unavailable

25

Toro 7-3857

Battery Support

$

$

Currently unavailable

26

Toro 32140-61S

Sems Screw

$

$

Currently unavailable

27

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

$

$

Currently unavailable

29

Toro 32140-45

Screw-HH

$

$

Not available

30

Toro 7-3850

Grille Frame W.A.

$

$

Currently unavailable

32

$

$

Currently unavailable

33

Toro 32140-61S

Sems Screw

$

$

Currently unavailable

34

Toro 7-0532

Washer

$

$

Currently unavailable

35

Toro 7-3854

Grille

$

$

Currently unavailable

36

Toro 32104-84S

Self Tapping Screw

$

$

Currently unavailable

37

Toro 7-3834

Grommet

$

$

Currently unavailable

38

Toro 7-3847

Head Light Cover

$

$

Currently unavailable

39

Toro 7-3978

Decal Cover Plate

$

$

Currently unavailable

40

32152-1S

Nut

$

$

Not available

41

Toro 7-0533

Washer

$

$

Currently unavailable

42

3274-32S

Capscrew Socket Head

$

$

Not available

43

Toro 7-6670

Side Hood R. H. 10 H.P.

$

$

Currently unavailable

Toro 7-6690

Decal Side Hood R.H. 12 H.P.

Note: Not illustrated

$

$

Currently unavailable

44

Toro 3251-4

SCREW-SRH

$0.99

$

In Stock, only 2 left!

0

45

Toro 7-1646

HEAD LAMP

$

$

Currently unavailable

46

Toro 7-3501

Spacer

$

$

Currently unavailable

47

Toro 7-3505

Clip 960

$

$

Currently unavailable

48

Toro 3253-12

WASHER-LOCK/SP

$

$

Not available

49

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

50

Toro 7-4306

Heat Deflector

$

$

Currently unavailable

51

Toro 7-5400

Logo Plate Recoil

$

$

Currently unavailable

52

Toro 3290-275

Timmerman Nut

$

$

Currently unavailable
