55402 (960) - Toro Suburban Lawn Tractor (SN: 000000001 - 000999999) (1970) FRONT AXLE ASSEMBLY Parts Diagram

Suburban Lawn Tractor

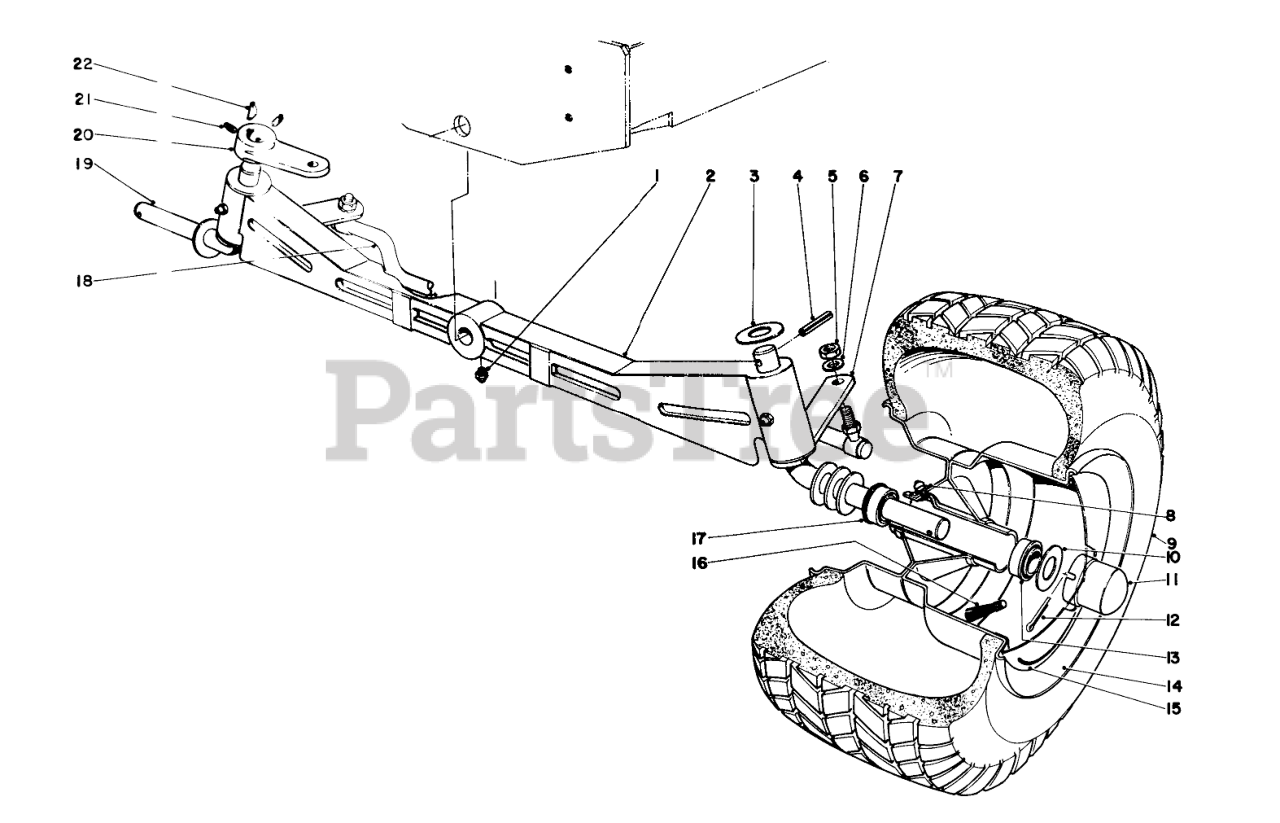

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

302-43S

Zerk Fitting

$

$

Not available

2

Toro 7-3846

Front Axle Housing

$

$

Not available

3

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

4

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 20+

0

5

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

6

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

7

Toro 7-0416

Axle Assy., L.H.

$

$

Currently unavailable

8

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

9

231-39S

Tire

$

$

Not available

10

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

11

Toro 217-64S

Hub Cap

$

$

Currently unavailable

12

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

13

Toro 251-210S

Bearing, Outer

$

$

Currently unavailable

14

Toro 217-79

Rim

$

$

Currently unavailable

15

Toro 217-77

Hub Cap 960

$

$

Currently unavailable

16

Toro 232-21

VALVE -STEM
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

17

Toro 251-209S

Bearing, Inner

$

$

Currently unavailable

18

Toro 7-0417

Tie Rod

$

$

Currently unavailable

19

Toro 7-0415

Axle Assy., R.H.

$

$

Currently unavailable

20

Toro 7-0418

Steering Lever

$

$

Currently unavailable

21

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

22

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

Toro 7-3340

Front Wheel Assy.

Note: Not illustrated

$

$

Currently unavailable
