554 (590-554C-100) - Cub Cadet Belt Driven Vacuum Collector att Catcher Parts Diagram

Belt Driven Vacuum Collector

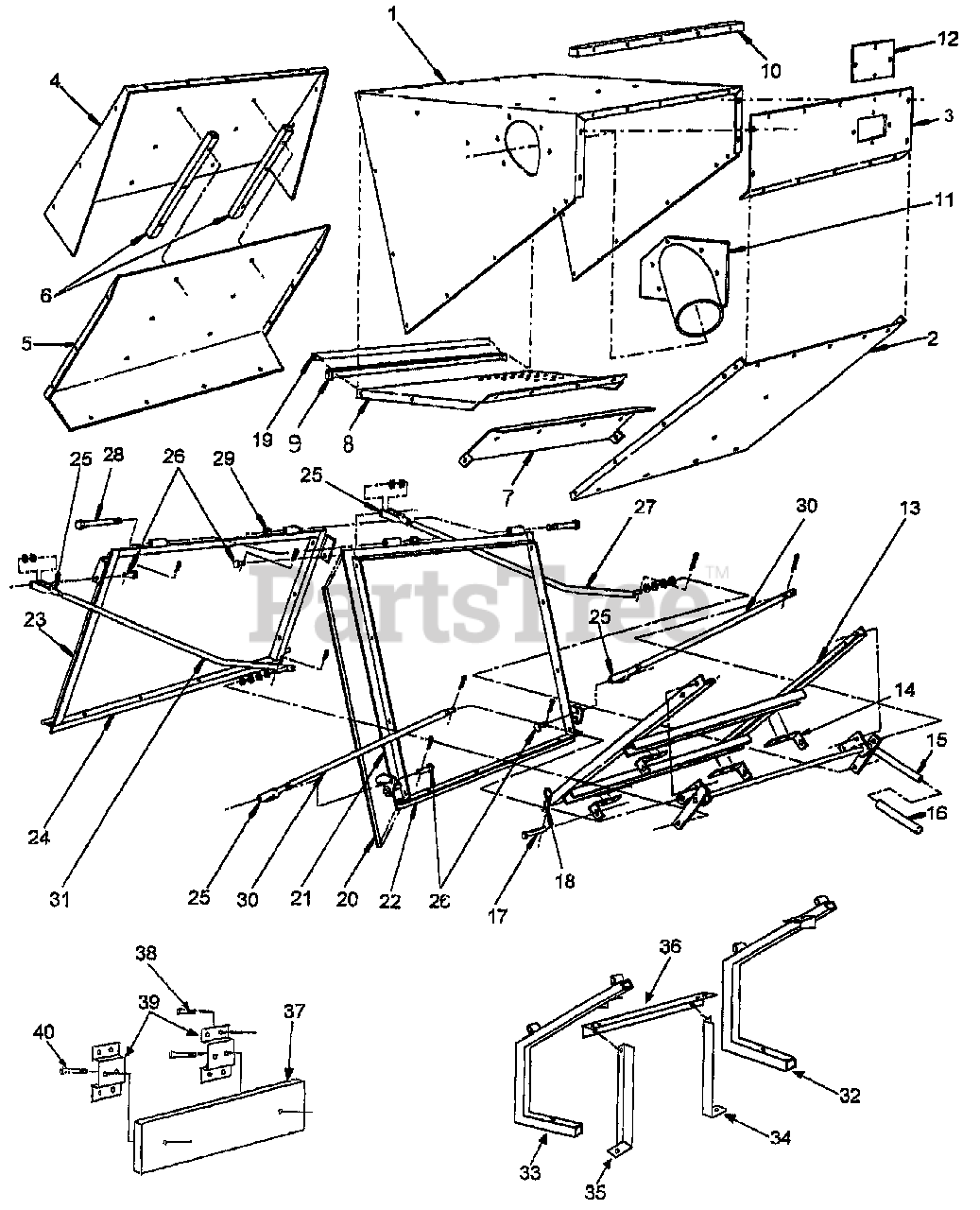

Catcher Parts Diagram

  • Title
1

Cub Cadet TS-151175

CATCHER BODY

$

$

Not available

2

Cub Cadet TS-151232

CATCHER BOX BOTTOM

$

$

Not available

3

Cub Cadet TS-151358

CATCHER FRONT

$

$

Not available

4

Cub Cadet TS-151419

OUTER DOOR SHELL

$

$

Not available

5

Cub Cadet TS-151591

INNER DOOR SHELL

$

$

Not available

6

Cub Cadet TS-152068

DOOR VENT TUBING

$

$

Not available

7

Cub Cadet TS-151768

INTAKE DEFLECTOR

$

$

Not available

$

$

Not available

9

Cub Cadet TS-158940

REAR SCREEN SUPPORT

$

$

Not available

10

Cub Cadet TS-159080

FRONT BUMPER

$

$

Not available

11

Cub Cadet TS-152340

INTAKE TUBE 6"

$

$

Not available

12

Cub Cadet TS-150202

VIEWING WINDOW

$

$

Not available

13

Cub Cadet TS-153600

CATCHER FRAME BASE

$

$

Not available

14

Cub Cadet TS-153500

BASE FRAME TAB

$

$

Not available

15

Cub Cadet TS-152790

LEVER DUMP ASSEMBLY

$

$

Not available

16

TS-150876

VINYL GRIP 5

$

$

Not available

17

Cub Cadet TS-150890

CLEVIS PIN 1/2" X 3"

$6.99

$

In Stock, only 2 left!

0

18

TS-160995

HAIR SPRING COTTER #6

$

$

Not available

19

Cub Cadet TS-150755

RUBBER SEAL

$

$

Not available

20

$

$

Not available

21

Cub Cadet TS-153290

CATCHER FRAME OPENING

$

$

Not available

22

Cub Cadet TS-153050

BOTTOM CATCHER FRAME OPENING

$

$

Not available

23

Cub Cadet TS-153330

CATCHER DOOR FRAME

$

$

Not available

24

Cub Cadet TS-153010

BOTTOM DOOR FRAME

$

$

Not available

25

Cub Cadet TS-150803

ADJUSTABLE YOKE END 3/8" -24

$

$

Not available

26

Cub Cadet TS-150810

CLEVIS PIN 3/8" X 1-1/8"

$

$

Not available

27

Cub Cadet TS-156713

HINGE ROD LF

$

$

Not available

28

1/2" X 5" HEX HEAD BOLT

1/2" X 5" HEX HEAD BOLT

$

$

Not available

29

1/2"- 13 NYLOCK NUT

1/2"- 13 NYLOCK NUT

$

$

Not available

30

$

$

Not available

31

Cub Cadet TS-156703

HINGE ROD RT

$

$

Not available

32

Cub Cadet TS-154370

LEFT CATCHER MOUNTING FRAME

$

$

Not available

33

Cub Cadet TS-154365

RIGHT CATCHER MOUNTING FRAME

$

$

Not available

34

Cub Cadet TS-154320

RIGHT CATCHER FRAME SUPPORT

$

$

Not available

35

Cub Cadet TS-154325

LEFT CATCHER FRAME SUPPORT

$

$

Not available

36

Cub Cadet TS-154315

CATCHER MOUNTING FRAME CROSS BAR

$

$

Not available

37

Cub Cadet TS-285298

WEIGHT BAR

$

$

Not available

38

5/16" -18 x 1 CARRIAGE BOLT

5/16" -18 x 1 CARRIAGE BOLT

$

$

Not available

39

Cub Cadet TS-159511

WEIGHT MOUNTING BRACKET

$

$

Not available

40

3/8" x 4.5" x 16 HEX HEAD BOLT

3/8" x 4.5" x 16 HEX HEAD BOLT

$

$

Not available
