55302 (950) - Toro Suburban Lawn Tractor (SN: 009000001 - 009999999) (1969) RIGHT ANGLE GEAR BOX ASSEMBLY Parts Diagram

Suburban Lawn Tractor

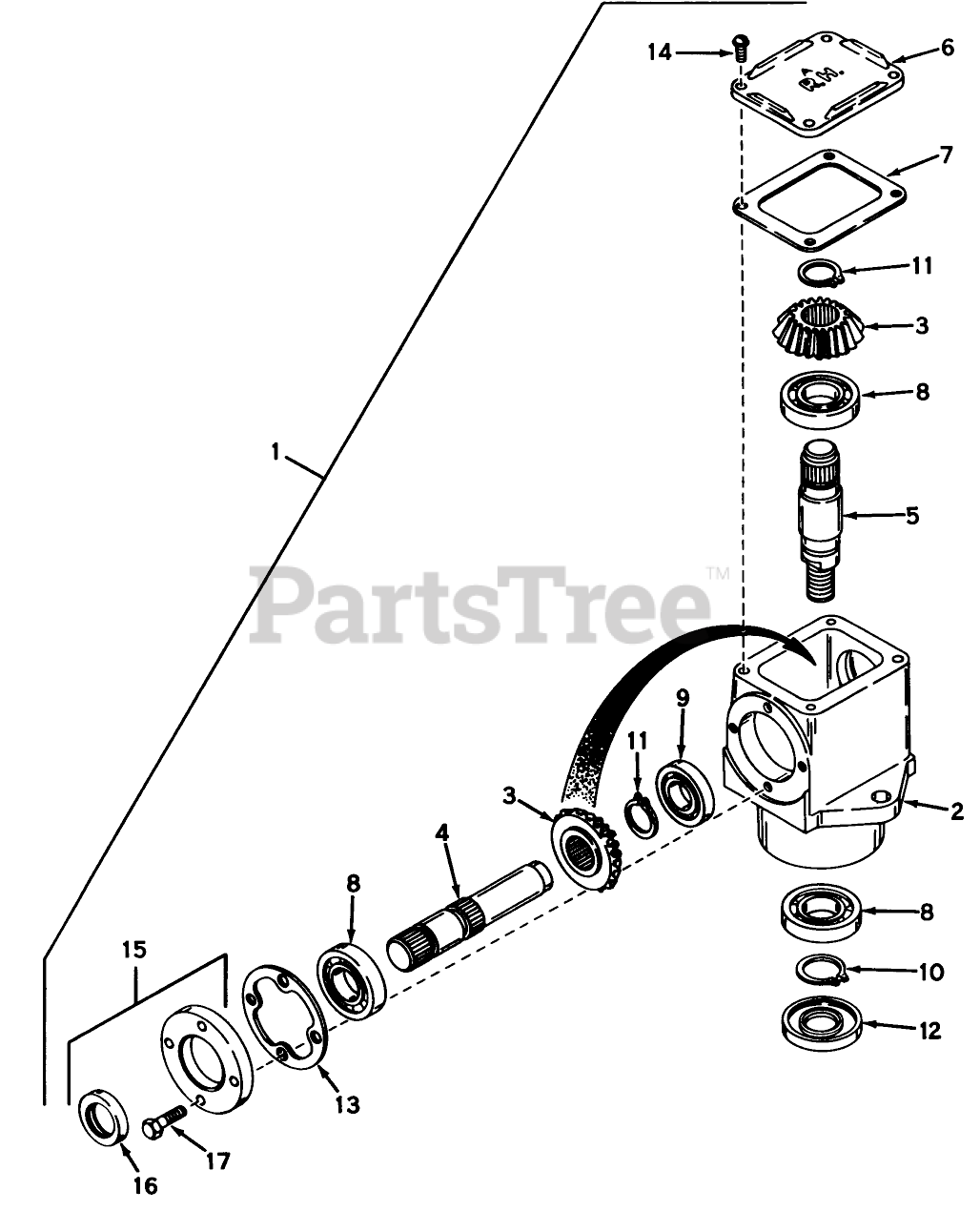

RIGHT ANGLE GEAR BOX ASSEMBLY Parts Diagram

  • Title

1

Toro 794001

Head Assy., Right Hand (Incl. Nos. 2 thru 15)

$

$

Currently unavailable

2

Toro 770026

Housing, Right Angle Drive

$

$

Currently unavailable

3

Toro 778046

Bevel Gear

$

$

Currently unavailable

4

Toro 776040

Shaft, Input Pinion

$

$

Currently unavailable

5

Toro 776042

Shaft, Output

$

$

Currently unavailable

6

Toro 772034

Cover, Right Hand

$

$

Currently unavailable

7

Toro 788028

Gasket

$

$

Currently unavailable

8

Toro 780034

Bearing

$

$

Currently unavailable

9

Toro 780024

Bearing

$

$

Currently unavailable

10

Toro 788019

Ring-Snap

$

$

Currently unavailable

11

Toro 788018

Ring-Snap

$

$

Currently unavailable

12

Toro 788029

Seal

$

$

Currently unavailable

13

Toro 788030

Gasket

$

$

Currently unavailable

14

Toro 32104-26

Screw, Rd. Hd. Self Tap

Note: Toro Part No.

$

$

Currently unavailable

15

Toro 786029

Cap & Seal Assy., Retainer (Incl. Nos. 16 & 17)

$

$

Currently unavailable

16

Toro 788031

Oil Seal

$

$

Currently unavailable

17

Toro 321-5

SCREW-HH

Note: Toro Part No.

$0.99

$

In Stock, Qty 20+
