55302 (950) - Toro Suburban Lawn Tractor (SN: 001000001 - 001999999) (1971) STEERING AND LIFT ARM ASSEMBLY Parts Diagram

Suburban Lawn Tractor

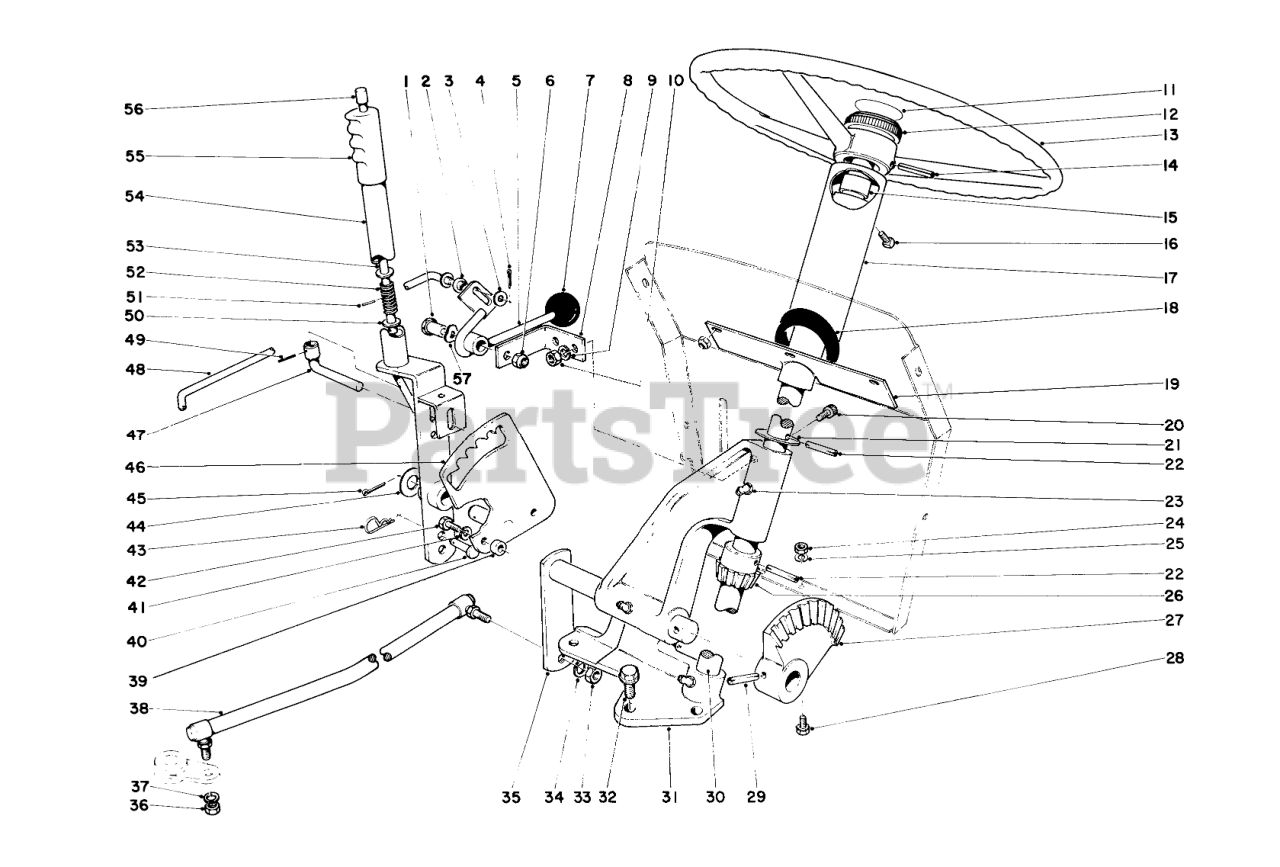

STEERING AND LIFT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 7-0135

Bolt

$

$

Not available

2

Toro 256-193

Bushing

$

$

Not available

3

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

5

Toro 7-3836

Clutch Lever

$

$

Currently unavailable

6

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

7

Toro 233-22

KNOB-CONTROL

$22.99

$

Usually ships in 3-6 days

0

8

Toro 7-3840

Idler Bracket

$

$

Currently unavailable

9

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

11

Toro 7-4322

Decal Steering Cap

$

$

Not available

12

Toro 7-4321

Steering Cap

$

$

Not available

13

Toro 238-5

Steering Wheel

$

$

Not available

14

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

15

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

16

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

17

Toro 7-3572

Cover Steering Support

$

$

Currently unavailable

18

Toro 7-3653

Grommet

$

$

Currently unavailable

19

Toro 7-3245

Steering Tube Incl. Ref. No. 15

$

$

Currently unavailable

20

Toro 3274-11

Screw

$

$

Not available

21

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

22

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

23

Toro 302-44

Grease Fitting

$

$

Currently unavailable

24

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

25

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 7-0468

Pinion Gear

$

$

Currently unavailable

27

Toro 7-3664

Steering Gear

$

$

Not available

28

Toro 32140-51

Sems Screw

$

$

Not available

29

Toro 32121-72

1/4 X 2 DRIVELOK PIN

$

$

Not available

30

Toro 7-0467

Steering Shaft

$

$

Currently unavailable

31

Toro 7-0407

Steering Gear Support

$

$

Currently unavailable

32

Toro 32140-45

Screw-HH

$5.99

$

Usually ships in 3-6 days

0

33

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

34

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

35

Toro 7-0408

Steering W.A.

$

$

Currently unavailable

36

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

37

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

38

Toro 7-0411

Steering Rod

$

$

Not available

39

Toro 7-0698

Spacer

$

$

Currently unavailable

40

Toro 7-0511

Pin
(Superseded to 283-2)

$13.99

$

In Stock, only 2 left!

0

41

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

42

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

44

Toro 7-0131

Washer
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

45

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

46

Toro 7-0512

Quadrant

$

$

Not available

47

Toro 7-0516

Lift Lock

$

$

Currently unavailable

48

Toro 7-3953

Clutch Rod

$

$

Not available

49

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

50

Toro 7-0052

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

51

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

52

Toro 7-0514

Spring

$

$

Not available

53

Toro 7-0515

Lift Rod

$

$

Currently unavailable

54

Toro 7-0513

Lower Handle

$

$

Currently unavailable

55

Toro 7-0510

Handle Grip

$

$

Currently unavailable

56

Toro 7-0508

Cap

$

$

Currently unavailable

57

Toro 3290-300

Wavy Washer

$

$

Currently unavailable
