55302 (950) - Toro Suburban Lawn Tractor (SN: 000000001 - 000999999) (1970) SEAT AND FENDER ASSEMBLY Parts Diagram

Suburban Lawn Tractor

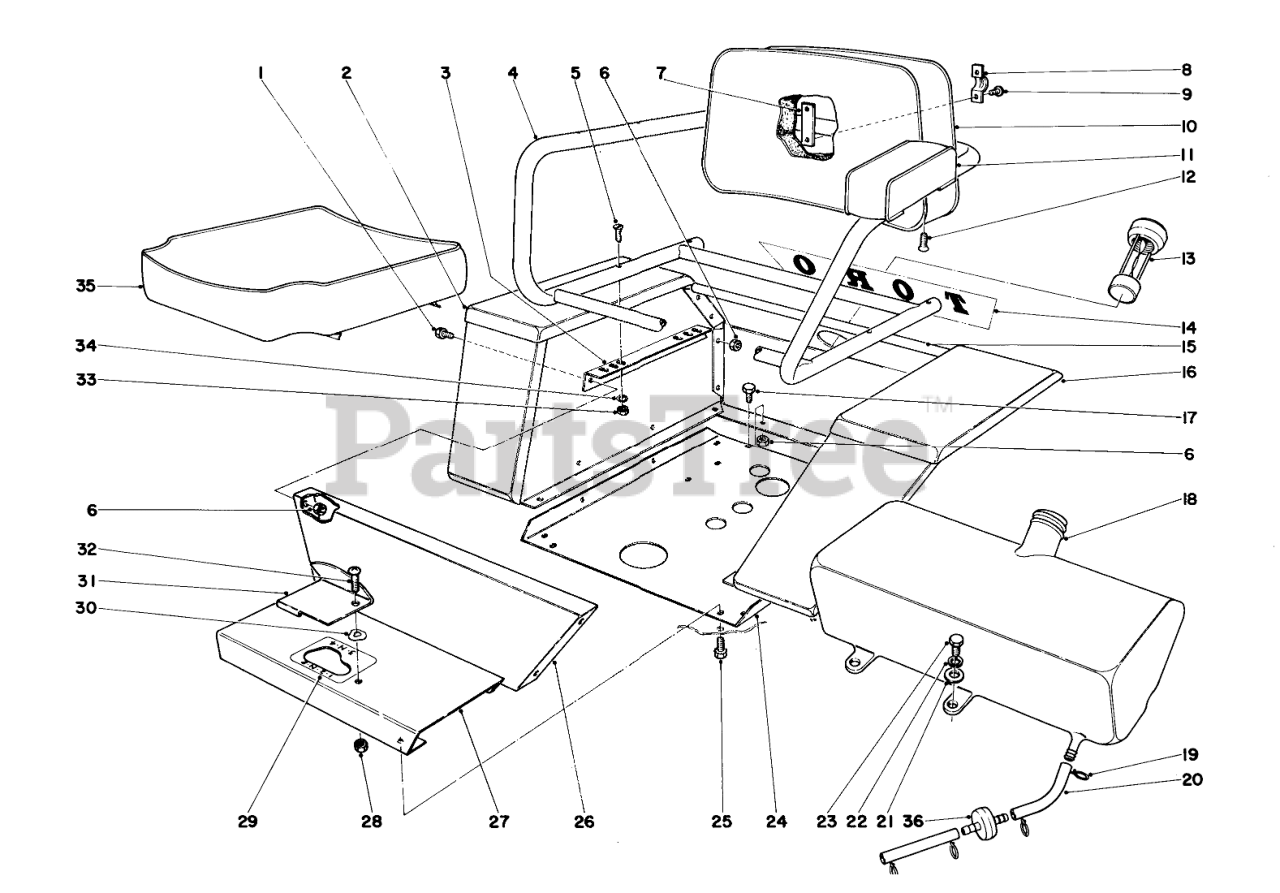

SEAT AND FENDER ASSEMBLY Parts Diagram

  • Title
1

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

2

Toro 7-3280

Fender R.H.

$

$

Currently unavailable

3

Toro 7-3267

Brace Fender

$

$

Currently unavailable

4

Toro 7-3341

Frame Seat

$

$

Currently unavailable

5

Toro 32108-8

Flat Head Screw

$

$

Currently unavailable

6

32152-1S

Nut

$

$

Not available

7

Toro 351-28

Plate Clamp

$

$

Currently unavailable

8

Toro 351-27

U-Clamp

$

$

Currently unavailable

9

$1.49

$

Usually ships in 3-6 days

0

10

Toro 7-3356

Backrest Seat

$

$

Currently unavailable

11

Toro 7-3355

Arm Rest Seat

$

$

Currently unavailable

12

Toro 32108-8

Flat Head Screw

$

$

Currently unavailable

13

Toro 7-3945

Gas Gauge

$

$

Currently unavailable

14

Toro 7-3934

Decal Seat

$

$

Currently unavailable

15

Toro 7-3980

Rear Fender

$

$

Currently unavailable

16

Toro 7-3278

Fender L.H.

$

$

Currently unavailable

17

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

18

Toro 7-3910

Gas Tank

$

$

Not available

19

Toro 241-26

Hose Clamp

$

$

Currently unavailable

20

Toro 7-2700

Gas Hose

$

$

Currently unavailable

21

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

23

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 7-3966

Base Fender Rear

$

$

Currently unavailable

25

Toro 32104-84S

Self Tapping Screw

$

$

Currently unavailable

26

Toro 7-3258

Fender Front

$

$

Currently unavailable

27

Toro 7-3810

Shift Pattern

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Toro 7-3821

Decal Shift Pattern

$

$

Currently unavailable

30

Toro 3290-234

Lynch Pin

$

$

Currently unavailable

31

Toro 7-3812

Tab Lock out

$

$

Currently unavailable

32

$

$

Currently unavailable

33

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

34

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

35

Toro 7-3354

Cushion Seat

$

$

Currently unavailable

36

Toro 304-92

Filter Gas Tank

$

$

Currently unavailable
