55302 (950) - Toro Suburban Lawn Tractor (SN: 000000001 - 000999999) (1970) REAR AXLE ASSEMBLY Parts Diagram

Suburban Lawn Tractor

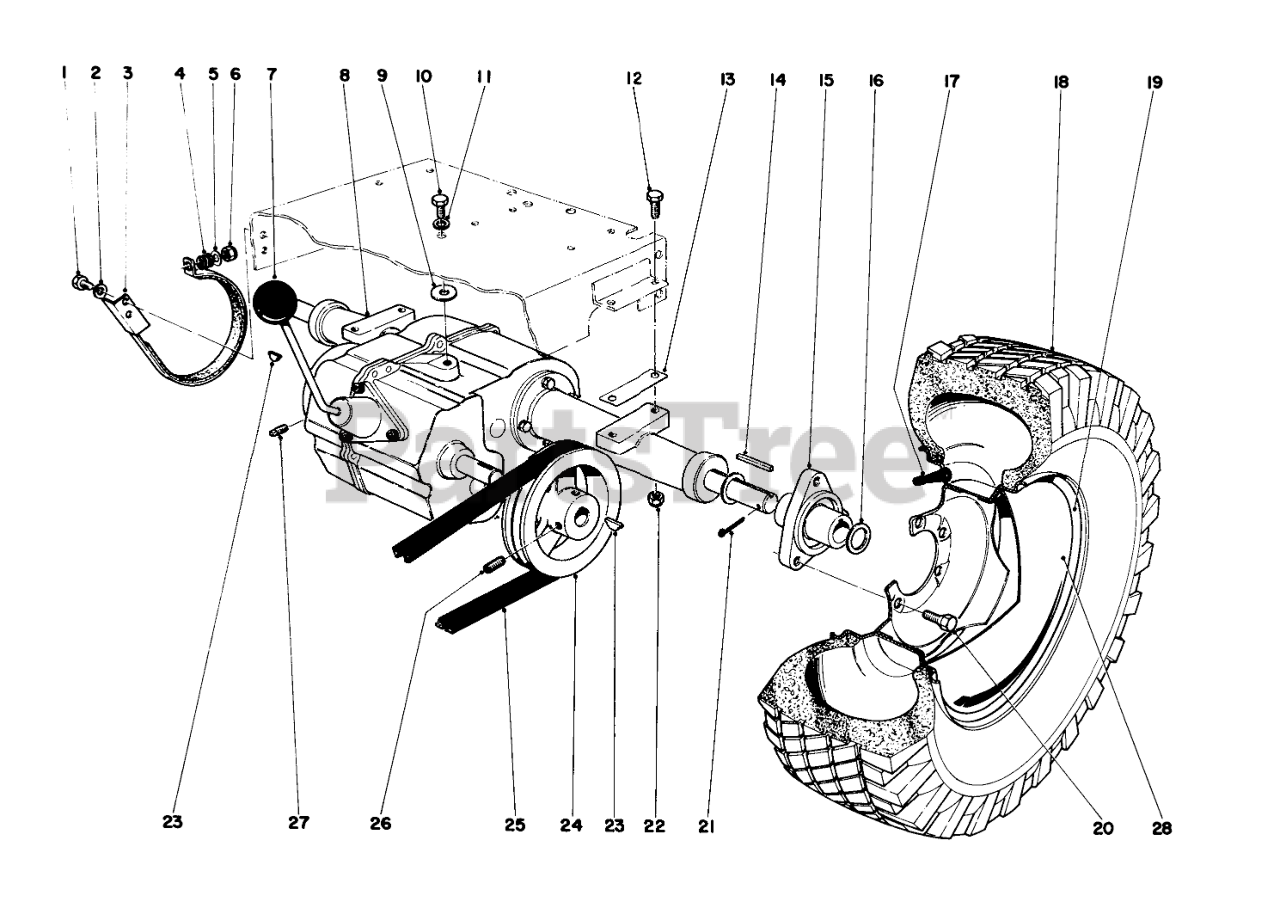

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 7-3646

Brake Band Assy.

$

$

Currently unavailable

4

Toro 7-3816

Spring

$

$

Currently unavailable

5

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

32152-1S

Nut

$

$

Not available

7

Toro 233-21S

Knob

$

$

Currently unavailable

8

Toro 7-0477

Transmission Complete

$

$

Currently unavailable

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

12

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 7-0461

Axle Pad

$

$

Currently unavailable

14

Toro 7-0238

KEY-SQUARE

$6.99

$

In Stock, only 2 left!

0

15

Toro 7-0480

Wheel Hub

$

$

Currently unavailable

16

Toro 7-0481

Washer

$

$

Currently unavailable

17

Toro 232-24

STEM-VALVE

$5.49

$

Usually ships in 3-6 days

0

18

Toro 231-41

Tire
(Superseded to 231-101)

$204.99

$

Usually ships in 3-6 days

0

19

Toro 217-62S

Rear Wheel

$

$

Currently unavailable

20

Toro 7-1418

Tapered Capscrew

$

$

Not available

21

Toro 3272-30

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

22

Toro 32152-2S

Nut

$

$

Currently unavailable

23

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

24

Toro 7-0478

Pulley Transmission

$

$

Currently unavailable

25

Toro 7-0551

V-BELT, TRANS (SET OF 2)

$

$

Not available

26

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

27

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

28

Toro 217-78

Hub Cap 960

$

$

Currently unavailable

Toro 7-0554

Wheel Assy.

$

$

Currently unavailable
