55302 (950) - Toro Suburban Lawn Tractor (SN: 000000001 - 000999999) (1970) DASH PANEL AND WIRING DIAGRAM Parts Diagram

Suburban Lawn Tractor

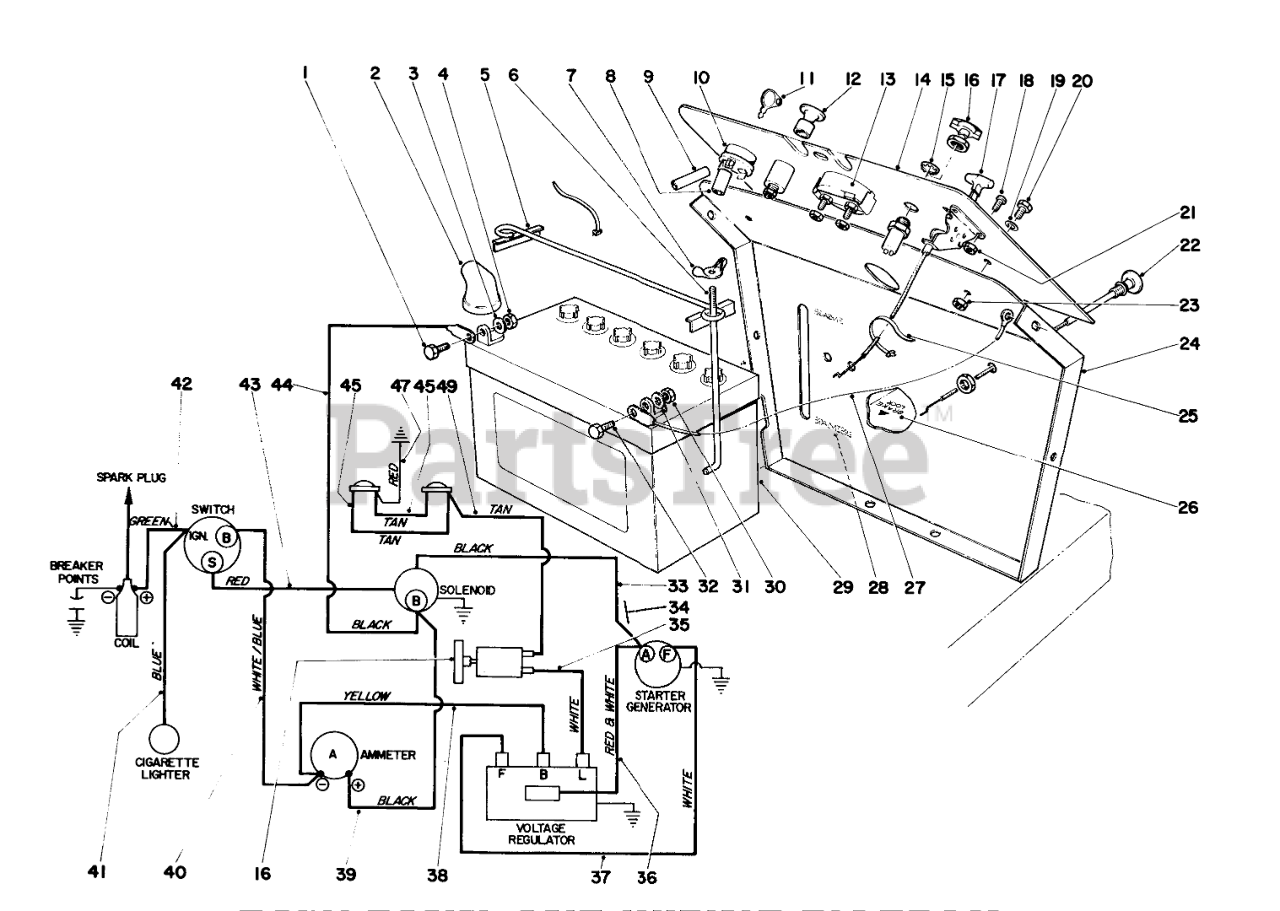

DASH PANEL AND WIRING DIAGRAM Parts Diagram

  • Title

1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

218-331S

Battery Boot

$

$

Not available

3

3256-16S

Washer

$

$

Not available

4

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

5

Toro 7-0534

Battery Clamp

$

$

Currently unavailable

6

Toro 7-3328

BATTERY BOLT

$

$

Currently unavailable

7

Toro 32103-12

NUT-WING

$1.49

$

In Stock, only 3 left!

0

8

Toro 7-3597

Insulator

$

$

Currently unavailable

9

Toro 7-3635

Insulator

$

$

Currently unavailable

10

Toro 7-3951

Starter Switch

$

$

Currently unavailable

11

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

12

Toro 7-3952

Cigarette Lighter Assy.

$

$

Currently unavailable

13

Toro 7-6130

Ammeter
(Superseded to 33-0990)

$

$

Not available

14

Toro 7-3856

Dash Panel

$

$

Currently unavailable

15

Toro 2410-22S

Plug Button 950

$

$

Currently unavailable

16

Toro 7-1780

Light Switch

$

$

Currently unavailable

17

Toro 7-3948

Throttle Control

$

$

Currently unavailable

18

Toro 32122-43S

Machine Screw

$

$

Currently unavailable

19

3256-16S

Washer

$

$

Not available

20

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 32149-6

NUT-KEPS

$0.99

$

Usually ships in 3-6 days

0

22

Toro 7-3947

Choke Control

$

$

Not available

23

Toro 32152-4S

Nut

$

$

Currently unavailable

24

Toro 7-3911

Rear Hood Support

$

$

Currently unavailable

25

Toro 7-3123

Cable Tie

$

$

Not available

26

Toro 7-3937

Decal Brake

$

$

Currently unavailable

27

Toro 7-3964

Wire

$

$

Currently unavailable

28

Toro 7-3991

Decal Engage & Disengage

$

$

Currently unavailable

29

Toro 239-14S

Battery

$

$

Currently unavailable

30

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

31

Toro 7-0024

Washer

$

$

Currently unavailable

32

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 7-3954

Wire

$

$

Currently unavailable

34

Toro 7-3944

Wiring Harness

$

$

Currently unavailable

35

Toro 7-0321

Blue Wire

$

$

Currently unavailable

36

Toro 7-3955

Wire

$

$

Currently unavailable

37

Toro 7-3956

Wire

$

$

Currently unavailable

38

Toro 7-3962

Wire

$

$

Currently unavailable

39

Toro 7-3963

Wire

$

$

Currently unavailable

40

Toro 7-3960

Wire

$

$

Currently unavailable

41

Toro 7-3958

Wire

$

$

Currently unavailable

42

Toro 7-3961

Wire

$

$

Currently unavailable

43

Toro 7-3957

Wire

$

$

Currently unavailable

44

Toro 7-3964

Wire

$

$

Currently unavailable

45

Toro 7-3538

Wire 960

$

$

Currently unavailable

47

Toro 7-4327

Wire 12 H.P.

$

$

Currently unavailable

49

Toro 7-2072

Wire 960

$

$

Currently unavailable
