553 RBX - Husqvarna Brush Cutter (2012-08) CYLINDER PISTON Parts Diagram

Brush Cutter

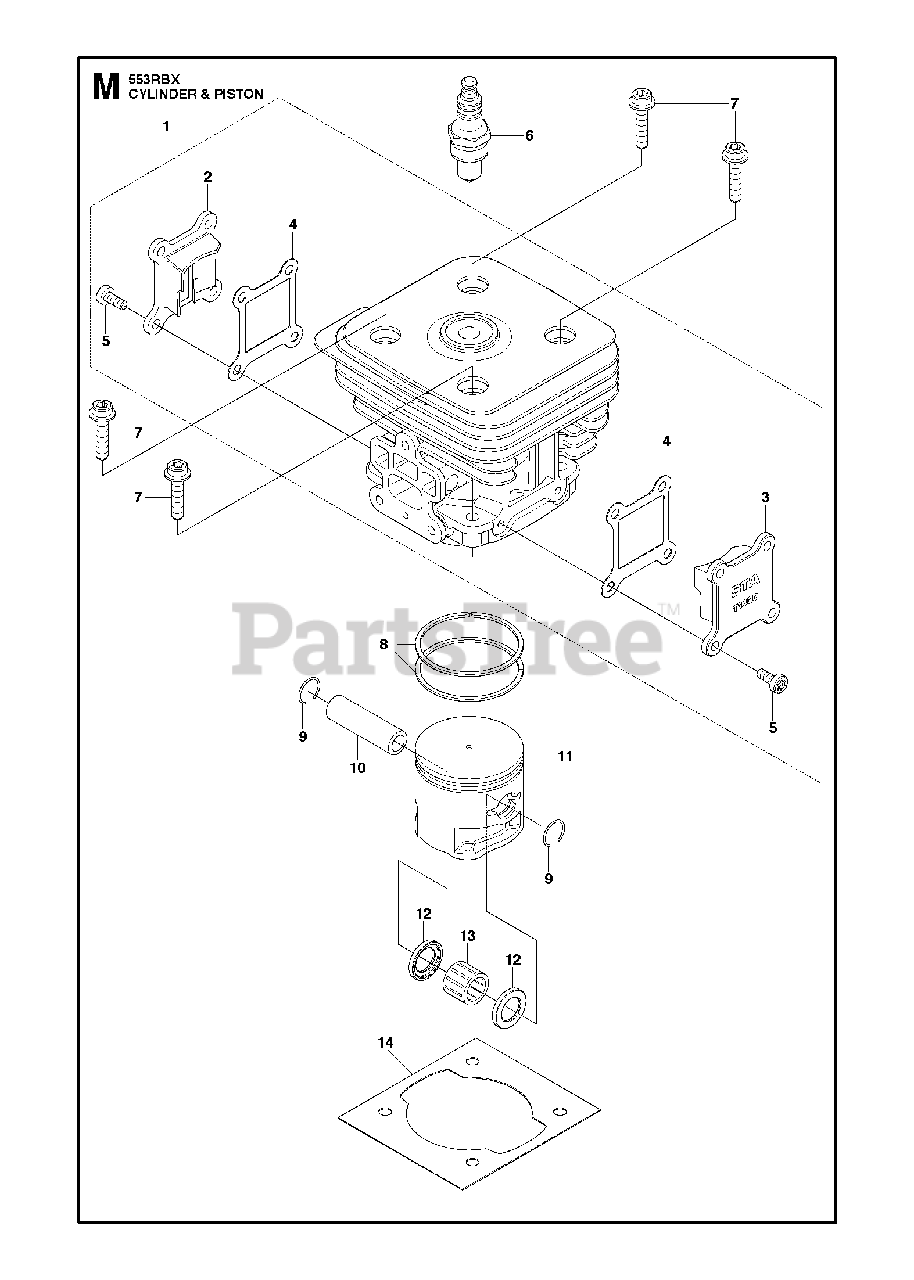

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 521634201

$

$

Currently unavailable

2

Husqvarna 521634501

Note: . 1

$

$

Currently unavailable

3

Husqvarna 521634401

Note: . 1

$

$

Currently unavailable

4

Husqvarna 521634601

GASKET, TR

Note: . 1

$

$

Not available

5

Husqvarna 521515601

SCREW
(Superseded to 504119201)

Note: . 1

$2.49

$

In Stock, Qty 8

0

6

Husqvarna 521233401

PLUG CMR7H
(Superseded to 506615101)

$4.46

$

Usually ships in 3-10 days

0

7

Husqvarna 506616001

BOLT TORX
(Superseded to 506745201)

$5.99

$

In Stock, only 3 left!

0

8

Husqvarna 521745501

Ring

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 521057201

RING, SNAP
(Superseded to 502849801)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 516998001

PIN, PISTON
(Superseded to 513947801)

$9.99

$

In Stock, Qty 11

0

11

Husqvarna 521636201

PISTON

$

$

Not available

12

Husqvarna 516815001

WASHER, THRUST
(Superseded to 513622401)

$

$

Not available

13

Husqvarna 516313401

BEARING (RPLS 335041410)
(Superseded to 502849901)

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 521634301

GASKET

$

$

Not available
